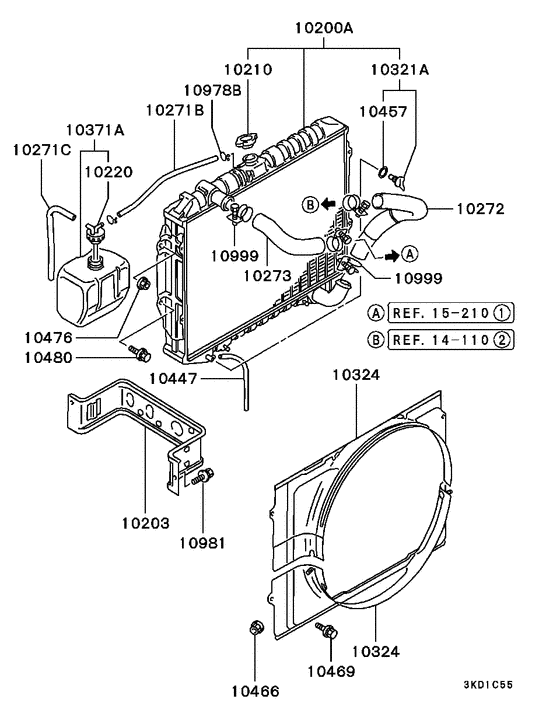

Radiator,hose & condenser tank (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- -
- Sales region
- EUR
- Note
- SEMI-HI-RF WAGON/PART TIME 4WD,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- SEMI-HI-RF WAGO
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MB660082 RADIATOR ASSY |
MB660082 |
US $1,569.60 |
||
|
10203
|
10203
MB660470 BRACKET,RADIATOR CONDENSER TANK |
MB660470 |
US $32.56 |
||
|
10210
|
10210
MB660735 CAP, RADIATOR |
MB660735 |
from US $21.10 |
||
|
10210
|
10210
MB845036
CAP, RADIATOR
|
MB845036 |
— | ||
| replacement | |||||
|
10210
|
10210
MB660735 CAP, RADIATOR |
MB660735 |
from US $21.10 |
||
|
10220
|
10220
MB598036 CAP, RADIATOR CONDENSER TANK |
MB598036 |
from US $13.30 |
||
|
10271B
|
10271B
MS600623 HOSE, RADIATOR CONDENSER TANK7x2000 |
MS600623 |
from US $12.03 |
||
|
10271C
|
10271C
MB660535 HOSE, RADIATOR CONDENSER TANK |
MB660535 |
US $13.54 |
||
|
10272
|
10272
MB221723
HOSE,RADIATOR,LWR
|
MB221723 |
— | ||
|
10273
|
10273
MB221722
HOSE,RADIATOR,UPR
|
MB221722 |
— | ||
|
10321A
|
10321A
MB008067
PLUG ASSY, RADIATOR
|
MB008067 |
— | ||
| replacement | |||||
|
10321A
|
10321A
MR508982 PLUG ASSY, RADIATOR |
MR508982 |
from US $6.22 |
||
|
10324
|
10324
MB660093
SHROUD,COOLING FAN
|
MB660093 |
— | ||
|
10324
|
10324
MB660094
SHROUD,COOLING FAN
|
MB660094 |
— | ||
|
10371A
|
10371A
MB605260 TANK ASSY, RADIATOR CONDENSER |
MB605260 |
from US $21.76 |
||
|
10447
|
10447
MS610314 HOSE, RADIATOR CONDENSER TANK7x2000 |
MS610314 |
US $48.56 |
||
|
10457
|
10457
MB007701 O-RING, RADIATORD=5 |
MB007701 |
from US $3.32 |
||
|
10466
|
10466
MS440134 NUT, CARBFlange,8 |
MS440134 |
from US $1.11 |
||
|
10469
|
10469
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
10476
|
10476
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
10480
|
10480
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
10978B
|
10978B
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.33 |
||
|
10981
|
10981
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
10999
|
10999
MA609112 CLAMP, RADIATOR PIPINGD=44 |
MA609112 |
from US $4.13 |
||
|
14 110
|
Water pump
14 110
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
