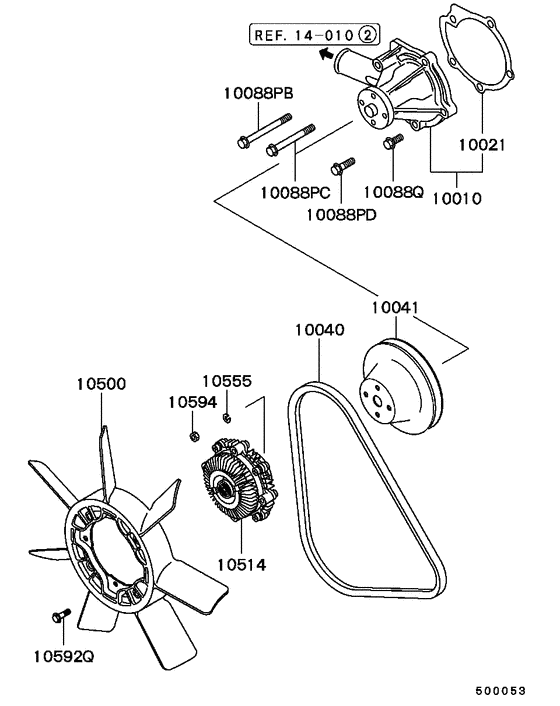

Water pump (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- -
- Sales region
- EUR
- Note
- SEMI-HI-RF WAGON/PART TIME 4WD,5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- SEMI-HI-RF WAGO
- body
- LONG WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10010
|
10010
MD997203
WATER PUMP KIT
|
MD997203 |
— | ||
|
10021
|
10021
MD021495 GASKET, WATER PUMP |
MD021495 |
US $6.22 |
||
|
10021
|
10021
MD149375 GASKET, WATER PUMP |
MD149375 |
US $7.99 |
||
|
10040
|
10040
MD025522 BELT,ALTERNATOR & OTHERS |
MD025522 |
from US $17.22 |
||
|
10041
|
10041
MD075187 PULLEY, WATER PUMPV-ditch |
MD075187 |
US $44.40 |
||
|
10088PB
|
10088PB
MS101249 BOLT, TIMING CHAIN CASEFlange,8x88 |
MS101249 |
US $3.11 |
||
|
10088PC
|
10088PC
MS101247 BOLT, TIMING POWER TRAIN CASEFlange,8x78 |
MS101247 |
US $3.11 |
||
|
10088PD
|
10088PD
MS101239 BOLT, WATER PUMPFlange,8x23 |
MS101239 |
US $2.22 |
||
|
10088Q
|
10088Q
MF140028 BOLT, ENG MECHANICAL GOVERNORFlange,8x28 |
MF140028 |
from US $1.74 |
||
|
10500
|
10500
MD011149 FAN, COOLING410x7 |
MD011149 |
US $76.96 |
||
|
10514
|
10514
MD104576
CLUTCH,COOLING FAN
|
MD104576 |
— | ||
|
10555
|
10555
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
10592Q
|
10592Q
MF140210 BOLT, CYLINDER HEADFlange,6x28 |
MF140210 |
from US $1.64 |
||
|
10594
|
10594
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
