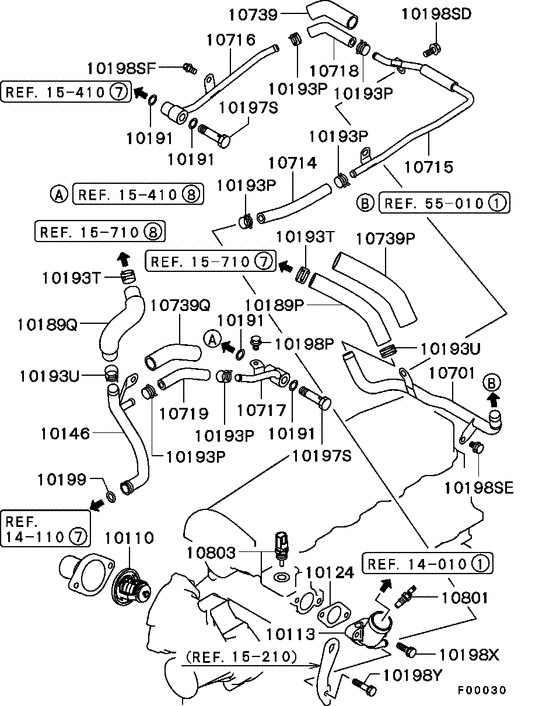

Water pipe & thermostat (0107.1-) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2000 - 2006
- Sales region
- EUR
- Note
- GLS(NSS4),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10110
|
10110
MD335170 THERMOSTAT KIT82 |
MD335170 |
from US $20.03 |
||
|
10113
|
10113
1305A143 FITTING,COOLING WATER OUTLET HOSE |
1305A143 |
US $37.23 |
||
|
10113
|
10113
MD307771 FITTING, COOLING WATER OUTLET HOSE |
MD307771 |
US $106.02 |
||
|
10113
|
10113
MD367798
FITTING,COOLING WATER OUTLET HOSE
|
MD367798 |
— | ||
| replacement | |||||
|
10113
|
10113
1305A143 FITTING,COOLING WATER OUTLET HOSE |
1305A143 |
US $37.23 |
||
|
10124
|
10124
MD303264 GASKET, COOLING WATER OUTLET HOSE FITTING |
MD303264 |
from US $3.04 |
||
|
10146
|
10146
MD377705
PIPE,THERMOSTAT WATER BY-PASS
|
MD377705 |
— | ||
|
10189P
|
10189P
MD373814 HOSE,COOLING WATER LINE |
MD373814 |
US $4.06 |
||
|
10189Q
|
10189Q
MD377706
HOSE,COOLING WATER LINE
|
MD377706 |
— | ||
|
10191
|
10191
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
10193P
|
10193P
MS660242 CLIP, COOLING WATER LINE14.8 |
MS660242 |
from US $1.58 |
||
|
10193T
|
10193T
MS660246 CLIP, VAPORIZER19.8 |
MS660246 |
US $2.37 |
||
|
10193T
|
10193T
MS660247 CLIP, COOLING WATER LINED=20.8 |
MS660247 |
US $2.37 |
||
|
10193U
|
10193U
MS660248 CLIP, T/CD=23 |
MS660248 |
from US $1.27 |
||
|
10197S
|
10197S
MD374299 EYEBOLT,COOLING WATER LINE |
MD374299 |
US $11.27 |
||
|
10198P
|
10198P
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
10198SD
|
10198SD
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198SD
|
10198SD
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
10198SE
|
10198SE
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
10198SF
|
10198SF
MD192543 BOLT, EXHAUST MANIFOLDFlange,8x14 |
MD192543 |
US $2.52 |
||
|
10198X
|
10198X
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
10198Y
|
10198Y
MF240056 BOLTWasher assembled,8x28 |
MF240056 |
from US $0.88 |
||
|
10199
|
10199
MD030763 O-RING, COOLING WATER LINE |
MD030763 |
from US $2.26 |
||
|
10701
|
10701
MD371212
PIPE,WATER PUMP WATER BY-PASS
|
MD371212 |
— | ||
|
10701
|
10701
MD377989 PIPE,WATER PUMP WATER BY-PASS |
MD377989 |
US $36.31 |
||
|
10714
|
10714
MD120466 HOSE, COOLING WATER LINE9x140 |
MD120466 |
from US $7.84 |
||
|
10715
|
10715
MD305970 PIPE, T/C WATER FEED HOSE TO HOSE |
MD305970 |
from US $44.34 |
||
|
10716
|
10716
MD308431 PIPE, T/C WATER RETURN |
MD308431 |
from US $62.87 |
||
|
10716
|
10716
MD374298 PIPE,T/C WATER RETURN |
MD374298 |
US $21.37 |
||
|
10717
|
10717
MD307517 PIPE, T/C WATER FEED |
MD307517 |
from US $40.33 |
||
|
10717
|
10717
MD377984
PIPE,T/C WATER RETURN
|
MD377984 |
— | ||
|
10718
|
10718
MD081048 HOSE, COOLING WATER LINE9x95 |
MD081048 |
from US $2.71 |
||
|
10718
|
10718
MD147861 HOSE, T/C WATER FEED |
MD147861 |
from US $4.06 |
||
|
10719
|
10719
MD081048 HOSE, COOLING WATER LINE9x95 |
MD081048 |
from US $2.71 |
||
|
10719
|
10719
MD306885 HOSE, COOLING WATER LINE9x75 |
MD306885 |
from US $2.91 |
||
|
10739
|
10739
MD371236
PROTECTOR,T/C WATER HOSE
|
MD371236 |
— | ||
|
10739
|
10739
MD377992
PROTECTOR,T/C WATER HOSE
|
MD377992 |
— | ||
|
10739P
|
10739P
MD373815
PROTECTOR,T/C WATER HOSE
|
MD373815 |
— | ||
|
10739Q
|
10739Q
MD359720 PROTECTOR, ENG OIL COOLER HOSE |
MD359720 |
US $1.50 |
||
|
10801
|
10801
MD050214 GAUGE UNIT, WATER TEMPERATURE |
MD050214 |
from US $30.73 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
ME202053 SENSOR UNIT, WATER TEMPERATURE |
ME202053 |
from US $52.26 |
||
|
