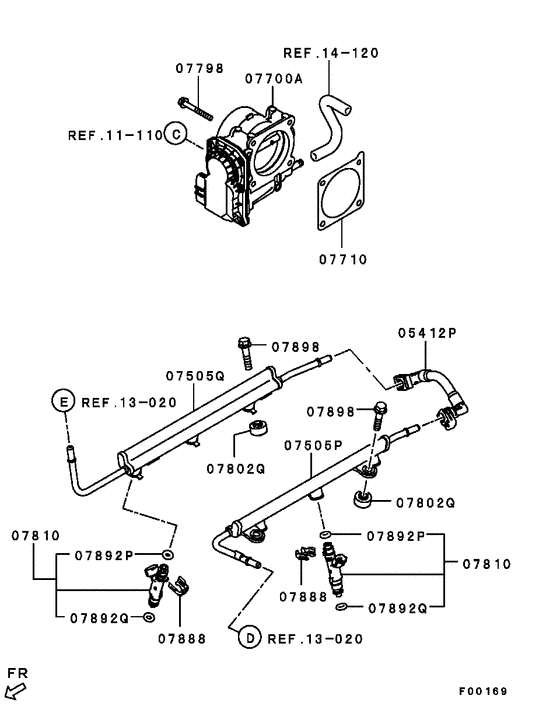

Injector & throttle body (ALL) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2006 - 2008
- Sales region
- EUR
- Note
- GLS(NSS4/EURO4),S5FA/T RHD
- transmission
- S5FA/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05412P
|
05412P
1465A166 HOSE, FUEL HIGH PRESSURE |
1465A166 |
US $31.08 |
||
|
07505P
|
07505P
1465A165 PIPE, FUEL DELIVERY |
1465A165 |
US $75.48 |
||
|
07505Q
|
07505Q
1465A164 PIPE, FUEL DELIVERY |
1465A164 |
US $75.48 |
||
|
07700A
|
07700A
1450A098 Throttle Body Assy5010-16f80 |
1450A098 |
from US $930.18 |
||
|
07710
|
07710
MN158296 GASKET, THROTTLE BODY |
MN158296 |
from US $6.13 |
||
|
07798
|
07798
MF140217 BOLT, CYLINDER HEADFlange,6x50 |
MF140217 |
from US $1.38 |
||
|
07798
|
07798
MF140417 BOLT, THROTTLE BODYFlange,6x50 |
MF140417 |
US $2.87 |
||
|
07802Q
|
07802Q
MD095402 INSULATOR, FUEL DELIVERY PIPE |
MD095402 |
from US $1.38 |
||
|
07810
|
07810
1465A069 INJECTOR KIT, FUEL |
1465A069 |
from US $154.03 |
||
|
07888
|
07888
1465A093 SUPPORT, FUEL INJECTOR |
1465A093 |
US $1.78 |
||
|
07892P
|
07892P
1465A094 O-RING, FUEL INJECTOR3.51 |
1465A094 |
from US $2.40 |
||
|
07892Q
|
07892Q
1465A116
O-RING, FUEL INJECTOR
|
1465A116 |
— | ||
| replacement | |||||
|
07892Q
|
07892Q
1465A308 O-RING, FUEL INJECTOR3.05 |
1465A308 |
from US $3.16 |
||
|
07892Q
|
07892Q
1465A308 O-RING, FUEL INJECTOR3.05 |
1465A308 |
from US $3.16 |
||
|
07898
|
07898
MF140031 BOLT, CYLINDER HEADFlange,8x35 |
MF140031 |
from US $1.46 |
||
|
