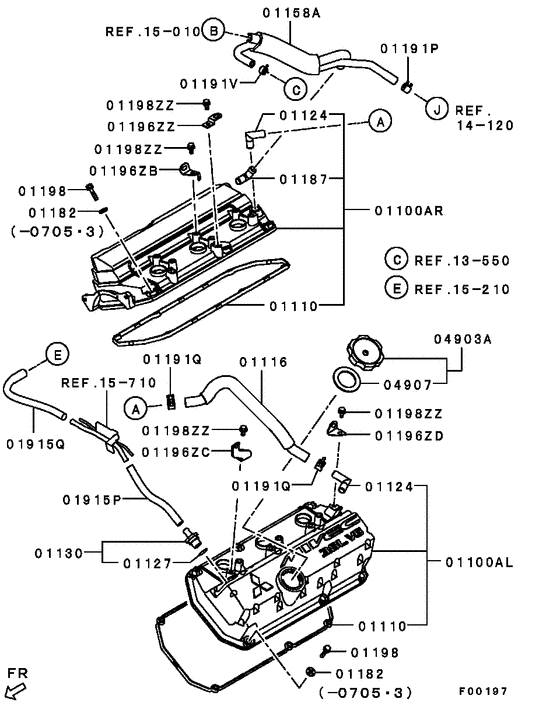

Rocker cover (ALL (ROCKER COVER)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2006 - 2008
- Sales region
- EUR
- Note
- GLS(NSS4/EURO4),S5FA/T RHD
- transmission
- S5FA/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01100AL
|
01100AL
1035A695 COVER ASSY, ROCKER, LH |
1035A695 |
US $172.37 |
||
|
01100AR
|
01100AR
1035A822 COVER ASSY, ROCKER, RH |
1035A822 |
US $172.37 |
||
|
01110
|
01110
MN137773 GASKET, ROCKER COVER |
MN137773 |
from US $16.42 |
||
|
01116
|
01116
1035A716 HOSE, ROCKER COVER BREATHER CROSS-OVER |
1035A716 |
US $32.15 |
||
|
01124
|
01124
MD041481 JOINT, ROCKER COVER BREATHER HOSE |
MD041481 |
US $6.98 |
||
|
01127
|
01127
1035A419 O-RING, ROCKER COVER |
1035A419 |
from US $1.15 |
||
|
01130
|
01130
1035A422 VALVE, PCV |
1035A422 |
from US $26.58 |
||
|
01158A
|
01158A
1035A799 HOSE ASSY, ROCKER COVER BREATHER & WATER |
1035A799 |
from US $37.03 |
||
|
01182
|
01182
MD372347 WASHER, ROCKER COVER6.4 |
MD372347 |
from US $2.32 |
||
|
01187
|
01187
MD372313
NIPPLE, ROCKER COVER
|
MD372313 |
— | ||
|
01191P
|
01191P
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
01191Q
|
01191Q
MS660220 CLIP, ROCKER COVER17 |
MS660220 |
from US $1.33 |
||
|
01191V
|
01191V
MS660225 CLIP, ROCKER COVER12.5 |
MS660225 |
from US $1.09 |
||
|
01196ZB
|
01196ZB
8558A529 BRACKET, ROCKER COVER |
8558A529 |
US $4.14 |
||
|
01196ZC
|
01196ZC
8558A381 BRACKET, ROCKER COVER |
8558A381 |
US $5.77 |
||
|
01196ZD
|
01196ZD
MR420234 BRACKET, INLET MANIFOLD |
MR420234 |
US $1.92 |
||
|
01196ZZ
|
01196ZZ
MD349281 BRACKET, EMISSION CONTROL EQUIP |
MD349281 |
US $2.60 |
||
|
01198
|
01198
MF244830 BOLT, ENG RR PLATE |
MF244830 |
US $2.19 |
||
|
01198
|
01198
MF247870 BOLT, A/C PIPING6x30 |
MF247870 |
US $1.48 |
||
|
01198ZZ
|
01198ZZ
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.68 |
||
|
01915P
|
01915P
1035A801 HOSE, ROCKER COVER PCV |
1035A801 |
from US $5.91 |
||
|
01915Q
|
01915Q
1035A802 HOSE, ROCKER COVER PCV |
1035A802 |
US $10.53 |
||
|
04903A
|
04903A
MD372181
CAP ASSY, ENG OIL FILLER
|
MD372181 |
— | ||
| replacement | |||||
|
04903A
|
04903A
1250A015 CAP ASSY, ENG OIL FILLER |
1250A015 |
from US $12.13 |
||
|
04907
|
04907
MD311638 GASKET, ENG OIL FILLER CAP |
MD311638 |
from US $1.50 |
||
|
