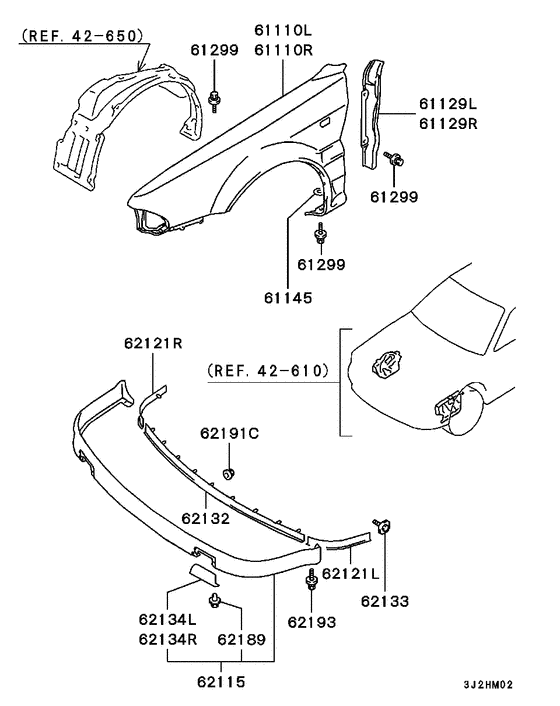

Fender & front end cover Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61110L
|
61110L
AW329049 FENDER, FR LH |
AW329049 |
US $844.48 |
||
|
61110R
|
61110R
AW329050 FENDER, FR RH |
AW329050 |
US $844.48 |
||
|
61129L
|
61129L
AW324183 INSULATOR, FR FENDER, LH |
AW324183 |
US $99.90 |
||
|
61129R
|
61129R
AW324184 INSULATOR, FR FENDER, RH |
AW324184 |
US $99.90 |
||
|
61145
|
61145
MB103312 SEAL, FR FENDER |
MB103312 |
US $2.96 |
||
|
61299
|
61299
MS100222 BOLT, RESISTORFlange,6x14 |
MS100222 |
from US $0.57 |
||
|
62115
|
62115
13367GA1
PANEL,AIR DAM SKIRT
|
13367GA1 |
— | ||
|
62115
|
62115
13367GB2
PANEL,AIR DAM SKIRT
|
13367GB2 |
— | ||
|
62115
|
62115
13367GB6
PANEL,AIR DAM SKIRT
|
13367GB6 |
— | ||
|
62115
|
62115
13367GG1
PANEL,AIR DAM SKIRT
|
13367GG1 |
— | ||
|
62115
|
62115
13367GG3
PANEL,AIR DAM SKIRT
|
13367GG3 |
— | ||
|
62115
|
62115
13367GR4
PANEL,AIR DAM SKIRT
|
13367GR4 |
— | ||
|
62115
|
62115
13367GS1
PANEL,AIR DAM SKIRT
|
13367GS1 |
— | ||
|
62115
|
62115
13367GS4
PANEL,AIR DAM SKIRT
|
13367GS4 |
— | ||
|
62115
|
62115
13367GW1
PANEL,AIR DAM SKIRT
|
13367GW1 |
— | ||
|
62121L
|
62121L
MB656545
PLATE, AIR DAM SKIRT PANEL, LH
|
MB656545 |
— | ||
|
62121R
|
62121R
MB656546
PLATE, AIR DAM SKIRT PANEL, RH
|
MB656546 |
— | ||
|
62132
|
62132
MB656543
PLATE, AIR DAM SKIRT PANEL, CTR
|
MB656543 |
— | ||
|
62133
|
62133
MB656549
PLATE, AIR DAM SKIRT PANEL SIDE
|
MB656549 |
— | ||
|
62134L
|
62134L
MB867939
COVER,AIR DAM SKIRT PANEL,LH
|
MB867939 |
— | ||
|
62134R
|
62134R
MB867940
COVER,AIR DAM SKIRT PANEL,RH
|
MB867940 |
— | ||
|
62189
|
62189
MU481219 CLIP, AIR DAM SKIRT PANEL |
MU481219 |
US $3.69 |
||
|
62191C
|
62191C
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
62193
|
62193
MF247550 BOLT, FUEL LINEWasher assembled,6x30 |
MF247550 |
from US $1.15 |
||
|
42 610
|
Loose panel
42 610
|
||||
|
42 650
|
Plugs,covers & shield
42 650
|
||||
