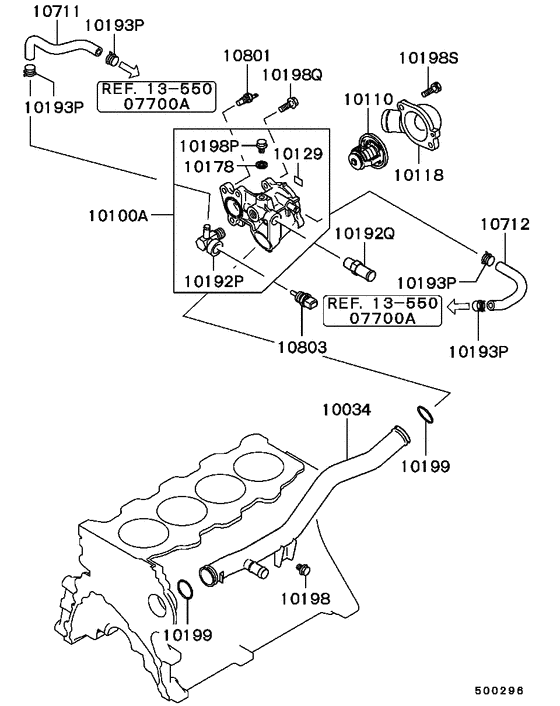

Water pipe & thermostat (9312.1-) Diagram Mitsubishi SPACE RUNNER
- Year
- 1991 - 1999
- Sales region
- EUR
- Note
- GLXI(4WD),5FM/T RHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD178002
PIPE, WATER PUMP INLET
|
MD178002 |
— | ||
|
10100A
|
10100A
MD181615
CASE ASSY, THERMOSTAT
|
MD181615 |
— | ||
| replacement | |||||
|
10100A
|
10100A
MD300734 CASE ASSY, THERMOSTAT |
MD300734 |
US $140.90 |
||
|
10100A
|
10100A
MD300734 CASE ASSY, THERMOSTAT |
MD300734 |
US $140.90 |
||
|
10100A
|
10100A
MD312791 CASE ASSY,THERMOSTAT |
MD312791 |
US $139.12 |
||
|
10110
|
10110
MD170031 THERMOSTAT76.5 |
MD170031 |
from US $22.05 |
||
|
10110
|
10110
MD175746
THERMOSTAT KIT
|
MD175746 |
— | ||
| replacement | |||||
|
10110
|
10110
MD337408 THERMOSTAT KIT82 |
MD337408 |
from US $15.58 |
||
|
10110
|
10110
MD337408 THERMOSTAT KIT82 |
MD337408 |
from US $15.58 |
||
|
10118
|
10118
MD179007 FITTING, COOLING WATER INLET HOSE |
MD179007 |
US $56.09 |
||
|
10129
|
10129
MD178051 LABEL, THERMOSTAT CASE CAUTION |
MD178051 |
US $4.74 |
||
|
10129
|
10129
MD183288
LABEL, THERMOSTAT CASE CAUTION
|
MD183288 |
— | ||
|
10178
|
10178
MD178052 WASHER, COOLING WATER LINE |
MD178052 |
US $2.46 |
||
|
10178
|
10178
MD320544 WASHER, COOLING WATER LINESeal,8.1 |
MD320544 |
from US $1.77 |
||
|
10192P
|
10192P
MD306419
JOINT,COOLING WATER LINE
|
MD306419 |
— | ||
|
10192Q
|
10192Q
MD020631 JOINT, CYLINDER HEAD |
MD020631 |
from US $13.27 |
||
|
10193P
|
10193P
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198P
|
10198P
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198Q
|
10198Q
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
10198S
|
10198S
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
10199
|
10199
MD145371 O-RING, COOLING WATER LINE29 |
MD145371 |
from US $3.10 |
||
|
10711
|
10711
MD169899
HOSE, THROTTLE BODY WATER FEED
|
MD169899 |
— | ||
| replacement | |||||
|
10711
|
10711
MD300848
HOSE, THROTTLE BODY WATER FEED
|
MD300848 |
— | ||
|
10711
|
10711
MD180576 HOSE,THROTTLE BODY WATER FEED |
MD180576 |
US $13.91 |
||
|
10711
|
10711
MD300848
HOSE, THROTTLE BODY WATER FEED
|
MD300848 |
— | ||
|
10712
|
10712
MD115215 HOSE, THROTTLE BODY WATER RETURN8x155 |
MD115215 |
US $14.36 |
||
|
10712
|
10712
MD180577 HOSE, THROTTLE BODY WATER RETURN |
MD180577 |
US $12.45 |
||
|
10712
|
10712
MD309709 HOSE,THROTTLE BODY WATER RETURN |
MD309709 |
US $12.58 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD149338 SENSOR UNIT, WATER TEMPERATURE |
MD149338 |
from US $82.08 |
||
|
10803
|
10803
MD177572
SENSOR UNIT, WATER TEMPERATURE
|
MD177572 |
— | ||
| replacement | |||||
|
10803
|
10803
1308A012 SENSOR UNIT, WATER TEMPERATURE |
1308A012 |
from US $29.64 |
||
|
