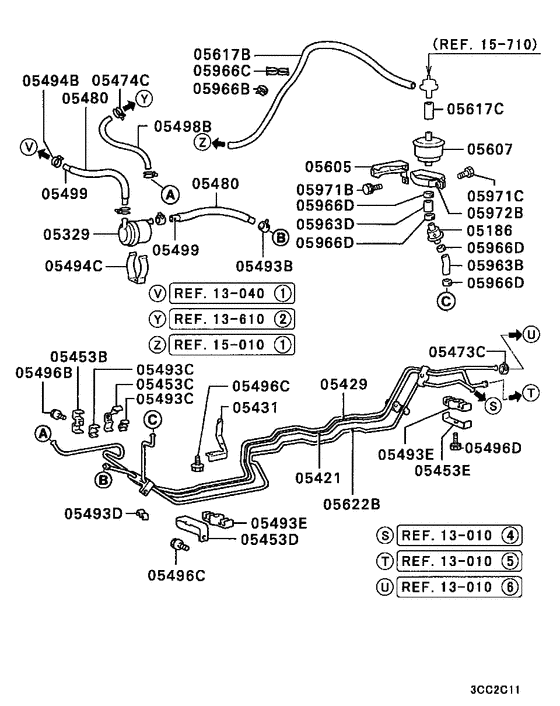

Fuel line & vapor gas control (ALL) Diagram Mitsubishi STARION
- Year
- 1982 - 1983
- Sales region
- Japan
- Note
- X,5FM/T
- transmission
- 5FM/T
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05186
|
05186
MB009102 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB009102 |
US $30.78 |
||
|
05329
|
05329
MB129591 STRAINER, FUEL |
MB129591 |
from US $11.93 |
||
|
05421
|
05421
MB181770 TUBE, FUEL MAIN |
MB181770 |
US $54.76 |
||
|
05429
|
05429
MB181772 TUBE, INJECTION PUMP FUEL RETURN |
MB181772 |
US $48.84 |
||
|
05431
|
05431
MB129567 PROTECTOR, FUEL PIPE |
MB129567 |
US $6.66 |
||
|
05453B
|
05453B
MB181583 SUPPORT, FUEL LINE |
MB181583 |
US $4.44 |
||
|
05453C
|
05453C
MB181584 SUPPORT, FUEL LINE |
MB181584 |
US $4.44 |
||
|
05453D
|
05453D
MB052983
SUPPORT, FUEL LINE
|
MB052983 |
— | ||
|
05453E
|
05453E
MB129884 SUPPORT, FUEL LINE |
MB129884 |
US $3.69 |
||
|
05473C
|
05473C
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05474C
|
05474C
MS660004 CLAMP, FUEL TANK13 |
MS660004 |
US $2.52 |
||
|
05480
|
05480
MB032783
TUBE, FUEL TANK
|
MB032783 |
— | ||
|
05493B
|
05493B
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05493C
|
05493C
MB181581 CLIP, FUEL LINE8,6.1 |
MB181581 |
US $2.87 |
||
|
05493D
|
05493D
MB129999 CLIP, FUEL RETURN LINED=4.6,d=6.2 |
MB129999 |
US $3.97 |
||
|
05493E
|
05493E
MB129930 CLIP, FUEL LINE6-8-4.5-6 |
MB129930 |
US $3.69 |
||
|
05494B
|
05494B
MS661006 CLAMP, ENG SPEED CONTROL EQUIPD=12 |
MS661006 |
US $3.42 |
||
|
05494C
|
05494C
MB129610 CLAMP, FUEL TANK44 |
MB129610 |
US $5.18 |
||
|
05496B
|
05496B
MS240094 BOLT, FUEL TANKWasher assembled,6x12 |
MS240094 |
US $2.60 |
||
|
05496C
|
05496C
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
05496D
|
05496D
MF240028 BOLT, FUEL LINEWasher assembled,6x22 |
MF240028 |
US $1.92 |
||
|
05498B
|
05498B
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05499
|
05499
MS603111 TUBE, FUEL RETURN LINERubber,8x2000 |
MS603111 |
from US $22.76 |
||
|
05605
|
05605
MB075410 BRACKET, FUEL VAPOR CANISTER |
MB075410 |
US $10.36 |
||
|
05607
|
05607
MB075620 CANISTER, FUEL VAPOR |
MB075620 |
US $65.12 |
||
|
05617B
|
05617B
MB075477 HOSE, FUEL VAPOR PURGE |
MB075477 |
US $9.62 |
||
|
05617C
|
05617C
MB008744
HOSE, FUEL VAPOR PURGE
|
MB008744 |
— | ||
|
05622B
|
05622B
MB181774 PIPE, FUEL VAPOR |
MB181774 |
US $50.32 |
||
|
05963B
|
05963B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963D
|
05963D
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05966D
|
05966D
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05971B
|
05971B
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
05971C
|
05971C
MF243628 BOLT, CONNRODWasher assembled,6x25 |
MF243628 |
US $0.55 |
||
|
05972B
|
05972B
MA471704 BAND, FUEL VAPOR CONTROL LINE91 |
MA471704 |
US $14.50 |
||
|
