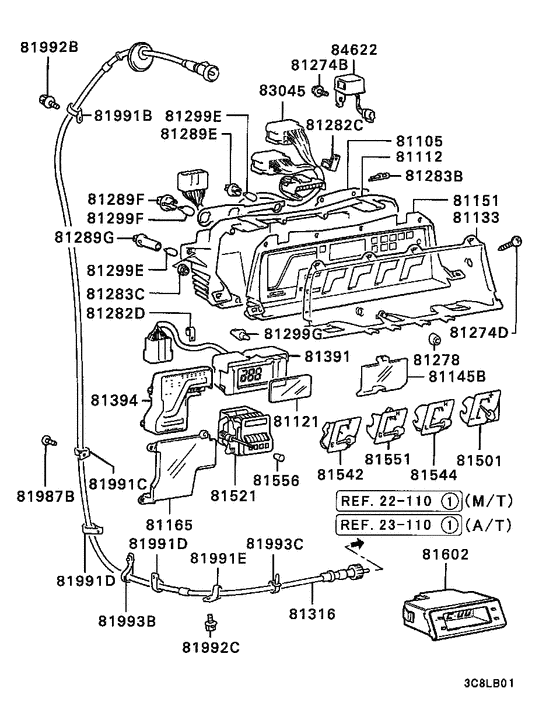

Meter,gauge & clock (-8403.3 LCD METER) Diagram Mitsubishi STARION
- Year
- 1982 - 1984
- Sales region
- Japan
- Note
- GSR-X,4FA/T
- transmission
- 4FA/T
- grade
- GSR-X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
MB280322 BOARD, INSTRUMENT PANEL PRINTED CIRCUIT |
MB280322 |
US $30.34 |
||
|
81105
|
81105
MB280323 BOARD, INSTRUMENT PANEL PRINTED CIRCUIT |
MB280323 |
US $30.34 |
||
|
81112
|
81112
MB280316
CASE, COMBINATION METER
|
MB280316 |
— | ||
|
81112
|
81112
MB281909
CASE, COMBINATION METER
|
MB281909 |
— | ||
|
81121
|
81121
MB280324
COVER, COMBINATION METER BULB
|
MB280324 |
— | ||
|
81121
|
81121
MB326196 COVER, COMBINATION METER BULB |
MB326196 |
US $22.94 |
||
|
81133
|
81133
MB280321
GLASS, COMBINATION METER
|
MB280321 |
— | ||
|
81145B
|
81145B
MB280315
PANEL, COMBINATION METER INDICATOR
|
MB280315 |
— | ||
|
81151
|
81151
MB280318
FRAME, COMBINATION METER
|
MB280318 |
— | ||
|
81151
|
81151
MB280319
FRAME, COMBINATION METER
|
MB280319 |
— | ||
|
81151
|
81151
MB326194
PANEL, COMBINATION METER
|
MB326194 |
— | ||
|
81151
|
81151
MB327000
PANEL, COMBINATION METER
|
MB327000 |
— | ||
|
81165
|
81165
MB280317
PRISM, COMBINATION METER INDICATOR
|
MB280317 |
— | ||
|
81274B
|
81274B
MF351010 SCREW, HOOD LOCKINGWasher assembled,5x16 |
MF351010 |
US $2.60 |
||
|
81274D
|
81274D
MF453034 SCREW, ENG CONTROL EQUIPTapping,5x20 |
MF453034 |
from US $1.63 |
||
|
81274D
|
81274D
MS450158 SCREW, EMISSION SOLENOID VALVETapping,5x20 |
MS450158 |
US $2.07 |
||
|
81278
|
81278
MB170205 GROMMET, INSTRUMENT PANEL METER |
MB170205 |
US $2.07 |
||
|
81282C
|
81282C
MB280326 CLAMP, INSTRUMENT PANEL METER |
MB280326 |
US $3.70 |
||
|
81282D
|
81282D
MB186367 CLAMP, INSTRUMENT PANEL METER |
MB186367 |
US $7.84 |
||
|
81282D
|
81282D
MB186368 CLAMP, INSTRUMENT PANEL METER |
MB186368 |
US $3.70 |
||
|
81283B
|
81283B
MA147258 NUT, SIDE AIR DAMSpring,5 |
MA147258 |
US $1.63 |
||
|
81283C
|
81283C
MB171049 NUT, CRUISE CONTROL ELECTRICALSWasher assembled,5 |
MB171049 |
US $2.96 |
||
|
81289E
|
81289E
MB066067 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB066067 |
from US $2.05 |
||
|
81289F
|
81289F
MB045009 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB045009 |
from US $1.91 |
||
|
81289G
|
81289G
MB259924 SOCKET, INSTRUMENT PANEL METER |
MB259924 |
US $3.55 |
||
|
81299E
|
81299E
MS820083 BULB, GEARSHIFT LINK |
MS820083 |
from US $2.15 |
||
|
81299F
|
81299F
MF820572 BULB, GLOVEBOX |
MF820572 |
from US $1.50 |
||
| replacement | |||||
|
81299F
|
81299F
MB439505
BULB, HEATER CONTROL EQUIP
|
MB439505 |
— | ||
|
81299G
|
81299G
MB259930 BULB, INSTRUMENT PANEL METER14v-1.4w |
MB259930 |
US $2.37 |
||
|
81299G
|
81299G
MB327606
BULB, INSTRUMENT PANEL METER
|
MB327606 |
— | ||
|
81316
|
81316
MB262536 CABLE, SPEEDOMETER1880 |
MB262536 |
US $68.08 |
||
|
81391
|
81391
MB280307 Speedometer |
MB280307 |
US $746.93 |
||
|
81391
|
81391
MB327604 Speedometer |
MB327604 |
US $746.93 |
||
|
81394
|
81394
MB280309 TACHOMETER |
MB280309 |
US $492.13 |
||
|
81501
|
81501
MB280314 AMMETER |
MB280314 |
US $48.84 |
||
|
81521
|
81521
MB280310
COUNTER, ODOMETER TRIP
|
MB280310 |
— | ||
|
81542
|
81542
MB280311 GAUGE, FUEL |
MB280311 |
US $42.18 |
||
|
81544
|
81544
MB280313 GAUGE, OIL PRESSURE |
MB280313 |
US $48.84 |
||
|
81551
|
81551
MB280312 GAUGE, WATER TEMPERATURE |
MB280312 |
US $42.18 |
||
|
81556
|
81556
MB108818 KNOB, TRIP METER |
MB108818 |
US $3.85 |
||
|
81602
|
81602
MB441573 CLOCK, DIGITAL |
MB441573 |
US $242.72 |
||
|
81602
|
81602
MB441574 CLOCK, DIGITAL |
MB441574 |
US $506.69 |
||
|
81602
|
81602
MB441575 CLOCK, DIGITAL |
MB441575 |
US $518.34 |
||
|
81987B
|
81987B
MF455031 SCREW, FUEL LINETapping,5x12 |
MF455031 |
US $1.48 |
||
|
81991B
|
81991B
MS470059 CLIP, CRANKCASEL=80 |
MS470059 |
US $2.46 |
||
|
81991C
|
81991C
MB098602 CLIP, CRUISE CONTROL EQUIPD=18 h=15 |
MB098602 |
US $2.96 |
||
|
81991E
|
81991E
MB141310 CLIP, SPEEDOMETER CABLE13-6 |
MB141310 |
US $4.44 |
||
|
81992B
|
81992B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
81992C
|
81992C
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
81993B
|
81993B
MS470402 CLIP, WIRING, NO.2 |
MS470402 |
US $2.87 |
||
|
83045
|
83045
MB280325
HARNESS, COMBINATION METER
|
MB280325 |
— | ||
|
83045
|
83045
MB357558
HARNESS, COMBINATION METER
|
MB357558 |
— | ||
|
84622
|
84622
MB170357 CHIME, SPEED |
MB170357 |
US $22.94 |
||
|
