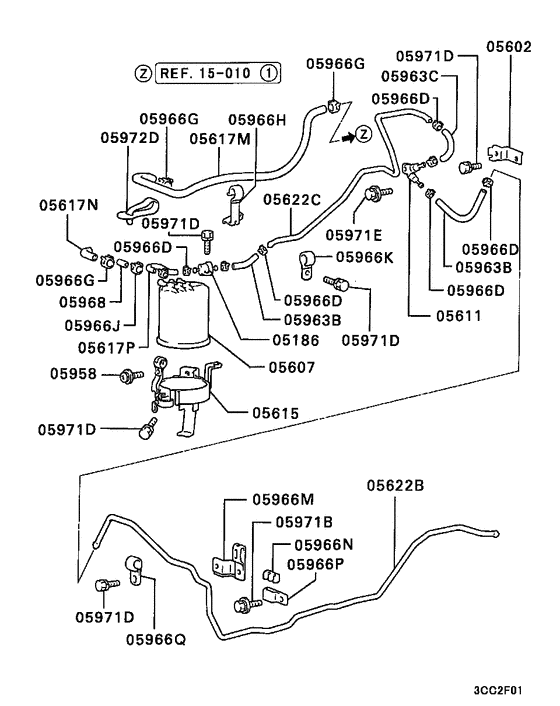

Fuel line & vapor gas control (LHD..VAPOR GAS CONTROL) Diagram Mitsubishi STARION
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- I/C TURBO EX,5FM/T LHD
- transmission
- 5FM/T
- grade
- I/C EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05186
|
05186
MB009102 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB009102 |
US $30.78 |
||
|
05602
|
05602
MB220743
BRACKET,FUEL CHECK VALVE
|
MB220743 |
— | ||
|
05607
|
05607
MB129500
CANISTER, FUEL VAPOR
|
MB129500 |
— | ||
|
05611
|
05611
MB052878 CHECK VALVE, FUEL VAPOR CONTROL |
MB052878 |
US $12.28 |
||
|
05615
|
05615
MB181856 HOLDER, FUEL VAPOR CANISTER |
MB181856 |
US $39.22 |
||
|
05617M
|
05617M
MB247764 HOSE, FUEL VAPOR PURGE |
MB247764 |
US $19.98 |
||
|
05617N
|
05617N
MB129705 HOSE, FUEL VAPOR PURGE |
MB129705 |
US $22.94 |
||
|
05617P
|
05617P
MB247765 HOSE, FUEL VAPOR PURGE |
MB247765 |
US $5.33 |
||
|
05622B
|
05622B
MB181775
PIPE,FUEL VAPOR
|
MB181775 |
— | ||
|
05622C
|
05622C
MB220744
PIPE,FUEL VAPOR
|
MB220744 |
— | ||
|
05958
|
05958
MS350121
SCREW, FUEL VAPOR CONTROL LINE
|
MS350121 |
— | ||
|
05963B
|
05963B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963C
|
05963C
MB181927
HOSE,FUEL VAPOR CONTROL LINE
|
MB181927 |
— | ||
|
05966D
|
05966D
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05966G
|
05966G
MS660166 CLIP, ROCKER COVERD=15.5 |
MS660166 |
from US $1.62 |
||
|
05966H
|
05966H
MB247763 CLIP, FUEL VAPOR CONTROL LINE17 |
MB247763 |
US $6.22 |
||
|
05966J
|
05966J
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05966K
|
05966K
MF477022 CLIP, FUEL FILLER LID LOCKINGD=6 |
MF477022 |
US $1.64 |
||
|
05966M
|
05966M
MB220789 CLIP, FUEL VAPOR CONTROL LINE5-5 |
MB220789 |
US $5.03 |
||
|
05966N
|
05966N
MB129999 CLIP, FUEL RETURN LINED=4.6,d=6.2 |
MB129999 |
US $3.97 |
||
|
05966P
|
05966P
MB151280 CLIP, FUEL RETURN LINE8,10 |
MB151280 |
US $2.74 |
||
|
05966Q
|
05966Q
MB075802 CLIP,FUEL RETURN LINE |
MB075802 |
US $4.14 |
||
|
05968
|
05968
MB129998 CAP, FUEL VAPOR CONTROL LINE |
MB129998 |
US $5.18 |
||
|
05971B
|
05971B
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
05971D
|
05971D
MF240024 BOLT, FUEL TANKWasher assembled,6x14 |
MF240024 |
US $2.60 |
||
|
05971E
|
05971E
MF243630 BOLT, FUEL TANKWasher assembled,6x30 |
MF243630 |
US $2.33 |
||
|
05972D
|
05972D
MS470087 BAND, FUEL TANKL=122 |
MS470087 |
US $0.82 |
||
|
