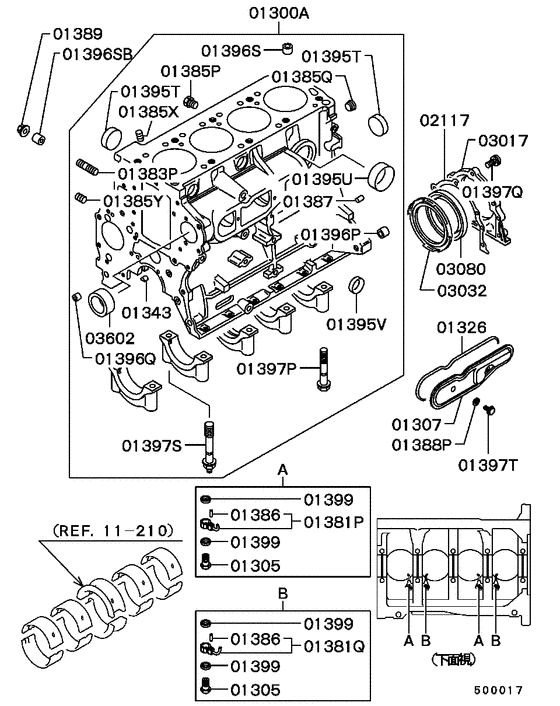

Cylinder block (ALL (CYLINDER BLOCK)) Diagram Mitsubishi STARION
- Year
- 1988 - 1990
- Sales region
- Japan
- Note
- GSR-VR(OVER FENDER),4FA/T
- transmission
- 4FA/T
- grade
- GSR-VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01300A
|
01300A
MD103483 BLOCK ASSY, CYLINDER |
MD103483 |
US $2,606.40 |
||
|
01300A
|
01300A
MD169711
BLOCK ASSY, CYLINDER
|
MD169711 |
— | ||
|
01305
|
01305
MD050249 CHECK VALVE, CYLINDER BLOCK PISTON LUBRICANT |
MD050249 |
US $28.73 |
||
|
01307
|
01307
MD020237 COVER, CYLINDER BLOCK |
MD020237 |
from US $15.31 |
||
|
01326
|
01326
MD020239 GASKET, CYLINDER BLOCK SIDE COVER |
MD020239 |
from US $11.63 |
||
|
01343
|
01343
MD020234 OIL JET, CYLINDER BLOCK CHAIN LUBRICANT |
MD020234 |
US $4.92 |
||
|
01381P
|
01381P
MD104202
OIL JET, CYLINDER BLOCK
|
MD104202 |
— | ||
|
01381Q
|
01381Q
MD104203
OIL JET, CYLINDER BLOCK
|
MD104203 |
— | ||
|
01383P
|
01383P
MS401350 STUD, CYLINDER BLOCK10x25 |
MS401350 |
US $3.85 |
||
|
01385P
|
01385P
MD000269 PLUG, CYLINDER BLOCKTaper,1/4 |
MD000269 |
from US $2.22 |
||
|
01385Q
|
01385Q
MD024256 PLUG, CYLINDER BLOCKTaper,1/32 |
MD024256 |
US $3.40 |
||
|
01385Q
|
01385Q
MS661142 PLUG, CYLINDER HEADTaper,3/8 |
MS661142 |
from US $2.87 |
||
|
01385X
|
01385X
MD024256 PLUG, CYLINDER BLOCKTaper,1/32 |
MD024256 |
US $3.40 |
||
|
01385Y
|
01385Y
MS661140 PLUG, CYLINDER HEADTaper,1/8 |
MS661140 |
US $3.15 |
||
|
01386
|
01386
MF472549 SPRING PIN, CYLINDER BLOCK4x10 |
MF472549 |
from US $1.23 |
||
|
01387
|
01387
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.85 |
||
|
01388P
|
01388P
MD020256 O-RING, CYLINDER BLOCK4.8 |
MD020256 |
from US $1.91 |
||
|
01389
|
01389
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.38 |
||
|
01395T
|
01395T
MF665542 CAP, CYLINDER BLOCKSealing,40 |
MF665542 |
from US $2.54 |
||
|
01395U
|
01395U
MF665544 CAP, CYLINDER BLOCKSealing,50 |
MF665544 |
from US $2.77 |
||
|
01395V
|
01395V
MF665539 CAP, CYLINDER HEADSealing,28 |
MF665539 |
from US $2.18 |
||
|
01396P
|
01396P
MD020260 BUSHING, CYLINDER BLOCK10.5x19.3 |
MD020260 |
from US $2.24 |
||
|
01396Q
|
01396Q
MS471104 BUSHING, CYLINDER HEAD8x9 |
MS471104 |
from US $1.50 |
||
|
01396S
|
01396S
MS471111 BUSHING, CYLINDER BLOCK12x13 |
MS471111 |
from US $1.66 |
||
|
01396SB
|
01396SB
MS471111 BUSHING, CYLINDER BLOCK12x13 |
MS471111 |
from US $1.66 |
||
|
01397P
|
01397P
MD020223 BOLT, CYLINDER BLOCKFlange,12x79.5 |
MD020223 |
from US $3.71 |
||
|
01397Q
|
01397Q
MF140207 BOLT, ROCKER COVERFlange,6x20 |
MF140207 |
from US $0.66 |
||
|
01397S
|
01397S
MD012069 BOLT, CYLINDER BLOCKFlange,12x79.5 |
MD012069 |
from US $10.36 |
||
|
01397T
|
01397T
MF140003 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140003 |
US $3.01 |
||
|
01399
|
01399
MF660034 GASKET, CYLINDER BLOCKD=12 |
MF660034 |
from US $0.20 |
||
|
02117
|
02117
MD020292
GASKET, RR OIL SEAL CASE
|
MD020292 |
— | ||
| replacement | |||||
|
02117
|
02117
MD183244 GASKET, RR OIL SEAL CASE |
MD183244 |
from US $3.76 |
||
|
03017
|
03017
MD024509 CASE, CRANKSHAFT RR OIL SEAL |
MD024509 |
from US $38.36 |
||
|
03032
|
03032
MD020436 OIL SEPARATOR, CRANKSHAFT, RR |
MD020436 |
US $16.42 |
||
|
03080
|
03080
MD050604
OIL SEAL, CRANKSHAFT, RR
|
MD050604 |
— | ||
| replacement | |||||
|
03080
|
03080
MD343564 OIL SEAL, CRANKSHAFT, RR |
MD343564 |
from US $20.71 |
||
|
03602
|
03602
MD021118 BEARING, BALANCER SHAFT, RRPlain,std |
MD021118 |
from US $14.22 |
||
|
03602
|
03602
MD082303
BEARING, BALANCER SHAFT, RR
|
MD082303 |
— | ||
|
