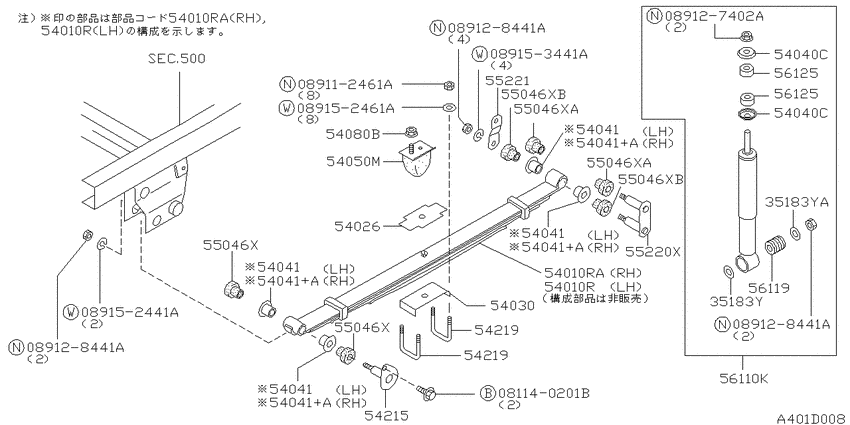

Front suspension (1992-11-01 ~ 1993-10-01; &スプリング & ショック アブソーバー; MB.FD42) Diagram Nissan ATLAS/CONDOR
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- FD42
- drive
- 4WD
- grade
- VZ.S
- body
- CV
- body type
- HK.WT
- load
- 2T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081140201B
|
081140201B
08114-0201B
Bolt-hexagon
|
08114-0201B |
— | ||
|
089112461A
|
089112461A
08911-2461A
NUTHEX
|
08911-2461A |
— | ||
|
089127402A
|
089127402A
08912-7402A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-7402A |
— | ||
|
089128441A
|
089128441A
08912-8441A
NUTHEX
|
08912-8441A |
— | ||
|
089128441A
|
089128441A
08912-8441A
NUTHEX
|
08912-8441A |
— | ||
|
089128441A
|
089128441A
08912-8441A
NUTHEX
|
08912-8441A |
— | ||
|
089152441A
|
089152441A
089152441A WASHERSPRING |
089152441A |
US $1.93 |
||
|
089152461A
|
089152461A
08915-2461A
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-2461A |
— | ||
|
089153441A
|
089153441A
089153441A WASHER |
089153441A |
from US $0.74 |
||
|
35183Y
|
35183Y
351833901P Washer-Special9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ABS ﾛｱ- ﾖｳ |
351833901P |
US $0.86 |
||
|
35183Y
|
35183Y
351833902P Washer-Special9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ABS ﾛｱ- ﾖｳ |
351833902P |
US $1.58 |
||
|
35183YA
|
35183YA
351833902P Washer-Special9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ABS ﾛｱ- ﾖｳ |
351833902P |
US $1.58 |
||
|
500
|
Frame
500
|
||||
|
500
|
Frame
500
|
||||
|
500
|
Frame
500
|
||||
|
500
|
Frame
500
|
||||
|
500
|
Frame
500
|
||||
|
500
|
Frame
500
|
||||
|
54010R
|
54010R
54009-0T006 Spring Assy-Leaf, Front9110--01 ~ 9202--01; @(T+DP+V+CV).SB.H.WT.(BD30+FD42).2T +ED35 +DP.(HS+HK).(BD30+FD42); ﾋﾀﾞﾘ |
54009-0T006 |
US $729.24 |
||
|
54010R
|
54010R
54009-0T018 Spring Assy-Leaf, Front9202--01 ~ 9310--01; @(T+DP+V+CV).SB.H.WT.(BD30+FD42).2T +ED35 +DP.(HS+HK).(BD30+FD42); ﾋﾀﾞﾘ |
54009-0T018 |
US $972.79 |
||
|
54010R
|
54010R
54009-0T300 Spring Assy-Leaf, Front9310--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾋﾀﾞﾘ ﾖｳ |
54009-0T300 |
US $729.24 |
||
|
54010R
|
54010R
54010-0T300 Spring Assy-Leaf, Front9211--01 ~ 9310--01; DP.4WD.FD42; ﾋﾀﾞﾘ ﾖｳ |
54010-0T300 |
US $729.24 |
||
|
54010R
|
54010R
54010-0T006 Spring Assy-Leaf, Front9110--01 ~ 9202--01; @(T+DP+V+CV).SB.H.WT.(BD30+FD42).2T +ED35 +DP.(HS+HK).(BD30+FD42); ﾐｷﾞｶﾞﾜ |
54010-0T006 |
US $729.24 |
||
|
54010R
|
54010R
54010-0T018 Spring Assy-Leaf, Front9202--01 ~ 9310--01; @(T+DP+V+CV).SB.H.WT.(BD30+FD42).2T +ED35 +DP.(HS+HK).(BD30+FD42); ﾐｷﾞｶﾞﾜ |
54010-0T018 |
US $729.24 |
||
|
54010R
|
54010R
54010-0T300 Spring Assy-Leaf, Front9310--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
54010-0T300 |
US $729.24 |
||
|
54010R
|
54010R
54010-0T310 Spring Assy-Leaf, Front9211--01 ~ 9310--01; DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
54010-0T310 |
US $729.24 |
||
|
54010RA
|
54010RA
54010-0T006 Spring Assy-Leaf, Front9110--01 ~ 9202--01; @(T+DP+V+CV).SB.H.WT.(BD30+FD42).2T +ED35 +DP.(HS+HK).(BD30+FD42); ﾐｷﾞｶﾞﾜ |
54010-0T006 |
US $729.24 |
||
|
54010RA
|
54010RA
54010-0T018 Spring Assy-Leaf, Front9202--01 ~ 9310--01; @(T+DP+V+CV).SB.H.WT.(BD30+FD42).2T +ED35 +DP.(HS+HK).(BD30+FD42); ﾐｷﾞｶﾞﾜ |
54010-0T018 |
US $729.24 |
||
|
54010RA
|
54010RA
54010-0T300 Spring Assy-Leaf, Front9310--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
54010-0T300 |
US $729.24 |
||
|
54010RA
|
54010RA
54010-0T310 Spring Assy-Leaf, Front9211--01 ~ 9310--01; DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
54010-0T310 |
US $729.24 |
||
|
54026
|
54026
54026-0T000 Spacer-Spring9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｾﾝﾀｸ ｼﾖｳ T=3.2 |
54026-0T000 |
US $12.67 |
||
|
54026
|
54026
54026-0T005 Spacer-Spring9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｾﾝﾀｸ ｼﾖｳ T=5.6 |
54026-0T005 |
US $12.67 |
||
|
54030
|
54030
54030-0T300 Seat-Front Spring9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42 |
54030-0T300 |
US $8.35 |
||
|
54040C
|
54040C
56129-0T000 Washer9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ABS ｱﾂﾊﾟ- ﾖｳ |
56129-0T000 |
US $4.18 |
||
|
54040C
|
54040C
56129-0T000 Washer9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ABS ｱﾂﾊﾟ- ﾖｳ |
56129-0T000 |
US $4.18 |
||
|
54041
|
54041
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾋﾀﾞﾘ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041
|
54041
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041
|
54041
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾋﾀﾞﾘ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041
|
54041
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041
|
54041
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾋﾀﾞﾘ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041
|
54041
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041
|
54041
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾋﾀﾞﾘ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041
|
54041
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041+A
|
54041+A
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041+A
|
54041+A
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041+A
|
54041+A
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54041+A
|
54041+A
540450T000 Bush-Rubber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ ﾖｳ |
540450T000 |
US $19.41 |
||
|
54050M
|
54050M
54050-0T300
Bumper Assy-Bound
9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ |
54050-0T300 |
— | ||
|
54080B
|
54080B
0122501014 NUT9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42 |
0122501014 |
US $4.18 |
||
|
54215
|
54215
55210-0T000
Pin-Front Spring
9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42 |
55210-0T000 |
— | ||
|
54219
|
54219
54219-0T301 Clip-Front Spring9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42 |
54219-0T301 |
US $16.27 |
||
|
54219
|
54219
54219-0T305 Clip-Front Spring9310--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42 |
54219-0T305 |
US $16.27 |
||
|
54219
|
54219
54219-0T301 Clip-Front Spring9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42 |
54219-0T301 |
US $16.27 |
||
|
54219
|
54219
54219-0T305 Clip-Front Spring9310--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42 |
54219-0T305 |
US $16.27 |
||
|
55046X
|
55046X
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾏｴｶﾞﾜ RH&LH |
550460T000 |
from US $17.70 |
||
|
55046X
|
55046X
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｳｼﾛｶﾞﾜ ｱﾂﾊﾟ- ﾖｳ |
550460T000 |
from US $17.70 |
||
|
55046X
|
55046X
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｳｼﾛｶﾞﾜ ﾛｱ- ﾖｳ |
550460T000 |
from US $17.70 |
||
|
55046X
|
55046X
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ﾏｴｶﾞﾜ RH&LH |
550460T000 |
from US $17.70 |
||
|
55046X
|
55046X
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｳｼﾛｶﾞﾜ ｱﾂﾊﾟ- ﾖｳ |
550460T000 |
from US $17.70 |
||
|
55046X
|
55046X
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｳｼﾛｶﾞﾜ ﾛｱ- ﾖｳ |
550460T000 |
from US $17.70 |
||
|
55046XA
|
55046XA
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｳｼﾛｶﾞﾜ ｱﾂﾊﾟ- ﾖｳ |
550460T000 |
from US $17.70 |
||
|
55046XA
|
55046XA
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｳｼﾛｶﾞﾜ ｱﾂﾊﾟ- ﾖｳ |
550460T000 |
from US $17.70 |
||
|
55046XB
|
55046XB
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｳｼﾛｶﾞﾜ ﾛｱ- ﾖｳ |
550460T000 |
from US $17.70 |
||
|
55046XB
|
55046XB
550460T000 BUSH REAR SPRIN9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｳｼﾛｶﾞﾜ ﾛｱ- ﾖｳ |
550460T000 |
from US $17.70 |
||
|
55220X
|
55220X
55220-0T000 Shackle Assy-Rear Spring9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｱｳﾀ- ﾖｳ |
55220-0T000 |
US $48.82 |
||
|
55221
|
55221
55221-0T000
Plate-Shackle
9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｲﾝﾅ- ﾖｳ |
55221-0T000 |
— | ||
|
55221
|
55221
55221-0T000
Plate-Shackle
9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42 |
55221-0T000 |
— | ||
|
56110K
|
56110K
561000T025 New Genuine Part9211--01 ~ 9310--01; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ｺｸｲﾝNO 56110-0T002 |
561000T025 |
US $240.48 |
||
|
56119
|
56119
56119T8000 Bush-Shock Absorber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ABS ｱﾂﾊﾟ- ﾖｳ |
56119T8000 |
US $5.04 |
||
|
56119
|
56119
56119T8000 Bush-Shock Absorber9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ABS ﾖｳ |
56119T8000 |
US $5.04 |
||
|
56125
|
56125
56127T8000 Bush9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ABS ｱﾂﾊﾟ- ﾖｳ |
56127T8000 |
US $7.20 |
||
|
56125
|
56125
56127T8000 Bush9211--01 ~ ; T.4WD.MB.H.WT.FD42 +DP.4WD.FD42; ABS ｱﾂﾊﾟ- ﾖｳ |
56127T8000 |
US $7.20 |
||
