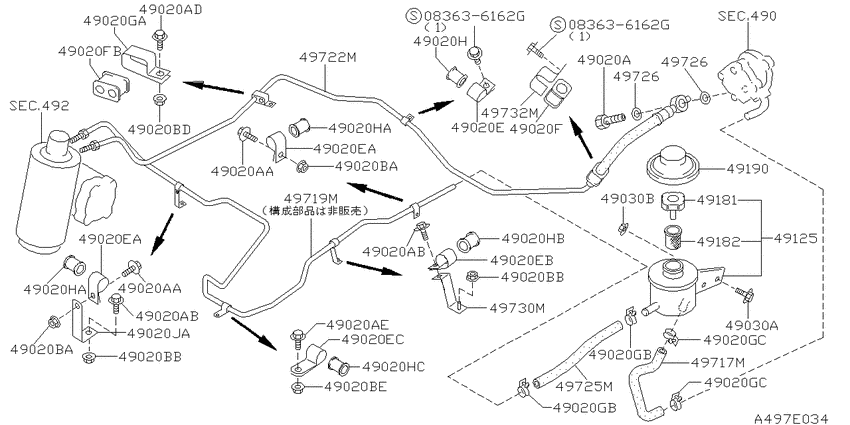

Power steering piping (1992-11-01 ~ ; 4WD.FD42) Diagram Nissan ATLAS/CONDOR
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- FD42
- drive
- 4WD
- grade
- VZ.S
- body
- CV
- body type
- HK.WT
- load
- 2T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
49020A
|
49020A
0161900011 BOLT9110--01 ~ 9201--01; FD42 |
0161900011 |
from US $3.77 |
||
|
49020A
|
49020A
01125-01564 SCREW9110--01 ~ 9201--01; FD42 |
01125-01564 |
US $2.45 |
||
|
49020A
|
49020A
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020A
|
49020A
01125-01564 SCREW9110--01 ~ 9201--01; FD42 |
01125-01564 |
US $2.45 |
||
|
49020A
|
49020A
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020A
|
49020A
01125-01564 SCREW9110--01 ~ 9201--01; FD42 |
01125-01564 |
US $2.45 |
||
|
49020A
|
49020A
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020A
|
49020A
01125-01564 SCREW9211--01 ~ 9507--01; (T.4WD+DP.4WD).FD42 |
01125-01564 |
US $2.45 |
||
|
49020A
|
49020A
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020AA
|
49020AA
01125-01564 SCREW9110--01 ~ 9201--01; FD42 |
01125-01564 |
US $2.45 |
||
|
49020AA
|
49020AA
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020AA
|
49020AA
01125-01564 SCREW9110--01 ~ 9201--01; FD42 |
01125-01564 |
US $2.45 |
||
|
49020AA
|
49020AA
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020AB
|
49020AB
01125-01564 SCREW9110--01 ~ 9201--01; FD42 |
01125-01564 |
US $2.45 |
||
|
49020AB
|
49020AB
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020AB
|
49020AB
01125-01564 SCREW9110--01 ~ 9201--01; FD42 |
01125-01564 |
US $2.45 |
||
|
49020AB
|
49020AB
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020AD
|
49020AD
01125-01564 SCREW9110--01 ~ 9201--01; FD42 |
01125-01564 |
US $2.45 |
||
|
49020AD
|
49020AD
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020AE
|
49020AE
01125-01564 SCREW9211--01 ~ 9507--01; (T.4WD+DP.4WD).FD42 |
01125-01564 |
US $2.45 |
||
|
49020AE
|
49020AE
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49020BA
|
49020BA
0122500331 NUT-WIPER ARM9110--01 ~ 9201--01; FD42 |
0122500331 |
US $1.93 |
||
|
49020BA
|
49020BA
0122500331 NUT-WIPER ARM9110--01 ~ 9201--01; FD42 |
0122500331 |
US $1.93 |
||
|
49020BB
|
49020BB
0122500331 NUT-WIPER ARM9110--01 ~ 9201--01; FD42 |
0122500331 |
US $1.93 |
||
|
49020BB
|
49020BB
0122500331 NUT-WIPER ARM9110--01 ~ 9201--01; FD42 |
0122500331 |
US $1.93 |
||
|
49020BD
|
49020BD
0122500331 NUT-WIPER ARM9110--01 ~ 9201--01; FD42 |
0122500331 |
US $1.93 |
||
|
49020BE
|
49020BE
0122500331 NUT-WIPER ARM9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
0122500331 |
US $1.93 |
||
|
49020E
|
49020E
01551-10144 CLIP9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
01551-10144 |
US $2.45 |
||
|
49020E
|
49020E
01551-10144 CLIP9110--01 ~ 9201--01; FD42 |
01551-10144 |
US $2.45 |
||
|
49020E
|
49020E
01551-10144 CLIP9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
01551-10144 |
US $2.45 |
||
|
49020E
|
49020E
46289-T9303 Clip-Vacuum Hose9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
46289-T9303 |
US $5.04 |
||
|
49020E
|
49020E
49791-0T000 Clip9110--01 ~ 9201--01; FD42 |
49791-0T000 |
US $6.19 |
||
|
49020E
|
49020E
49791-0T001 Clip9110--01 ~ 9201--01; FD42 |
49791-0T001 |
US $6.19 |
||
|
49020EA
|
49020EA
01551-10144 CLIP9110--01 ~ 9201--01; FD42 |
01551-10144 |
US $2.45 |
||
|
49020EA
|
49020EA
01551-10144 CLIP9110--01 ~ 9201--01; FD42 |
01551-10144 |
US $2.45 |
||
|
49020EB
|
49020EB
01551-10144 CLIP9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
01551-10144 |
US $2.45 |
||
|
49020EC
|
49020EC
46289-T9303 Clip-Vacuum Hose9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
46289-T9303 |
US $5.04 |
||
|
49020EC
|
49020EC
49791-0T000 Clip9110--01 ~ 9201--01; FD42 |
49791-0T000 |
US $6.19 |
||
|
49020F
|
49020F
49733-0T000 Insulator9110--01 ~ 9201--01; FD42 |
49733-0T000 |
US $9.22 |
||
|
49020F
|
49020F
46283-89954 Insulator9110--01 ~ 9201--01; FD42 |
46283-89954 |
US $5.18 |
||
|
49020FB
|
49020FB
46283-89954 Insulator9110--01 ~ 9201--01; FD42 |
46283-89954 |
US $5.18 |
||
|
49020GA
|
49020GA
46289-0T001 Clamp9110--01 ~ 9201--01; FD42 |
46289-0T001 |
US $6.19 |
||
|
49020GA
|
49020GA
46289-0T007 Clamp9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
46289-0T007 |
US $4.18 |
||
|
49020GB
|
49020GB
01555-00211
CLAMP-HOSE
9110--01 ~ 9201--01; FD42 |
01555-00211 |
— | ||
| replacement | |||||
|
49020GB
|
49020GB
0155500811 CLAMP-HOSE9110--01 ~ 9201--01; FD42 |
0155500811 |
from US $2.85 |
||
|
49020GB
|
49020GB
01555-00211
CLAMP-HOSE
9110--01 ~ 9201--01; FD42 |
01555-00211 |
— | ||
| replacement | |||||
|
49020GB
|
49020GB
0155500811 CLAMP-HOSE9110--01 ~ 9201--01; FD42 |
0155500811 |
from US $2.85 |
||
|
49020GC
|
49020GC
49729-2J016
Clamp
9110--01 ~ 9201--01; FD42 |
49729-2J016 |
— | ||
| replacement | |||||
|
49020GC
|
49020GC
497292J01B Clamp9110--01 ~ 9201--01; FD42 |
497292J01B |
from US $1.96 |
||
|
49020GC
|
49020GC
49729-2J016
Clamp
9110--01 ~ 9201--01; FD42 |
49729-2J016 |
— | ||
| replacement | |||||
|
49020GC
|
49020GC
497292J01B Clamp9110--01 ~ 9201--01; FD42 |
497292J01B |
from US $1.96 |
||
|
49020H
|
49020H
01561-00104 INSULATOR9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
01561-00104 |
US $3.46 |
||
|
49020H
|
49020H
01561-00104 INSULATOR9110--01 ~ 9201--01; FD42 |
01561-00104 |
US $3.46 |
||
|
49020H
|
49020H
01561-00104 INSULATOR9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
01561-00104 |
US $3.46 |
||
|
49020H
|
49020H
01561-00104 INSULATOR9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
01561-00104 |
US $3.46 |
||
|
49020HA
|
49020HA
01561-00104 INSULATOR9110--01 ~ 9201--01; FD42 |
01561-00104 |
US $3.46 |
||
|
49020HA
|
49020HA
01561-00104 INSULATOR9110--01 ~ 9201--01; FD42 |
01561-00104 |
US $3.46 |
||
|
49020HB
|
49020HB
01561-00104 INSULATOR9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
01561-00104 |
US $3.46 |
||
|
49020HC
|
49020HC
01561-00104 INSULATOR9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
01561-00104 |
US $3.46 |
||
|
49020JA
|
49020JA
01935-30104 STAY9110--01 ~ 9201--01; FD42 |
01935-30104 |
US $4.18 |
||
|
49030A
|
49030A
01125-01564 SCREW9211--01 ~ 9507--01; (T.4WD+DP.4WD).FD42 |
01125-01564 |
US $2.45 |
||
|
49030A
|
49030A
0112568204 SCREW9507--01 ~ ; (T.4WD+DP.4WD).FD42 |
0112568204 |
US $2.45 |
||
|
49030B
|
49030B
0122500331 NUT-WIPER ARM9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
0122500331 |
US $1.93 |
||
|
49125
|
49125
49180-0T000 Tank Assy-Reservoir9110--01 ~ 9201--01; FD42 |
49180-0T000 |
US $300.19 |
||
|
49125
|
49125
49180-0T310 Tank Assy-Reservoir9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49180-0T310 |
US $300.19 |
||
|
49181
|
49181
49181W1705 Cap Assy-Pump9110--01 ~ 9201--01; FD42 |
49181W1705 |
from US $14.42 |
||
|
49182
|
49182
49182-42L00 Filter Assy-Pump9110--01 ~ 9201--01; FD42 |
49182-42L00 |
US $5.55 |
||
|
49190
|
49190
4919054W00 Cover-Oil Tank9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
4919054W00 |
from US $27.11 |
||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
49717M
|
49717M
49717-0T000 Hose Assy-Suction, Power Steering9110--01 ~ 9201--01; FD42 |
49717-0T000 |
US $67.97 |
||
|
49717M
|
49717M
49717-0T300 Hose Assy-Suction, Power Steering9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49717-0T300 |
US $57.17 |
||
|
49719M
|
49719M
49726-0T001 Tube Assy-Power Steering9110--01 ~ 9201--01; FD42 |
49726-0T001 |
US $46.22 |
||
|
49719M
|
49719M
49726-0T303 Tube Assy-Power Steering9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49726-0T303 |
US $72.72 |
||
|
49722M
|
49722M
49720-0T003 Hose & Tube Assy-Pressure, Ps9110--01 ~ 9201--01; FD42 |
49720-0T003 |
US $227.52 |
||
|
49722M
|
49722M
49720-0T300 Hose & Tube Assy-Pressure, Ps9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49720-0T300 |
US $969.96 |
||
|
49725M
|
49725M
497250T000 Hose-Return, Power Steering9110--01 ~ 9201--01; FD42 |
497250T000 |
US $22.61 |
||
|
49725M
|
49725M
49725-0T300 Hose-Return, Power Steering9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49725-0T300 |
US $29.09 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9110--01 ~ 9201--01; FD42 |
49726Y0100 |
from US $1.74 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9110--01 ~ 9201--01; FD42 |
49726Y0100 |
from US $1.74 |
||
|
49730M
|
49730M
49730-0T010 Bracket-Tube9110--01 ~ 9201--01; FD42 |
49730-0T010 |
US $11.09 |
||
|
49730M
|
49730M
49730-0T310 Bracket-Tube9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49730-0T310 |
US $10.22 |
||
|
49732M
|
49732M
49732-0T020 Bracket-Power Steering Tube9110--01 ~ 9201--01; FD42 |
49732-0T020 |
US $6.19 |
||
|
49732M
|
49732M
49732-0T000 Bracket-Power Steering Tube9110--01 ~ 9201--01; FD42 |
49732-0T000 |
US $6.19 |
||
|
49732M
|
49732M
49732-0T001 Bracket-Power Steering Tube9110--01 ~ 9201--01; FD42 |
49732-0T001 |
US $6.19 |
||
