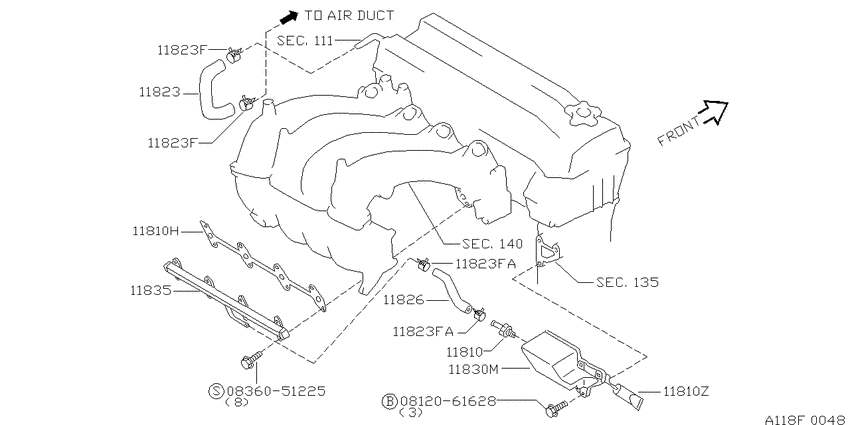

Crankcase ventilation (1993-08-01 ~ ; KA24DE) Diagram Nissan BLUEBIRD
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 2WD
- transmission
- AT
- grade
- SSSZ
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0836051225
|
0836051225
08360-51225
SCREWMACHINE
|
08360-51225 |
— | ||
|
111
|
Cylinder head & rocker cover
111
|
||||
|
11810
|
11810
11810-86G00 Valve Assy-Control Blowby9308--01 ~ ; KA24DE |
11810-86G00 |
US $20.88 |
||
|
11810
|
11810
11837-1E400 Gasket-Control Valve9308--01 ~ ; KA24DE |
11837-1E400 |
US $7.91 |
||
|
11810
|
11810
KA76015000
Gasket-Liquid
9308--01 ~ ; KA24DE; [K504] |
KA76015000 |
— | ||
|
11810H
|
11810H
11837-1E400 Gasket-Control Valve9308--01 ~ ; KA24DE |
11837-1E400 |
US $7.91 |
||
|
11810Z
|
11810Z
KA76015000
Gasket-Liquid
9308--01 ~ ; KA24DE; [K504] |
KA76015000 |
— | ||
|
11823
|
11823
11823-1E400 Hose Assy-Blow By, A9308--01 ~ ; KA24DE |
11823-1E400 |
US $45.33 |
||
|
11823
|
11823
16439-V5001
Clamp-Hose, A
9308--01 ~ ; KA24DE |
16439-V5001 |
— | ||
| replacement | |||||
|
11823
|
11823
16439V500C Clamp-Hose9308--01 ~ ; KA24DE |
16439V500C |
from US $2.76 |
||
|
11823
|
11823
16439-42L00
Clamp-Hose, A
9308--01 ~ ; KA24DE |
16439-42L00 |
— | ||
| replacements | |||||
|
11823
|
11823
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
9308--01 ~ ; KA24DE |
164394L0A |
— | ||
|
11823
|
11823
1643942L0A Clamp-Hose A9308--01 ~ ; KA24DE |
1643942L0A |
from US $4.68 |
||
|
11823F
|
11823F
16439-V5001
Clamp-Hose, A
9308--01 ~ ; KA24DE |
16439-V5001 |
— | ||
| replacement | |||||
|
11823F
|
11823F
16439V500C Clamp-Hose9308--01 ~ ; KA24DE |
16439V500C |
from US $2.76 |
||
|
11823F
|
11823F
16439-42L00
Clamp-Hose, A
9308--01 ~ ; KA24DE |
16439-42L00 |
— | ||
| replacements | |||||
|
11823F
|
11823F
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
9308--01 ~ ; KA24DE |
164394L0A |
— | ||
|
11823F
|
11823F
1643942L0A Clamp-Hose A9308--01 ~ ; KA24DE |
1643942L0A |
from US $4.68 |
||
|
11823F
|
11823F
16439-V5001
Clamp-Hose, A
9308--01 ~ ; KA24DE |
16439-V5001 |
— | ||
| replacement | |||||
|
11823F
|
11823F
16439V500C Clamp-Hose9308--01 ~ ; KA24DE |
16439V500C |
from US $2.76 |
||
|
11823F
|
11823F
16439-42L00
Clamp-Hose, A
9308--01 ~ ; KA24DE |
16439-42L00 |
— | ||
| replacements | |||||
|
11823F
|
11823F
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
9308--01 ~ ; KA24DE |
164394L0A |
— | ||
|
11823F
|
11823F
1643942L0A Clamp-Hose A9308--01 ~ ; KA24DE |
1643942L0A |
from US $4.68 |
||
|
11823FA
|
11823FA
16439-42L00
Clamp-Hose, A
9308--01 ~ ; KA24DE |
16439-42L00 |
— | ||
| replacements | |||||
|
11823FA
|
11823FA
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
9308--01 ~ ; KA24DE |
164394L0A |
— | ||
|
11823FA
|
11823FA
1643942L0A Clamp-Hose A9308--01 ~ ; KA24DE |
1643942L0A |
from US $4.68 |
||
|
11823FA
|
11823FA
16439-42L00
Clamp-Hose, A
9308--01 ~ ; KA24DE |
16439-42L00 |
— | ||
| replacements | |||||
|
11823FA
|
11823FA
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
9308--01 ~ ; KA24DE |
164394L0A |
— | ||
|
11823FA
|
11823FA
1643942L0A Clamp-Hose A9308--01 ~ ; KA24DE |
1643942L0A |
from US $4.68 |
||
|
11826
|
11826
11826-1E400 Hose-Blow By, A9308--01 ~ ; KA24DE |
11826-1E400 |
from US $23.20 |
||
|
11830M
|
11830M
11830-1E401 Separator Assy-Breather9308--01 ~ ; KA24DE |
11830-1E401 |
US $148.30 |
||
|
11835
|
11835
11835-1E410 Pipe Assy-Blow By9308--01 ~ ; KA24DE |
11835-1E410 |
US $55.15 |
||
|
135
|
Front cover & fitting
135
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
