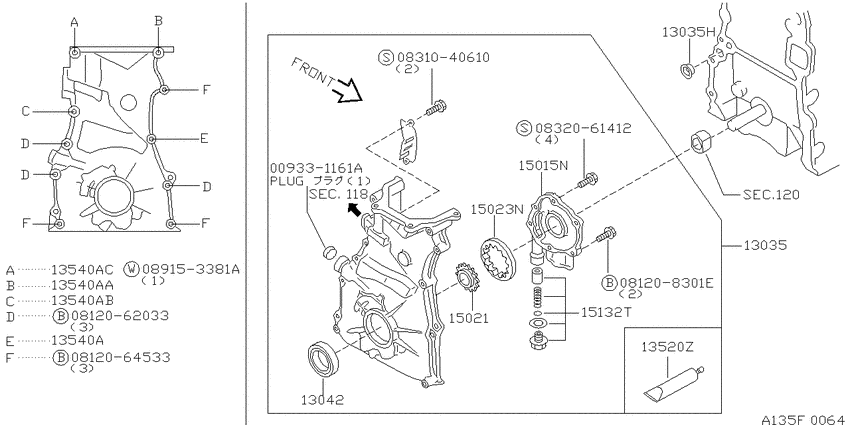

Front cover & fitting (1993-08-01 ~ ; KA24DE) Diagram Nissan BLUEBIRD
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 2WD
- transmission
- AT
- grade
- SSSZ
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331161A
|
009331161A
009331161A Plug-Welch |
009331161A |
US $0.54 |
||
|
0812062033
|
0812062033
08120-62033
Bolt-hexagon
|
08120-62033 |
— | ||
|
0812064533
|
0812064533
08120-64533
Bolt-hexagon
|
08120-64533 |
— | ||
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
0831040610
|
0831040610
08310-40610
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-40610 |
— | ||
|
0832061412
|
0832061412
08320-61412
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-61412 |
— | ||
|
089153381A
|
089153381A
089153381A Washer |
089153381A |
from US $0.67 |
||
|
118
|
Crankcase ventilation
118
|
||||
|
120
|
Piston,crankshaft & flywheel
120
|
||||
|
120
|
Piston,crankshaft & flywheel
120
|
||||
|
13035
|
13035
13500-1E402 Cover Assy-Front9308--01 ~ ; KA24DE |
13500-1E402 |
US $495.60 |
||
|
13035
|
13035
15066-0M300
Seal-O Ring
9408--01 ~ 9507--01; KA24DE |
15066-0M300 |
— | ||
| replacement | |||||
|
13035
|
13035
150665E510 Seal-O Ring9408--01 ~ 9507--01; KA24DE |
150665E510 |
from US $4.09 |
||
|
13035
|
13035
15066-5E500
Seal-O Ring
9507--01 ~ ; KA24DE |
15066-5E500 |
— | ||
| replacement | |||||
|
13035
|
13035
150665E510 Seal-O Ring9507--01 ~ ; KA24DE |
150665E510 |
from US $4.09 |
||
|
13035
|
13035
15066-85G01
Seal-O Ring
9308--01 ~ 9408--01; KA24DE |
15066-85G01 |
— | ||
| replacement | |||||
|
13035
|
13035
150665E510 Seal-O Ring9308--01 ~ 9408--01; KA24DE |
150665E510 |
from US $4.09 |
||
|
13035H
|
13035H
15066-0M300
Seal-O Ring
9408--01 ~ 9507--01; KA24DE |
15066-0M300 |
— | ||
| replacement | |||||
|
13035H
|
13035H
150665E510 Seal-O Ring9408--01 ~ 9507--01; KA24DE |
150665E510 |
from US $4.09 |
||
|
13035H
|
13035H
15066-5E500
Seal-O Ring
9507--01 ~ ; KA24DE |
15066-5E500 |
— | ||
| replacement | |||||
|
13035H
|
13035H
150665E510 Seal-O Ring9507--01 ~ ; KA24DE |
150665E510 |
from US $4.09 |
||
|
13035H
|
13035H
15066-85G01
Seal-O Ring
9308--01 ~ 9408--01; KA24DE |
15066-85G01 |
— | ||
| replacement | |||||
|
13035H
|
13035H
150665E510 Seal-O Ring9308--01 ~ 9408--01; KA24DE |
150665E510 |
from US $4.09 |
||
|
13042
|
13042
1351053J00
Seal-Oil, Crankshaft Front
9308--01 ~ ; KA24DE; NDK |
1351053J00 |
— | ||
| replacement | |||||
|
13042
|
13042
1351053J01 Seal-Oil, Crankshaft Front9308--01 ~ ; KA24DE; NDK |
1351053J01 |
from US $7.31 |
||
|
13042
|
13042
1351053J10 Seal-Oil, Crankshaft Front9308--01 ~ ; KA24DE; NOK, |
1351053J10 |
from US $7.31 |
||
|
13520Z
|
13520Z
KA76015000
Gasket-Liquid
9308--01 ~ ; KA24DE; [K504] |
KA76015000 |
— | ||
|
13540A
|
13540A
13505-1E400 Bolt-Front Cover9308--01 ~ ; KA24DE |
13505-1E400 |
US $2.45 |
||
| replacement | |||||
|
13540A
|
13540A
13505-1E40A
Bolt-front cover
9308--01 ~ ; KA24DE |
13505-1E40A |
— | ||
|
13540A
|
13540A
13505-1E401 Bolt-Front Cover9308--01 ~ ; KA24DE |
13505-1E401 |
US $2.45 |
||
| replacement | |||||
|
13540A
|
13540A
135051E40B
ﾎﾞﾙﾄ
9308--01 ~ ; KA24DE |
135051E40B |
— | ||
|
13540A
|
13540A
13505-1E402 Bolt-Front Cover9308--01 ~ ; KA24DE |
13505-1E402 |
US $2.45 |
||
| replacement | |||||
|
13540A
|
13540A
13505-1E40C
Bolt-front cover
9308--01 ~ ; KA24DE |
13505-1E40C |
— | ||
|
13540A
|
13540A
13505-1E403 Bolt-Front Cover9308--01 ~ ; KA24DE |
13505-1E403 |
US $2.45 |
||
|
13540AA
|
13540AA
13505-1E401 Bolt-Front Cover9308--01 ~ ; KA24DE |
13505-1E401 |
US $2.45 |
||
| replacement | |||||
|
13540AA
|
13540AA
135051E40B
ﾎﾞﾙﾄ
9308--01 ~ ; KA24DE |
135051E40B |
— | ||
|
13540AB
|
13540AB
13505-1E402 Bolt-Front Cover9308--01 ~ ; KA24DE |
13505-1E402 |
US $2.45 |
||
| replacement | |||||
|
13540AB
|
13540AB
13505-1E40C
Bolt-front cover
9308--01 ~ ; KA24DE |
13505-1E40C |
— | ||
|
13540AC
|
13540AC
13505-1E403 Bolt-Front Cover9308--01 ~ ; KA24DE |
13505-1E403 |
US $2.45 |
||
|
15015N
|
15015N
15015-53F00 Cover-Oil Pump9308--01 ~ ; KA24DE |
15015-53F00 |
from US $54.86 |
||
|
15021
|
15021
15021-53F00 Gear-Oil Pump, Inner9308--01 ~ ; KA24DE |
15021-53F00 |
US $45.79 |
||
|
15021
|
15021
15021-53F01 Gear-Oil Pump, Inner9308--01 ~ ; KA24DE |
15021-53F01 |
US $41.90 |
||
|
15023N
|
15023N
15023-53F00 Gear-Oil Pump Outer9308--01 ~ ; KA24DE |
15023-53F00 |
US $45.79 |
||
|
15132T
|
15132T
15132-77A00 Valve Set-Regulator, Oil Pump9308--01 ~ ; KA24DE |
15132-77A00 |
US $12.82 |
||
