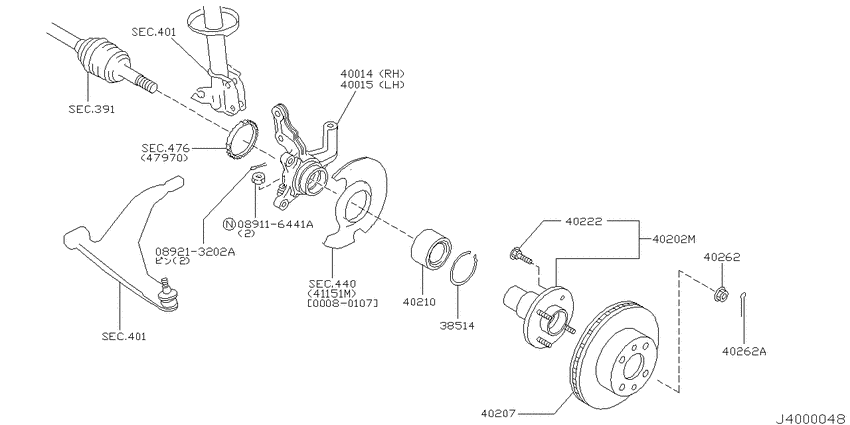

Front axle (2000-08-01 ~ 2003-02-01; 2WD.QG18DE +QG15DE +QR20DD) Diagram Nissan BLUEBIRD SYLPHY
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- BC
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089116441A
|
089116441A
089116441A NUT-HEX |
089116441A |
from US $0.94 |
||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
38514
|
38514
4021450Y00 Ring-Snap0008--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
4021450Y00 |
from US $3.33 |
||
|
391
|
Front drive shaft (ff)
391
|
||||
|
391
|
Front drive shaft (ff)
391
|
||||
|
40014
|
40014
400144M400 Spindle-Knuckle, Rh0008--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
400144M400 |
US $196.83 |
||
|
40015
|
40015
400154M400 Spindle-Knuckle, Lh0008--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
400154M400 |
US $188.64 |
||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
40202M
|
40202M
40202-4M400 Hub Assy-Road Wheel, Front0008--01 ~ 0203--01; 2WD.QG18DE +QG15DE +QR20DD |
40202-4M400 |
US $180 |
||
|
40202M
|
40202M
402024M405 Hub Assy-Road Wheel, Front0203--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
402024M405 |
US $198.72 |
||
|
40207
|
40207
402064M402 Rotor-Disc Brake, Front0010--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
402064M402 |
from US $115.92 |
||
|
40210
|
40210
402104M400 Bearing Assy-Front Wheel0008--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
402104M400 |
from US $47.19 |
||
|
40222
|
40222
4322270T00 Bolt-Hub0008--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
4322270T00 |
from US $1.30 |
||
|
40262
|
40262
402624M400 Nut-Lock, Front Wheel Bearing0008--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
402624M400 |
from US $3.18 |
||
|
40262
|
40262
400730L700 Pin-Cotter0008--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
400730L700 |
from US $0.52 |
||
|
40262A
|
40262A
400730L700 Pin-Cotter0008--01 ~ 0302--01; 2WD.QG18DE +QG15DE +QR20DD |
400730L700 |
from US $0.52 |
||
|
440
|
Front brake
440
|
||||
|
440
|
Front brake
440
|
||||
|
440
|
Front brake
440
|
||||
|
476
|
Anti skid control
476
|
||||
