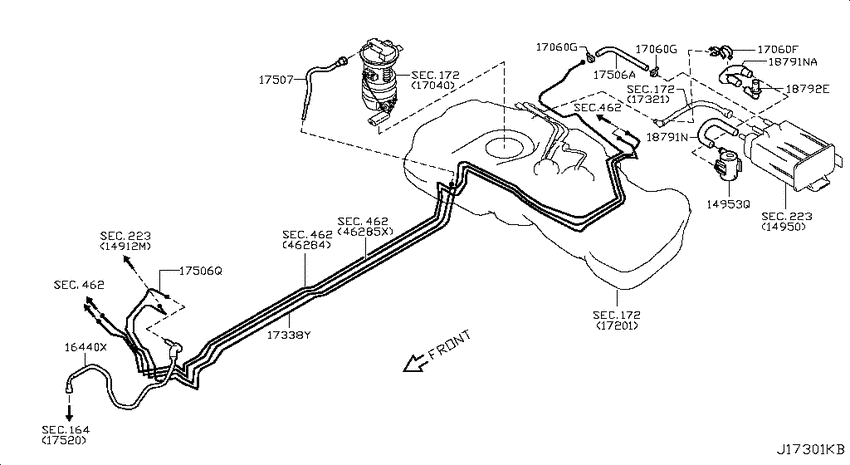

Fuel piping (2009-10-01 ~ ; FUEL PIPING) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14953Q
|
14953Q
14953-JA80A
Filter-Canister
2009-02-01 ~ ; MR18DE; , |
14953-JA80A |
— | ||
|
164
|
Fuel strainer & fuel hose
164
|
||||
|
16440X
|
16440X
16440-1FD0A
Hose-fuel
2009-02-01 ~ ; MR18DE; , |
16440-1FD0A |
— | ||
|
17060F
|
17060F
24220-1FC0A
Clip
2009-02-01 ~ ; MR18DE; , |
24220-1FC0A |
— | ||
|
17060G
|
17060G
1643942L0A Clamp-Hose A2009-02-01 ~ ; MR18DE; , |
1643942L0A |
from US $4.68 |
||
|
17060G
|
17060G
1643942L0A Clamp-Hose A2009-02-01 ~ ; MR18DE; , |
1643942L0A |
from US $4.68 |
||
|
172
|
Fuel tank
172
|
||||
|
172
|
Fuel tank
172
|
||||
|
172
|
Fuel tank
172
|
||||
|
17338Y
|
17338Y
17338-1FC0A
Tube-Breather
2009-02-01 ~ ; MR18DE; , |
17338-1FC0A |
— | ||
|
17506A
|
17506A
17335-1FC0A
Hose-Fuel
2009-02-01 ~ ; MR18DE; , |
17335-1FC0A |
— | ||
|
17506Q
|
17506Q
17506-1FC0A
Tube-fuel feed
2009-02-01 ~ ; MR18DE; , |
17506-1FC0A |
— | ||
|
17507
|
17507
17507-1FC0A
Tube-fuel,feed
2009-02-01 ~ ; MR18DE; , |
17507-1FC0A |
— | ||
|
18791N
|
18791N
18791-1FC0A
Hose-Drain, Canister
2009-02-01 ~ ; MR18DE; , |
18791-1FC0A |
— | ||
|
18791N
|
18791N
18791-1FC0B
Hose-Drain, Canister
2009-02-01 ~ ; MR18DE; , |
18791-1FC0B |
— | ||
|
18791NA
|
18791NA
18791-1FC0B
Hose-Drain, Canister
2009-02-01 ~ ; MR18DE; , |
18791-1FC0B |
— | ||
|
18792E
|
18792E
18792-1FC0A
Connector-Emission Control Hose
2009-02-01 ~ ; MR18DE; , |
18792-1FC0A |
— | ||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
