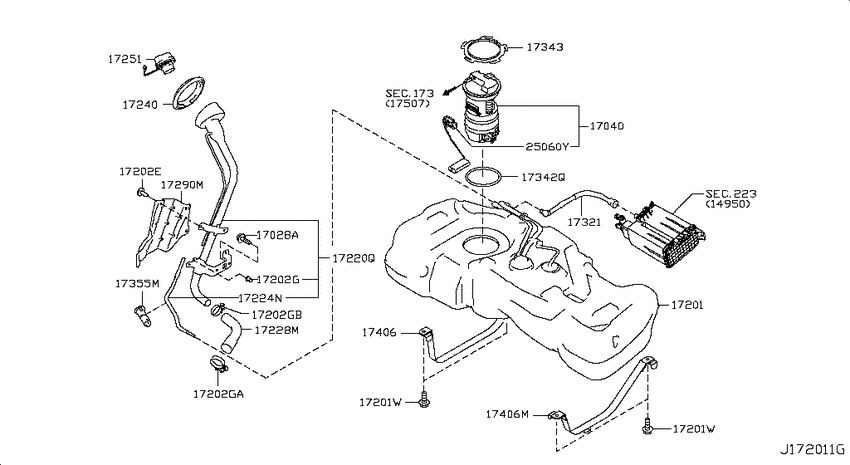

Fuel tank (2009-02-01 ~ ; MR18DE) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17028A
|
17028A
01125-N8021 Bolt2009-02-01 ~ ; MR18DE; , |
01125-N8021 |
from US $0.87 |
||
|
17040
|
17040
17040-1FC0A
Fuel Pump-In Tank
2009-02-01 ~ ; MR18DE; , |
17040-1FC0A |
— | ||
| replacement | |||||
|
17040
|
17040
17040-1FC0B
Fuel Pump-In Tank
2009-02-01 ~ ; MR18DE; , |
17040-1FC0B |
— | ||
|
17201
|
17201
17202-1FC0A
Tank Assy-Fuel
2009-02-01 ~ ; MR18DE; , |
17202-1FC0A |
— | ||
|
17201
|
17201
9894500Q0A Screw2009-02-01 ~ ; MR18DE; , |
9894500Q0A |
US $1.73 |
||
|
17201W
|
17201W
9894500Q0A Screw2009-02-01 ~ ; MR18DE; , |
9894500Q0A |
US $1.73 |
||
|
17201W
|
17201W
9894500Q0A Screw2009-02-01 ~ ; MR18DE; , |
9894500Q0A |
US $1.73 |
||
|
17202E
|
17202E
66820AX020 Clip2009-02-01 ~ ; MR18DE; , |
66820AX020 |
from US $0.78 |
||
|
17202G
|
17202G
16439-EM30A
Clamp
2009-02-01 ~ ; MR18DE; , |
16439-EM30A |
— | ||
|
17202G
|
17202G
16439-7S005
Clamp
2009-02-01 ~ ; MR18DE; , |
16439-7S005 |
— | ||
|
17202G
|
17202G
16439-7S000
Clamp
2009-02-01 ~ ; MR18DE; , |
16439-7S000 |
— | ||
|
17202GA
|
17202GA
16439-7S005
Clamp
2009-02-01 ~ ; MR18DE; , |
16439-7S005 |
— | ||
|
17202GB
|
17202GB
16439-7S000
Clamp
2009-02-01 ~ ; MR18DE; , |
16439-7S000 |
— | ||
|
17220Q
|
17220Q
17221-1FC0A
Tube Assy-Filler
2009-02-01 ~ ; MR18DE; , |
17221-1FC0A |
— | ||
|
17224N
|
17224N
17224-1FC0B
Tube Assy-Ventilation
2009-02-01 ~ ; MR18DE; , |
17224-1FC0B |
— | ||
|
17228M
|
17228M
17228-1FC0A
Hose-Filler
2009-02-01 ~ ; MR18DE; , |
17228-1FC0A |
— | ||
|
17240
|
17240
17240AN000 Grommet-Filler Base2009-02-01 ~ ; MR18DE; , |
17240AN000 |
from US $7.76 |
||
|
17251
|
17251
17251-8U600
Cap Assy-Filler
2009-02-01 ~ ; MR18DE; , |
17251-8U600 |
— | ||
|
17290M
|
17290M
17290-1FC0A
Protector-Filler Tube
2009-02-01 ~ 2009-10-01; MR18DE; , |
17290-1FC0A |
— | ||
|
17290M
|
17290M
17290-1FC0B
Protector-Filler Tube
2009-10-01 ~ ; MR18DE; , |
17290-1FC0B |
— | ||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
17321
|
17321
17321-1FC0A
Hose-Breather
2009-02-01 ~ ; MR18DE; , |
17321-1FC0A |
— | ||
|
17342Q
|
17342Q
17342-EM30A
Packing-Fuel Gauge
2009-02-01 ~ ; MR18DE; , |
17342-EM30A |
— | ||
|
17343
|
17343
17343-JM00A
Plate-Lock, Fuel Gauge
2009-02-01 ~ ; MR18DE; , |
17343-JM00A |
— | ||
|
17355M
|
17355M
75594-1FC0A
Protector
2009-02-01 ~ ; MR18DE; , |
75594-1FC0A |
— | ||
|
17406
|
17406
17406-1FC0A Band Assy-Fuel Tank Mounting2009-02-01 ~ ; MR18DE; , |
17406-1FC0A |
US $46.37 |
||
|
17406
|
17406
17407-1FC0A
Band Assy-Fuel Tank, Mounting
2009-02-01 ~ ; MR18DE; , |
17407-1FC0A |
— | ||
|
17406M
|
17406M
17407-1FC0A
Band Assy-Fuel Tank, Mounting
2009-02-01 ~ ; MR18DE; , |
17407-1FC0A |
— | ||
|
223
|
Vacuum piping
223
|
||||
|
25060Y
|
25060Y
25060-1FC1A
Fuel Level Sensor
2009-02-01 ~ ; MR18DE; , |
25060-1FC1A |
— | ||
