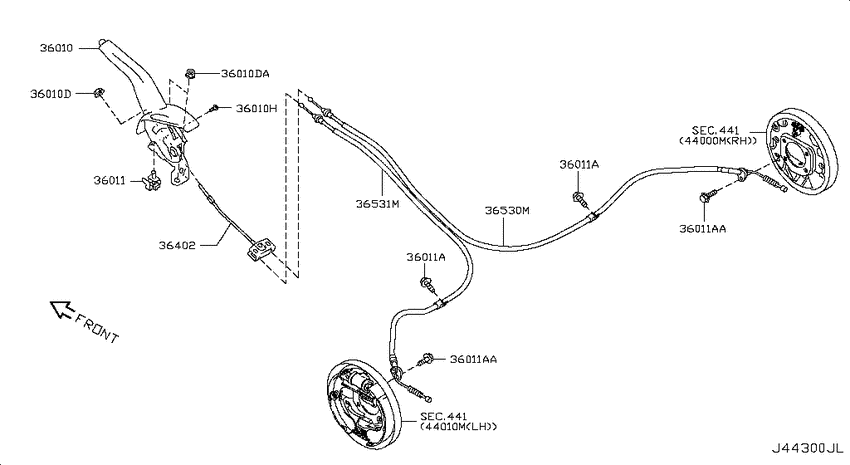

Parking brake control (2009-02-01 ~ ; MR18DE) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36010
|
36010
36010-1FC0A
Device Assy-Parking Brake Control
2009-02-01 ~ 2009-07-01; MR18DE; , |
36010-1FC0A |
— | ||
|
36010
|
36010
36010-1FC1A
Device Assy-Parking Brake Control
2009-07-01 ~ ; MR18DE; , |
36010-1FC1A |
— | ||
|
36010
|
36010
0122500901 NUT2009-02-01 ~ ; MR18DE; , |
0122500901 |
from US $0.72 |
||
|
36010
|
36010
01225N0011 Nut2009-02-01 ~ ; MR18DE; , |
01225N0011 |
from US $0.68 |
||
|
36010
|
36010
0145400431 SCREW2009-02-01 ~ ; MR18DE; , |
0145400431 |
from US $0.61 |
||
|
36010D
|
36010D
0122500901 NUT2009-02-01 ~ ; MR18DE; , |
0122500901 |
from US $0.72 |
||
|
36010D
|
36010D
01225N0011 Nut2009-02-01 ~ ; MR18DE; , |
01225N0011 |
from US $0.68 |
||
|
36010DA
|
36010DA
01225N0011 Nut2009-02-01 ~ ; MR18DE; , |
01225N0011 |
from US $0.68 |
||
|
36010H
|
36010H
0145400431 SCREW2009-02-01 ~ ; MR18DE; , |
0145400431 |
from US $0.61 |
||
|
36011
|
36011
36011AX010 Switch Assy-Parking Brake Lamp2009-02-01 ~ ; MR18DE; , |
36011AX010 |
from US $6.05 |
||
|
36011
|
36011
01125N6021 Bolt2009-02-01 ~ 2009-07-01; MR18DE; , |
01125N6021 |
US $1.61 |
||
|
36011
|
36011
01125-N6121 Bolt2009-07-01 ~ ; MR18DE; , |
01125-N6121 |
US $2.45 |
||
|
36011
|
36011
01121-06771 BOLT2009-02-01 ~ ; MR18DE; , |
01121-06771 |
US $1.73 |
||
|
36011A
|
36011A
01125N6021 Bolt2009-02-01 ~ 2009-07-01; MR18DE; , |
01125N6021 |
US $1.61 |
||
|
36011A
|
36011A
01125-N6121 Bolt2009-07-01 ~ ; MR18DE; , |
01125-N6121 |
US $2.45 |
||
|
36011A
|
36011A
01121-06771 BOLT2009-02-01 ~ ; MR18DE; , |
01121-06771 |
US $1.73 |
||
|
36011A
|
36011A
01125N6021 Bolt2009-02-01 ~ 2009-07-01; MR18DE; , |
01125N6021 |
US $1.61 |
||
|
36011A
|
36011A
01125-N6121 Bolt2009-07-01 ~ ; MR18DE; , |
01125-N6121 |
US $2.45 |
||
|
36011A
|
36011A
01121-06771 BOLT2009-02-01 ~ ; MR18DE; , |
01121-06771 |
US $1.73 |
||
|
36011AA
|
36011AA
01121-06771 BOLT2009-02-01 ~ ; MR18DE; , |
01121-06771 |
US $1.73 |
||
|
36011AA
|
36011AA
01121-06771 BOLT2009-02-01 ~ ; MR18DE; , |
01121-06771 |
US $1.73 |
||
|
36402
|
36402
36402-1FC1A
Cable Assy-Parking Brake, Front
2009-07-01 ~ ; MR18DE; , |
36402-1FC1A |
— | ||
|
36402
|
36402
36402-AX010 Cable Assy-Parking Brake, Front2009-02-01 ~ 2009-07-01; MR18DE; , |
36402-AX010 |
US $23.04 |
||
|
36530M
|
36530M
36530-1FC0A
Cable Assy-Parking, Rear Rh
2009-02-01 ~ ; MR18DE; , |
36530-1FC0A |
— | ||
|
36531M
|
36531M
36531-1FC0A
Cable Assy-Parking, Rear Lh
2009-02-01 ~ ; MR18DE; , |
36531-1FC0A |
— | ||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
