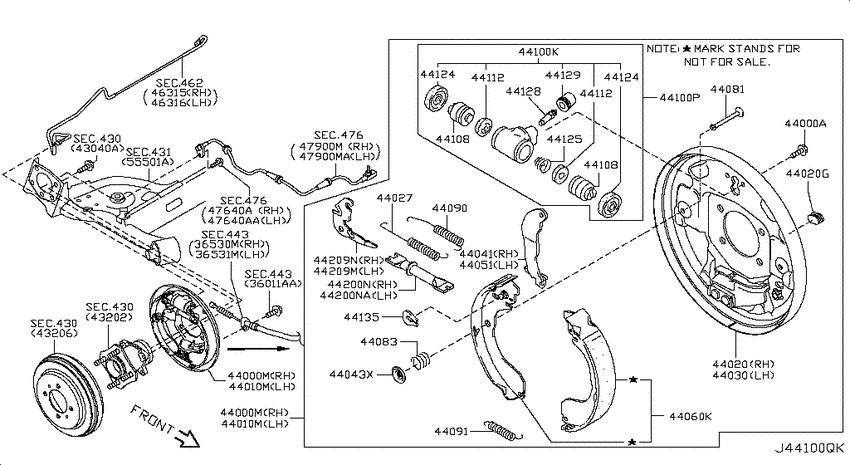

Rear brake (2009-02-01 ~ ; MR18DE) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
430
|
Rear axle
430
|
||||
|
430
|
Rear axle
430
|
||||
|
430
|
Rear axle
430
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
44000A
|
44000A
44005-AX000 Bolt2009-02-01 ~ ; MR18DE; , |
44005-AX000 |
US $2.45 |
||
|
44000M
|
44000M
44000-CJ40B
Brake Assy-Drum, Rear Rh
2009-02-01 ~ ; MR18DE; , |
44000-CJ40B |
— | ||
|
44000M
|
44000M
44000-CJ40B
Brake Assy-Drum, Rear Rh
2009-02-01 ~ ; MR18DE; , |
44000-CJ40B |
— | ||
|
44010M
|
44010M
44010-CJ40B
Brake Assy-Drum, Rear Lh
2009-02-01 ~ ; MR18DE; , |
44010-CJ40B |
— | ||
|
44010M
|
44010M
44010-CJ40B
Brake Assy-Drum, Rear Lh
2009-02-01 ~ ; MR18DE; , |
44010-CJ40B |
— | ||
|
44020
|
44020
440204V00A Plate Assy-Back, Rear Brake Rh2009-02-01 ~ ; MR18DE; , |
440204V00A |
US $85.39 |
||
|
44020
|
44020
462893U801 Clamp2009-02-01 ~ ; W; , |
462893U801 |
US $3.46 |
||
|
44020
|
44020
44098-ED001 Plug2009-02-01 ~ ; MR18DE; , |
44098-ED001 |
US $4.71 |
||
|
44020
|
44020
462715V005 Insulator2009-02-01 ~ ; W; , |
462715V005 |
from US $3.83 |
||
|
44020G
|
44020G
44098-ED001 Plug2009-02-01 ~ ; MR18DE; , |
44098-ED001 |
US $4.71 |
||
|
44027
|
44027
44214-ED000 Spring-Adjusting, Rear Brake2009-02-01 ~ ; MR18DE; , |
44214-ED000 |
from US $2.45 |
||
|
44030
|
44030
44030-4V00A Plate Assy-Back, Rear Brake Lh2009-02-01 ~ ; MR18DE; , |
44030-4V00A |
US $85.39 |
||
|
44041
|
44041
44041-EN000 Lever-Toggle, Rh2009-02-01 ~ ; MR18DE; , |
44041-EN000 |
US $42.84 |
||
|
44043X
|
44043X
44043L010A Retainer-Spring, Anti Shoe Rattle2009-02-01 ~ ; MR18DE; , |
44043L010A |
from US $1.67 |
||
|
44051
|
44051
44051-EN000 Lever-Toggle, Lh2009-02-01 ~ ; MR18DE; , |
44051-EN000 |
US $42.84 |
||
|
44060K
|
44060K
D4060-EN00A
Shoe Set-Rear Brake
2009-02-01 ~ ; MR18DE; , |
D4060-EN00A |
— | ||
|
44081
|
44081
44081-M4901 Pin-Fixing Shoe2009-02-01 ~ ; MR18DE; , |
44081-M4901 |
from US $1.04 |
||
|
44083
|
44083
44083-72B10 Spring-Anti Shoe Rattle2009-02-01 ~ ; MR18DE; , |
44083-72B10 |
US $1.82 |
||
|
44090
|
44090
44090-ED000 Spring-Return, Rear Brake Shoe2009-02-01 ~ ; MR18DE; , |
44090-ED000 |
from US $4.18 |
||
|
44091
|
44091
44091-ED000 Spring-Return, Rear Brake Shoe2009-02-01 ~ ; MR18DE; , |
44091-ED000 |
US $2.45 |
||
|
44100K
|
44100K
D4100-CX085 Cup Kit-Brake Wheel Cylinder, Rear2009-02-01 ~ ; MR18DE; , |
D4100-CX085 |
US $17.33 |
||
|
44100P
|
44100P
44100-ET000 Cylinder Assy-Rear Wheel2009-02-01 ~ ; MR18DE; AKEBONO 5/8(15.87) |
44100-ET000 |
US $66.13 |
||
|
44108
|
44108
44108-ET000 Piston-Cylinder2009-02-01 ~ ; MR18DE; AKEBONO |
44108-ET000 |
US $15.55 |
||
|
44108
|
44108
44108-ET000 Piston-Cylinder2009-02-01 ~ ; MR18DE; AKEBONO |
44108-ET000 |
US $15.55 |
||
|
44112
|
44112
44112-AE000
Cup-Piston
2009-02-01 ~ ; MR18DE; AKEBONO |
44112-AE000 |
— | ||
| replacement | |||||
|
44112
|
44112
44112-2U600
Cup-Piston
2009-02-01 ~ ; MR18DE; AKEBONO |
44112-2U600 |
— | ||
|
44112
|
44112
44112-AE000
Cup-Piston
2009-02-01 ~ ; MR18DE; AKEBONO |
44112-AE000 |
— | ||
| replacement | |||||
|
44112
|
44112
44112-2U600
Cup-Piston
2009-02-01 ~ ; MR18DE; AKEBONO |
44112-2U600 |
— | ||
|
44124
|
44124
441242U600 Cover-Dust2009-02-01 ~ ; MR18DE; , |
441242U600 |
US $2.45 |
||
|
44124
|
44124
441242U600 Cover-Dust2009-02-01 ~ ; MR18DE; , |
441242U600 |
US $2.45 |
||
|
44125
|
44125
44125-ED010 Spring2009-02-01 ~ ; MR18DE; , |
44125-ED010 |
US $4.18 |
||
|
44128
|
44128
44128-72B10 Screw-Bleeder2009-02-01 ~ ; MR18DE; , |
44128-72B10 |
US $6.91 |
||
|
44129
|
44129
44129-L0700 Cap-Bleeder Screw2009-02-01 ~ ; MR18DE; , |
44129-L0700 |
US $1.73 |
||
|
44135
|
44135
44222M490A Ring-Retaining2009-02-01 ~ ; MR18DE; , |
44222M490A |
from US $0.81 |
||
|
44200N
|
44200N
44200-EN000 Adjuster Assy-Rear Brake, Rh2009-02-01 ~ ; MR18DE; , |
44200-EN000 |
from US $55.73 |
||
|
44200N
|
44200N
44201-EN000 Adjuster Assy-Rear Brake, Lh2009-02-01 ~ ; MR18DE; , |
44201-EN000 |
US $55.73 |
||
|
44200NA
|
44200NA
44201-EN000 Adjuster Assy-Rear Brake, Lh2009-02-01 ~ ; MR18DE; , |
44201-EN000 |
US $55.73 |
||
|
44209M
|
44209M
44211-ED000 Lever Assy-Adjuster, Lh2009-02-01 ~ ; MR18DE; , |
44211-ED000 |
US $13.39 |
||
|
44209N
|
44209N
44210-ED000 Lever Assy-Adjuster, Rh2009-02-01 ~ ; MR18DE; , |
44210-ED000 |
from US $13.39 |
||
|
443
|
Parking brake control
443
|
||||
|
443
|
Parking brake control
443
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
476
|
Anti skid control
476
|
||||
|
476
|
Anti skid control
476
|
||||
|
476
|
Anti skid control
476
|
||||
|
476
|
Anti skid control
476
|
||||
