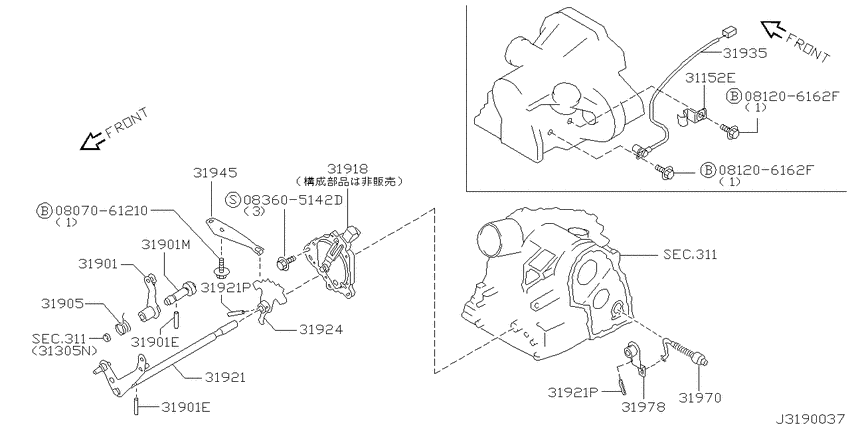

Control switch & system (1999-11-01 ~ ; AT.F4) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0807061210
|
0807061210
08070-61210
BOLT
|
08070-61210 |
— | ||
|
081206162F
|
081206162F
081206162F
BOLTHEX
|
081206162F |
— | ||
|
081206162F
|
081206162F
081206162F
BOLTHEX
|
081206162F |
— | ||
|
083605142D
|
083605142D
08360-5142D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5142D |
— | ||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
31152E
|
31152E
24210-33X00 Clip9911--01 ~ ; AT.F4 |
24210-33X00 |
US $12.53 |
||
|
31901
|
31901
31901-31X00 Lever-Throttle9911--01 ~ ; AT.F4 |
31901-31X00 |
US $6.19 |
||
|
31901
|
31901
3192621X00 Pin-Spring9911--01 ~ 0009--01; AT.F4 |
3192621X00 |
US $0.86 |
||
|
31901
|
31901
31906-31X01 Shaft-Throttle9911--01 ~ ; AT.F4 |
31906-31X01 |
US $17.71 |
||
|
31901E
|
31901E
3192621X00 Pin-Spring9911--01 ~ 0009--01; AT.F4 |
3192621X00 |
US $0.86 |
||
|
31901E
|
31901E
3192621X00 Pin-Spring9911--01 ~ 0009--01; AT.F4 |
3192621X00 |
US $0.86 |
||
|
31901M
|
31901M
31906-31X01 Shaft-Throttle9911--01 ~ ; AT.F4 |
31906-31X01 |
US $17.71 |
||
|
31905
|
31905
31905-31X02 Spring-Return9911--01 ~ ; AT.F4 |
31905-31X02 |
US $1.73 |
||
|
31918
|
31918
31918-31X07 Switch Assy-Pnp(Inhibitor)9911--01 ~ 0104--01; AT.F4 |
31918-31X07 |
US $90.29 |
||
| replacement | |||||
|
31918
|
31918
3191831X15 Switch Assy-Pnp(Inhibitor)9911--01 ~ 0104--01; AT.F4 |
3191831X15 |
US $78.19 |
||
|
31918
|
31918
3191831X15 Switch Assy-Pnp(Inhibitor)0104--01 ~ ; AT.F4 |
3191831X15 |
US $78.19 |
||
|
31921
|
31921
31920-31X24 Shaft Assy-Manual9911--01 ~ ; AT.F4 |
31920-31X24 |
US $24.62 |
||
|
31921
|
31921
3229214600 Pin-Retaining9911--01 ~ ; AT.F4 |
3229214600 |
US $0.82 |
||
|
31921P
|
31921P
3229214600 Pin-Retaining9911--01 ~ ; AT.F4 |
3229214600 |
US $0.82 |
||
|
31921P
|
31921P
3229214600 Pin-Retaining9911--01 ~ ; AT.F4 |
3229214600 |
US $0.82 |
||
|
31924
|
31924
31925-80X04 Plate Assy-Manual9911--01 ~ ; AT.F4 |
31925-80X04 |
US $15.55 |
||
|
31935
|
31935
31935-3AX00 Sensor Assy-Revolution9911--01 ~ 0009--01; AT.F4 |
31935-3AX00 |
US $124.42 |
||
|
31935
|
31935
31935-3AX01 Sensor Assy-Revolution0009--01 ~ ; AT.F4 |
31935-3AX01 |
US $124.42 |
||
|
31945
|
31945
31945-31X00 Spring-Detent9911--01 ~ ; AT.F4 |
31945-31X00 |
US $6.19 |
||
|
31970
|
31970
3197031X03 Rod Assy-Parking9911--01 ~ ; AT.F4 |
3197031X03 |
US $13.54 |
||
|
31978
|
31978
31978-31X06 Plate Assy-Rod0110--01 ~ ; AT.F4 |
31978-31X06 |
US $22.18 |
||
|
31978
|
31978
31979-31X03 Plate Assy-Rod9911--01 ~ 0110--01; AT.F4 |
31979-31X03 |
US $22.18 |
||
