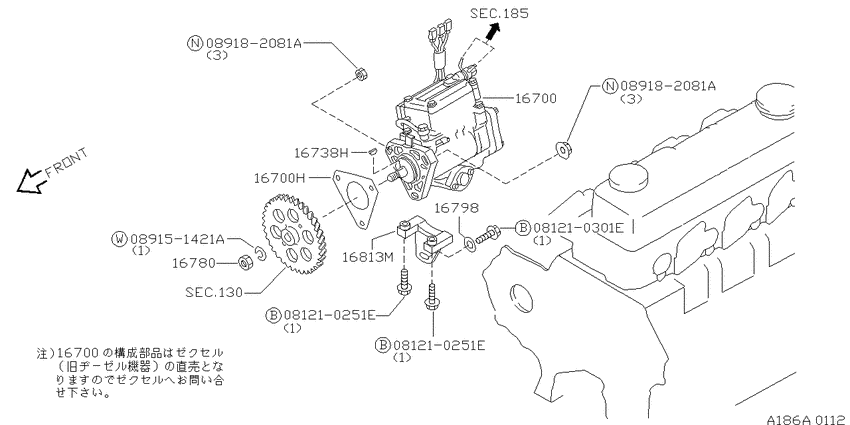

Fuel injection pump (1997-05-01 ~ 1998-10-01; QD32ETI) Diagram Nissan ELGRAND
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- QD32ETI
- drive
- 2WD
- transmission
- AT
- grade
- J
- body
- K
- capacity
- 8P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
089182081A
|
089182081A
089182081A NUTHEX |
089182081A |
US $2.21 |
||
|
089182081A
|
089182081A
089182081A NUTHEX |
089182081A |
US $2.21 |
||
|
130
|
Camshaft & valve mechanism
130
|
||||
|
130
|
Camshaft & valve mechanism
130
|
||||
|
16700
|
16700
16700-VE000 Pump Assy-Injection9705--01 ~ 9810--01; QD32ETI |
16700-VE000 |
US $2,800 |
||
|
16700
|
16700
16701R8100 Gasket-Injection Pump9705--01 ~ 9810--01; QD32ETI |
16701R8100 |
from US $1.59 |
||
|
16700H
|
16700H
16701R8100 Gasket-Injection Pump9705--01 ~ 9810--01; QD32ETI |
16701R8100 |
from US $1.59 |
||
|
16738H
|
16738H
1674237501 Key-Woodruff9705--01 ~ 9810--01; QD32ETI; [B421] |
1674237501 |
from US $0.97 |
||
|
16780
|
16780
01211-01054 NUT9705--01 ~ 9810--01; QD32ETI |
01211-01054 |
US $2.21 |
||
|
16798
|
16798
16420-43G00 Washer9705--01 ~ 9810--01; QD32ETI |
16420-43G00 |
US $4.90 |
||
|
16813M
|
16813M
16814-VE000 Bracket-Injection9705--01 ~ 9810--01; QD32ETI |
16814-VE000 |
US $25.06 |
||
|
185
|
Fuel supply system
185
|
||||
|
185
|
Fuel supply system
185
|
||||
|
185
|
Fuel supply system
185
|
||||
|
185
|
Fuel supply system
185
|
||||
