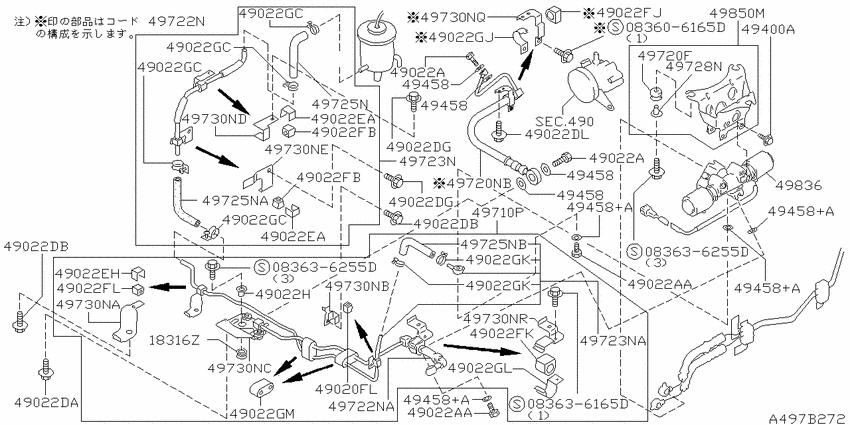

Power steering piping (1992-06-01 ~ ; エンジン ルーム (NO.2); VH41DE) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- TYPE/X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083606165D
|
083606165D
083606165D Rope & Hook |
083606165D |
US $1.52 |
||
|
083636165D
|
083636165D
08363-6165D
Rope & Hook
|
08363-6165D |
— | ||
| replacement | |||||
|
083636165D
|
083636165D
083606165D Rope & Hook |
083606165D |
US $1.52 |
||
|
083636255D
|
083636255D
08363-6255D
Screw
|
08363-6255D |
— | ||
| replacement | |||||
|
083636255D
|
083636255D
08360-6255D SCREWMACHINE |
08360-6255D |
US $1.93 |
||
|
083636255D
|
083636255D
08363-6255D
Screw
|
08363-6255D |
— | ||
| replacement | |||||
|
083636255D
|
083636255D
08360-6255D SCREWMACHINE |
08360-6255D |
US $1.93 |
||
|
18316Z
|
18316Z
18316S3260 Bush9206--01 ~ ; VH41DE |
18316S3260 |
US $4.71 |
||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
49020FL
|
49020FL
49733-01C00 Insulator9206--01 ~ ; VH41DE |
49733-01C00 |
US $5.33 |
||
|
49022A
|
49022A
0161900011 BOLT9206--01 ~ ; VH41DE |
0161900011 |
from US $3.76 |
||
|
49022A
|
49022A
0161900011 BOLT9206--01 ~ ; VH41DE |
0161900011 |
from US $3.76 |
||
|
49022A
|
49022A
49738-30P00 Bolt9206--01 ~ ; VH41DE |
49738-30P00 |
US $5.18 |
||
|
49022A
|
49022A
0161900011 BOLT9206--01 ~ ; VH41DE |
0161900011 |
from US $3.76 |
||
|
49022A
|
49022A
0161900011 BOLT9206--01 ~ ; VH41DE |
0161900011 |
from US $3.76 |
||
|
49022A
|
49022A
49738-30P00 Bolt9206--01 ~ ; VH41DE |
49738-30P00 |
US $5.18 |
||
|
49022AA
|
49022AA
0161900011 BOLT9206--01 ~ ; VH41DE |
0161900011 |
from US $3.76 |
||
|
49022AA
|
49022AA
0161900011 BOLT9206--01 ~ ; VH41DE |
0161900011 |
from US $3.76 |
||
|
49022DA
|
49022DA
01436-01441 SCREW9206--01 ~ ; VH41DE |
01436-01441 |
US $5.62 |
||
|
49022DB
|
49022DB
01436-01421 SCREW9206--01 ~ ; VH41DE |
01436-01421 |
US $3.46 |
||
|
49022DB
|
49022DB
01436-01421 SCREW9206--01 ~ ; VH41DE |
01436-01421 |
US $3.46 |
||
|
49022DG
|
49022DG
0143601161
SCREW
9206--01 ~ ; VH41DE |
0143601161 |
— | ||
| replacement | |||||
|
49022DG
|
49022DG
08368-6125G ｽｸﾘﾕ-9206--01 ~ ; VH41DE |
08368-6125G |
US $2.21 |
||
|
49022DG
|
49022DG
0143601161
SCREW
9206--01 ~ ; VH41DE |
0143601161 |
— | ||
| replacement | |||||
|
49022DG
|
49022DG
08368-6125G ｽｸﾘﾕ-9206--01 ~ ; VH41DE |
08368-6125G |
US $2.21 |
||
|
49022DL
|
49022DL
01436-01421 SCREW9206--01 ~ ; VH41DE |
01436-01421 |
US $3.46 |
||
|
49022EA
|
49022EA
49732-36E00 BRACKET-POWER STEERING TUBE9206--01 ~ ; VH41DE |
49732-36E00 |
US $9.79 |
||
|
49022EA
|
49022EA
49732-36E00 BRACKET-POWER STEERING TUBE9206--01 ~ ; VH41DE |
49732-36E00 |
US $9.79 |
||
|
49022EH
|
49022EH
49732-36E00 BRACKET-POWER STEERING TUBE9206--01 ~ ; VH41DE |
49732-36E00 |
US $9.79 |
||
|
49022FB
|
49022FB
49733-55M00 Insulator9206--01 ~ ; VH41DE |
49733-55M00 |
US $4.57 |
||
|
49022FB
|
49022FB
49733-55M00 Insulator9206--01 ~ ; VH41DE |
49733-55M00 |
US $4.57 |
||
|
49022FJ
|
49022FJ
49733-C9900 Insulator9206--01 ~ ; VH41DE |
49733-C9900 |
US $1.73 |
||
|
49022FK
|
49022FK
49733-C9900 Insulator9206--01 ~ ; VH41DE |
49733-C9900 |
US $1.73 |
||
|
49022FL
|
49022FL
49733-55M00 Insulator9206--01 ~ ; VH41DE |
49733-55M00 |
US $4.57 |
||
|
49022GC
|
49022GC
0155500691 CLAMP9206--01 ~ ; VH41DE |
0155500691 |
from US $2.11 |
||
|
49022GC
|
49022GC
0155500691 CLAMP9206--01 ~ ; VH41DE |
0155500691 |
from US $2.11 |
||
|
49022GC
|
49022GC
0155500691 CLAMP9206--01 ~ ; VH41DE |
0155500691 |
from US $2.11 |
||
|
49022GC
|
49022GC
0155500691 CLAMP9206--01 ~ ; VH41DE |
0155500691 |
from US $2.11 |
||
|
49022GJ
|
49022GJ
49732-79907 Clamp9206--01 ~ ; VH41DE |
49732-79907 |
US $5.04 |
||
|
49022GK
|
49022GK
0155500691 CLAMP9206--01 ~ ; VH41DE |
0155500691 |
from US $2.11 |
||
|
49022GK
|
49022GK
0155500691 CLAMP9206--01 ~ ; VH41DE |
0155500691 |
from US $2.11 |
||
|
49022GL
|
49022GL
49732-79907 Clamp9206--01 ~ ; VH41DE |
49732-79907 |
US $5.04 |
||
|
49022GM
|
49022GM
4973279918 Clip-Power Steering Tube9206--01 ~ ; VH41DE |
4973279918 |
US $5.18 |
||
|
49022H
|
49022H
49728-55S00
Collar
9206--01 ~ ; VH41DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49022H
|
49022H
49728-55S0A Collar-Insulator9206--01 ~ ; VH41DE |
49728-55S0A |
US $2.64 |
||
|
49400A
|
49400A
01121-04671 BOLT9206--01 ~ ; VH41DE |
01121-04671 |
US $7.34 |
||
|
49458
|
49458
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458
|
49458
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458
|
49458
4972650W00 Seal-O Ring9206--01 ~ ; VH41DE |
4972650W00 |
from US $1.94 |
||
|
49458
|
49458
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458
|
49458
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458
|
49458
4972650W00 Seal-O Ring9206--01 ~ ; VH41DE |
4972650W00 |
from US $1.94 |
||
|
49458
|
49458
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458
|
49458
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458
|
49458
4972650W00 Seal-O Ring9206--01 ~ ; VH41DE |
4972650W00 |
from US $1.94 |
||
|
49458
|
49458
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458
|
49458
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458
|
49458
4972650W00 Seal-O Ring9206--01 ~ ; VH41DE |
4972650W00 |
from US $1.94 |
||
|
49458+A
|
49458+A
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458+A
|
49458+A
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458+A
|
49458+A
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49458+A
|
49458+A
49726Y0100 Washer-Copper9206--01 ~ ; VH41DE |
49726Y0100 |
from US $1.72 |
||
|
49710P
|
49710P
49710-16Y60 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｾﾂﾄ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾊｲｷﾔｽ9206--01 ~ ; VH41DE |
49710-16Y60 |
US $587.64 |
||
|
49710P
|
49710P
49710-16Y65 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｾﾂﾄ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾊｲｷﾔｽ9206--01 ~ ; VH41DE |
49710-16Y65 |
US $784.46 |
||
|
49710P
|
49710P
49710-16Y15 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｾﾂﾄ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾊｲｷﾔｽ9206--01 ~ ; VH41DE |
49710-16Y15 |
US $393.65 |
||
|
49710P
|
49710P
49710-16Y16 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｾﾂﾄ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾊｲｷﾔｽ9206--01 ~ ; VH41DE |
49710-16Y16 |
US $393.65 |
||
|
49720F
|
49720F
18316S3260 Bush9206--01 ~ ; VH41DE |
18316S3260 |
US $4.71 |
||
|
49720NB
|
49720NB
49720-16Y61 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49720-16Y61 |
US $376.66 |
||
|
49722N
|
49722N
49720-16Y60 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49720-16Y60 |
US $393.65 |
||
|
49722N
|
49722N
49720-16Y62 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49720-16Y62 |
US $1,132.80 |
||
|
49722NA
|
49722NA
49720-16Y62 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49720-16Y62 |
US $1,132.80 |
||
|
49723N
|
49723N
49721-16Y60 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49721-16Y60 |
US $161.28 |
||
|
49723N
|
49723N
49721-16Y62 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49721-16Y62 |
US $161.28 |
||
|
49723NA
|
49723NA
49721-16Y62 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49721-16Y62 |
US $161.28 |
||
|
49725N
|
49725N
49725-11Y60 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49725-11Y60 |
US $40.18 |
||
|
49725N
|
49725N
49725-16Y61 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49725-16Y61 |
US $40.18 |
||
|
49725N
|
49725N
49725-11Y62 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49725-11Y62 |
US $40.18 |
||
|
49725NA
|
49725NA
49725-16Y61 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49725-16Y61 |
US $40.18 |
||
|
49725NB
|
49725NB
49725-11Y62 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49725-11Y62 |
US $40.18 |
||
|
49728N
|
49728N
49728-55S00
Collar
9206--01 ~ ; VH41DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728N
|
49728N
49728-55S0A Collar-Insulator9206--01 ~ ; VH41DE |
49728-55S0A |
US $2.64 |
||
|
49730NA
|
49730NA
49730-11Y61 ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ9206--01 ~ ; VH41DE |
49730-11Y61 |
US $14.26 |
||
|
49730NB
|
49730NB
49730-11Y63 ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ9206--01 ~ ; VH41DE |
49730-11Y63 |
US $14.26 |
||
|
49730NC
|
49730NC
49730-16Y60 ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ9206--01 ~ ; VH41DE |
49730-16Y60 |
US $14.26 |
||
|
49730ND
|
49730ND
49730-11Y00 ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ9206--01 ~ ; VH41DE |
49730-11Y00 |
US $14.26 |
||
|
49730NE
|
49730NE
49730-11Y60 ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ9206--01 ~ ; VH41DE |
49730-11Y60 |
US $14.26 |
||
|
49730NQ
|
49730NQ
49730-16Y61 ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ9206--01 ~ ; VH41DE |
49730-16Y61 |
US $14.26 |
||
|
49730NR
|
49730NR
49730-0P810 Bracket-Tube9206--01 ~ ; VH41DE |
49730-0P810 |
US $13.25 |
||
|
49836
|
49836
49836-0P800 Valve Assy-Pressure Control9206--01 ~ ; VH41DE |
49836-0P800 |
US $1,470 |
||
|
49850M
|
49850M
49850-0P800 Bracket Assy-Valve Mounting9206--01 ~ ; VH41DE |
49850-0P800 |
US $87.12 |
||
