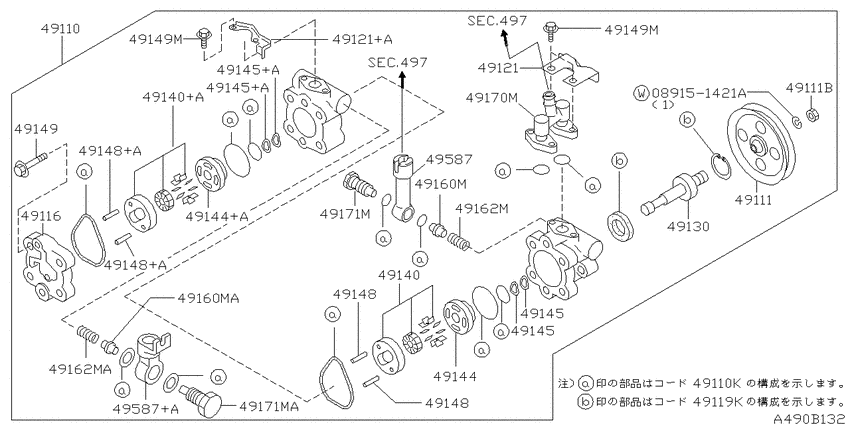

Power steering pump (1992-06-01 ~ ; VH41DE) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- TYPE/X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
49110
|
49110
49110-16Y00 ﾎﾟﾝﾌﾟ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9206--01 ~ ; VH41DE |
49110-16Y00 |
US $1,988 |
||
|
49110
|
49110
49591-63U27 ｼ-ﾙ ｷﾂﾄ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ9206--01 ~ ; VH41DE |
49591-63U27 |
US $27.65 |
||
|
49110K
|
49110K
49591-63U27 ｼ-ﾙ ｷﾂﾄ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ9206--01 ~ ; VH41DE |
49591-63U27 |
US $27.65 |
||
|
49111
|
49111
49132-16Y00 ﾌﾟ-ﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ9206--01 ~ ; VH41DE |
49132-16Y00 |
US $111.60 |
||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump9206--01 ~ ; VH41DE |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump9206--01 ~ ; VH41DE |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump9206--01 ~ ; VH41DE |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump9206--01 ~ ; VH41DE |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-63U00 Cover-Rear, Power Steering Pump9206--01 ~ 9401--01; VH41DE |
49116-63U00 |
US $40.32 |
||
|
49116
|
49116
49116-63U01 Cover-Rear, Power Steering Pump9401--01 ~ ; VH41DE |
49116-63U01 |
US $49.97 |
||
|
49119K
|
49119K
4911930R28 Seal Kit-Drive Shaft, Power Steering Pump9206--01 ~ ; VH41DE |
4911930R28 |
US $15.26 |
||
|
49121
|
49121
49125-1P100 Bracket Assy-Power Steering Pump9206--01 ~ ; VH41DE |
49125-1P100 |
US $37.01 |
||
|
49121
|
49121
49125-16Y00 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ9206--01 ~ ; VH41DE |
49125-16Y00 |
US $43.34 |
||
|
49121+A
|
49121+A
49125-16Y00 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ9206--01 ~ ; VH41DE |
49125-16Y00 |
US $43.34 |
||
|
49130
|
49130
49130-63U00 Shaft-Drive, Power Steering Pump9206--01 ~ 9401--01; VH41DE |
49130-63U00 |
US $66.10 |
||
|
49130
|
49130
49130-63U01 Shaft-Drive, Power Steering Pump9401--01 ~ ; VH41DE |
49130-63U01 |
US $66.10 |
||
|
49140
|
49140
49140-63U00 Rotor & Camring Set-Power Steering Pump9206--01 ~ ; VH41DE |
49140-63U00 |
US $190.08 |
||
|
49140
|
49140
49140-63U10 Rotor & Camring Set-Power Steering Pump9206--01 ~ ; VH41DE |
49140-63U10 |
US $167.04 |
||
|
49140+A
|
49140+A
49140-63U10 Rotor & Camring Set-Power Steering Pump9206--01 ~ ; VH41DE |
49140-63U10 |
US $167.04 |
||
|
49144
|
49144
49144-63U00 Plate-Side, Power Steering Pump9206--01 ~ ; VH41DE |
49144-63U00 |
US $44.78 |
||
|
49144
|
49144
49144-63U10 Plate-Side, Power Steering Pump9206--01 ~ ; VH41DE |
49144-63U10 |
US $46.08 |
||
|
49144+A
|
49144+A
49144-63U10 Plate-Side, Power Steering Pump9206--01 ~ ; VH41DE |
49144-63U10 |
US $46.08 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate9206--01 ~ ; VH41DE |
49145-15V00 |
US $0.86 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate9206--01 ~ ; VH41DE |
49145-15V00 |
US $0.86 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate9206--01 ~ ; VH41DE |
49145-15V00 |
US $0.86 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate9206--01 ~ ; VH41DE |
49145-15V00 |
US $0.86 |
||
|
49145+A
|
49145+A
49145-15V00 Spring-Side Plate9206--01 ~ ; VH41DE |
49145-15V00 |
US $0.86 |
||
|
49145+A
|
49145+A
49145-15V00 Spring-Side Plate9206--01 ~ ; VH41DE |
49145-15V00 |
US $0.86 |
||
|
49148
|
49148
49148-63U00 Pin-Camring, Power Steering Pump9206--01 ~ ; VH41DE |
49148-63U00 |
US $2.59 |
||
|
49148
|
49148
49148-63U10 Pin-Camring, Power Steering Pump9206--01 ~ ; VH41DE |
49148-63U10 |
US $3.60 |
||
|
49148
|
49148
49148-63U00 Pin-Camring, Power Steering Pump9206--01 ~ ; VH41DE |
49148-63U00 |
US $2.59 |
||
|
49148
|
49148
49148-63U10 Pin-Camring, Power Steering Pump9206--01 ~ ; VH41DE |
49148-63U10 |
US $3.60 |
||
|
49148+A
|
49148+A
49148-63U10 Pin-Camring, Power Steering Pump9206--01 ~ ; VH41DE |
49148-63U10 |
US $3.60 |
||
|
49148+A
|
49148+A
49148-63U10 Pin-Camring, Power Steering Pump9206--01 ~ ; VH41DE |
49148-63U10 |
US $3.60 |
||
|
49149
|
49149
49149-63U00 Bolt-Bracket, Power Steering Pump9206--01 ~ ; VH41DE |
49149-63U00 |
US $3.60 |
||
| replacement | |||||
|
49149
|
49149
49149-63U0A Bolt-Bracket, Power Steering Pump9206--01 ~ ; VH41DE |
49149-63U0A |
US $3.60 |
||
|
49149
|
49149
49164-43P00 Bolt-Power Steering Pump9206--01 ~ ; VH41DE |
49164-43P00 |
US $3.31 |
||
|
49149M
|
49149M
49164-43P00 Bolt-Power Steering Pump9206--01 ~ ; VH41DE |
49164-43P00 |
US $3.31 |
||
|
49149M
|
49149M
49164-43P00 Bolt-Power Steering Pump9206--01 ~ ; VH41DE |
49164-43P00 |
US $3.31 |
||
|
49160M
|
49160M
49165-1P400 Valve Assy-Flow Control9206--01 ~ ; VH41DE |
49165-1P400 |
US $66.82 |
||
|
49160M
|
49160M
49165-63U10 Valve Assy-Flow Control9206--01 ~ ; VH41DE |
49165-63U10 |
US $64.80 |
||
|
49160MA
|
49160MA
49165-63U10 Valve Assy-Flow Control9206--01 ~ ; VH41DE |
49165-63U10 |
US $64.80 |
||
|
49162M
|
49162M
49167-63U00 Spring-Flow Control Valve9206--01 ~ ; VH41DE |
49167-63U00 |
US $6.34 |
||
|
49162M
|
49162M
49167-63U00 Spring-Flow Control Valve9206--01 ~ ; VH41DE |
49167-63U00 |
US $6.34 |
||
|
49162MA
|
49162MA
49167-63U00 Spring-Flow Control Valve9206--01 ~ ; VH41DE |
49167-63U00 |
US $6.34 |
||
|
49170M
|
49170M
49161-16Y00 ｺﾈｸﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ9206--01 ~ ; VH41DE |
49161-16Y00 |
US $130.03 |
||
|
49171M
|
49171M
49171-60U00 Bolt-Connector9206--01 ~ ; VH41DE |
49171-60U00 |
US $5.90 |
||
|
49171M
|
49171M
49171-43P01 Connector-Outlet9206--01 ~ ; VH41DE |
49171-43P01 |
US $6.34 |
||
|
49171MA
|
49171MA
49171-43P01 Connector-Outlet9206--01 ~ ; VH41DE |
49171-43P01 |
US $6.34 |
||
|
49587
|
49587
49172-1P100 Joint-Outlet, Power Steering Pump9206--01 ~ 9503--01; VH41DE |
49172-1P100 |
US $66.38 |
||
|
49587
|
49587
49172-1P101 Joint-Outlet, Power Steering Pump9503--01 ~ ; VH41DE |
49172-1P101 |
US $66.38 |
||
|
49587
|
49587
49172-11Y01 ｼﾞﾖｲﾝﾄ,ｱｳﾄﾚﾂﾄ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ9206--01 ~ ; VH41DE |
49172-11Y01 |
US $86.11 |
||
|
49587+A
|
49587+A
49172-11Y01 ｼﾞﾖｲﾝﾄ,ｱｳﾄﾚﾂﾄ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ9206--01 ~ ; VH41DE |
49172-11Y01 |
US $86.11 |
||
|
