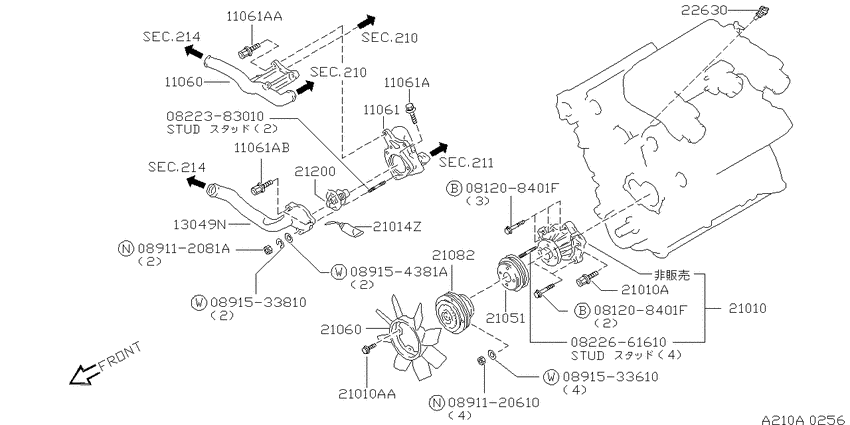

Water pump, cooling fan & thermostat (1992-06-01 ~ ; VG30DE) Diagram Nissan LEOPARD
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- VG30DE
- transmission
- AT
- grade
- TYPE/F
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208401F
|
081208401F
08120-8401F Bolt-hexagon |
08120-8401F |
US $0.63 |
||
|
081208401F
|
081208401F
08120-8401F Bolt-hexagon |
08120-8401F |
US $0.63 |
||
|
0822383010
|
0822383010
08223-83010
STUD
|
08223-83010 |
— | ||
|
0822661610
|
0822661610
08226-61610 STUD |
08226-61610 |
US $0.54 |
||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
0891533810
|
0891533810
08915-33810
WASHER-FINAL DRIVE
|
08915-33810 |
— | ||
| replacement | |||||
|
0891533810
|
0891533810
089153381A Washer |
089153381A |
from US $0.67 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.59 |
||
|
11060
|
11060
11060-16V00 Outlet-Water9206--01 ~ ; VG30DE |
11060-16V00 |
US $101.23 |
||
|
11061
|
11061
11061-F6500
Housing-Thermostat
9206--01 ~ ; VG30DE |
11061-F6500 |
— | ||
|
11061
|
11061
01121-01841 BOLT9206--01 ~ ; VG30DE |
01121-01841 |
US $2.45 |
||
|
11061
|
11061
16163-F6510 Bolt9206--01 ~ ; VG30DE |
16163-F6510 |
US $3.46 |
||
|
11061
|
11061
16163-F6510 Bolt9206--01 ~ ; VG30DE |
16163-F6510 |
US $3.46 |
||
|
11061A
|
11061A
01121-01841 BOLT9206--01 ~ ; VG30DE |
01121-01841 |
US $2.45 |
||
|
11061A
|
11061A
16163-F6510 Bolt9206--01 ~ ; VG30DE |
16163-F6510 |
US $3.46 |
||
|
11061A
|
11061A
16163-F6510 Bolt9206--01 ~ ; VG30DE |
16163-F6510 |
US $3.46 |
||
|
11061AA
|
11061AA
16163-F6510 Bolt9206--01 ~ ; VG30DE |
16163-F6510 |
US $3.46 |
||
|
11061AB
|
11061AB
16163-F6510 Bolt9206--01 ~ ; VG30DE |
16163-F6510 |
US $3.46 |
||
|
13049N
|
13049N
13049-16V00 Inlet-Water9206--01 ~ ; VG30DE |
13049-16V00 |
US $57.02 |
||
|
210
|
Water pump, cooling fan & thermostat
210
|
||||
|
210
|
Water pump, cooling fan & thermostat
210
|
||||
|
21010
|
21010
21010-0P526 Pump Assy-Water9206--01 ~ 9409--01; VG30DE; [B106] |
21010-0P526 |
US $252.99 |
||
| replacement | |||||
|
21010
|
21010
B10100P529
Pump Assy, Water
9206--01 ~ 9409--01; VG30DE; [B106] |
B10100P529 |
— | ||
|
21010
|
21010
21010-0P527 Pump Assy-Water9409--01 ~ ; VG30DE; [B106] |
21010-0P527 |
US $262.08 |
||
|
21010
|
21010
21012-V5011 Bolt9206--01 ~ ; VG30DE |
21012-V5011 |
from US $6.34 |
||
|
21010
|
21010
01121-04811 BOLT9206--01 ~ ; VG30DE |
01121-04811 |
US $3.06 |
||
|
21010A
|
21010A
21012-V5011 Bolt9206--01 ~ ; VG30DE |
21012-V5011 |
from US $6.34 |
||
|
21010A
|
21010A
01121-04811 BOLT9206--01 ~ ; VG30DE |
01121-04811 |
US $3.06 |
||
|
21010AA
|
21010AA
01121-04811 BOLT9206--01 ~ ; VG30DE |
01121-04811 |
US $3.06 |
||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid9206--01 ~ ; VG30DE; [K504] |
KP510-00150 |
US $29.51 |
||
|
21051
|
21051
21051-0P500 Pulley-Fan & Water Pump9206--01 ~ ; VG30DE |
21051-0P500 |
US $108.43 |
||
|
21060
|
21060
210600P500 Fan-Cooling9206--01 ~ ; VG30DE |
210600P500 |
US $112.61 |
||
|
21082
|
21082
21082-0P502 Coupling Assy-Fan9206--01 ~ ; VG30DE; [B106] |
21082-0P502 |
US $702.34 |
||
|
211
|
Water hose & piping
211
|
||||
|
21200
|
21200
21200-42L05
Thermostat Assy
9206--01 ~ ; VG30DE; 76.5C |
21200-42L05 |
— | ||
| replacements | |||||
|
21200
|
21200
21200-42L0A Thermostat9206--01 ~ ; VG30DE; 76.5C |
21200-42L0A |
US $33.28 |
||
|
21200
|
21200
21200-42L0B THERMOSTAT9206--01 ~ ; VG30DE; 76.5C |
21200-42L0B |
US $40.85 |
||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
22630
|
22630
22630-01P01 Sensor-Water Temperature9206--01 ~ ; VG30DE |
22630-01P01 |
US $297.43 |
||
