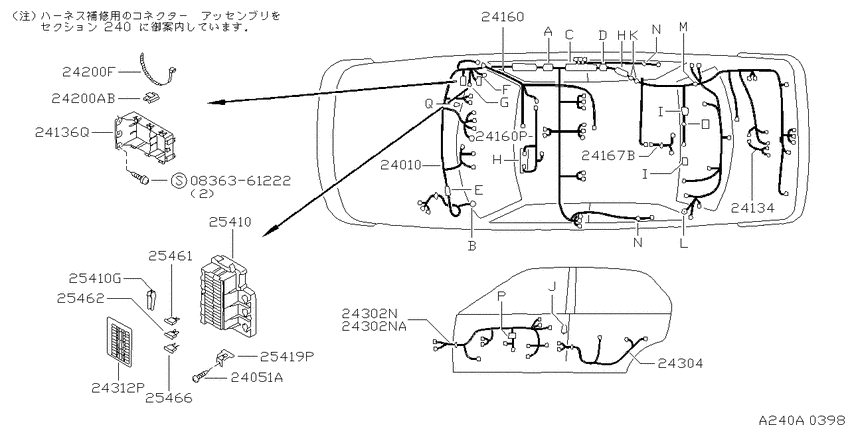

Wiring (1988-10-01 ~ 1991-08-01; ボディ; S) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361222
|
0836361222
08363-61222
SCREW
|
08363-61222 |
— | ||
| replacement | |||||
|
0836361222
|
0836361222
08360-61222
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61222 |
— | ||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
24010
|
24010
24010-88E00 HARNESS ASSY-MAIN8810--01 ~ 8908--01; S |
24010-88E00 |
US $3,108 |
||
|
24010
|
24010
24010-88E05 HARNESS ASSY-MAIN8810--01 ~ 8908--01; *S; ﾀｲﾌﾟ2 ﾖｳ |
24010-88E05 |
US $3,108 |
||
|
24010
|
24010
24010-88E10 HARNESS ASSY-MAIN8908--01 ~ 9108--01; S |
24010-88E10 |
US $3,108 |
||
|
24010
|
24010
24010-88E15 HARNESS ASSY-MAIN8908--01 ~ 9108--01; *S; SE |
24010-88E15 |
US $3,108 |
||
|
24051A
|
24051A
01461-00061 SCREW8810--01 ~ 9108--01; S |
01461-00061 |
US $2.21 |
||
|
24134
|
24134
24134-86E00 HARNESS-TRUNK ROOM SUB8908--01 ~ 9108--01; *S; ﾀｲﾌﾟSE2 ｴｱｽﾎﾟｲﾗ- ｼﾖｳ |
24134-86E00 |
US $31.97 |
||
|
24136Q
|
24136Q
24346-85E00 BRACKET ASSY-CONNECTOR8810--01 ~ 9108--01; S |
24346-85E00 |
US $9.50 |
||
|
24160
|
24160
24160-87E00 HARNESS ASSY-ROOM LAMP8810--01 ~ 9108--01; S |
24160-87E00 |
US $134.35 |
||
|
24160
|
24160
24160-87E05 HARNESS ASSY-ROOM LAMP8810--01 ~ 9108--01; *S; ｻﾝﾙ-ﾌ ｼﾖｳ |
24160-87E05 |
US $134.35 |
||
|
24160
|
24160
24065-03E60 HARNESS-SUNROOF8810--01 ~ 9108--01; *S; ｻﾝﾙ-ﾌ ｼﾖｳ |
24065-03E60 |
US $73.73 |
||
|
24160P
|
24160P
24065-03E60 HARNESS-SUNROOF8810--01 ~ 9108--01; *S; ｻﾝﾙ-ﾌ ｼﾖｳ |
24065-03E60 |
US $73.73 |
||
|
24167B
|
24167B
24167-85E00 HARNESS-SUB8810--01 ~ 9108--01; S; ｱﾝﾁｽｷﾂﾄﾞ ｻﾌﾞﾊ-ﾈｽ |
24167-85E00 |
US $53.28 |
||
|
24200AB
|
24200AB
24220-51E02 CLIP-WIRING HARNESS8810--01 ~ 9108--01; S |
24220-51E02 |
US $0.86 |
||
|
24200F
|
24200F
01552-00411
CLAMP-HOSE
8810--01 ~ 9108--01; S |
01552-00411 |
— | ||
| replacement | |||||
|
24200F
|
24200F
2421610Y80 Clamp8810--01 ~ 9108--01; S |
2421610Y80 |
from US $4.42 |
||
|
24302N
|
24302N
24124-88E00 HARNESS ASSY-DOOR,FRONT8810--01 ~ 9108--01; S |
24124-88E00 |
US $213.12 |
||
|
24302N
|
24302N
24124-88E05 HARNESS ASSY-DOOR,FRONT8810--01 ~ 9108--01; *S; BOSEｽﾋﾟ-ｶ- ﾖｳ |
24124-88E05 |
US $213.12 |
||
|
24302N
|
24302N
24125-88E00 HARNESS ASSY-DOOR,FRONT8810--01 ~ 9108--01; S |
24125-88E00 |
US $213.12 |
||
|
24302N
|
24302N
24125-88E05 HARNESS ASSY-DOOR,FRONT8810--01 ~ 9108--01; *S; BOSEｽﾋﾟ-ｶ- ﾖｳ |
24125-88E05 |
US $213.12 |
||
|
24302NA
|
24302NA
24125-88E00 HARNESS ASSY-DOOR,FRONT8810--01 ~ 9108--01; S |
24125-88E00 |
US $213.12 |
||
|
24302NA
|
24302NA
24125-88E05 HARNESS ASSY-DOOR,FRONT8810--01 ~ 9108--01; *S; BOSEｽﾋﾟ-ｶ- ﾖｳ |
24125-88E05 |
US $213.12 |
||
|
24304
|
24304
24126-85E00 HARNESS ASSY-DOOR,REAR8810--01 ~ 9108--01; S |
24126-85E00 |
US $133.49 |
||
|
24312P
|
24312P
24313-88E00 LABEL-FUSE BLOCK8810--01 ~ 8908--01; S |
24313-88E00 |
US $4.46 |
||
|
24312P
|
24312P
24313-88E05 LABEL-FUSE BLOCK8908--01 ~ 9108--01; S |
24313-88E05 |
US $4.46 |
||
|
25410
|
25410
24311-89900 Block Assy-Fuse8810--01 ~ 9108--01; S |
24311-89900 |
US $67.78 |
||
|
25410
|
25410
24321-C9900 Puller-Fuse8810--01 ~ 9108--01; S |
24321-C9900 |
US $4.18 |
||
|
25410
|
25410
24321-V0300 Block Assy-Fuse8810--01 ~ 9108--01; S |
24321-V0300 |
US $0.86 |
||
|
25410G
|
25410G
24321-C9900 Puller-Fuse8810--01 ~ 9108--01; S |
24321-C9900 |
US $4.18 |
||
|
25419P
|
25419P
24317-85E01 BRACKET-FUSE BLOCK8810--01 ~ 9108--01; S |
24317-85E01 |
US $19.01 |
||
|
25461
|
25461
0894121000 FUSE-10A8810--01 ~ 9108--01; S |
0894121000 |
US $0.59 |
||
|
25462
|
25462
0894122000 FUSE-20A8810--01 ~ 9108--01; S |
0894122000 |
from US $0.59 |
||
|
25466
|
25466
0894121500 FUSE-15A8810--01 ~ 9108--01; S |
0894121500 |
from US $0.59 |
||
