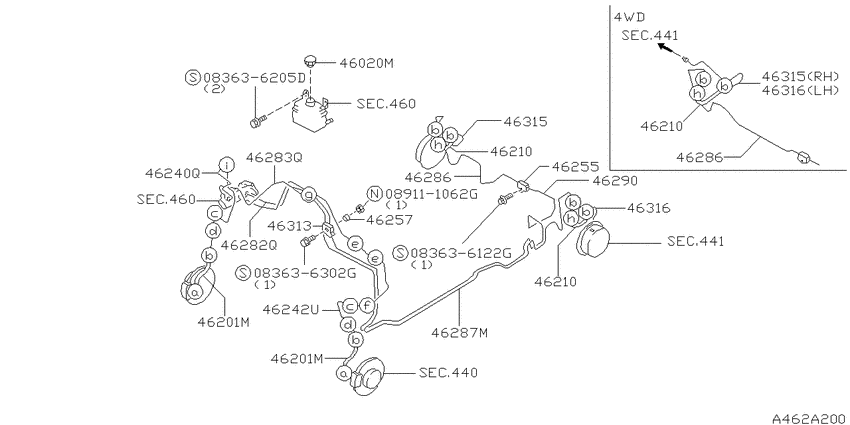

Brake piping & control (1990-09-01 ~ 1995-08-01; $パイピング(アンチ スキッド 無し); S.CA20S) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 1988 - 1995
- Sales region
- Japan
- Engine
- CA20S
- drive
- 4WD
- transmission
- F5
- grade
- J
- body
- S
- capacity
- 7P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636205D
|
083636205D
08363-6205D
SCREWMACHINE
|
08363-6205D |
— | ||
|
083636302G
|
083636302G
08363-6302G ｽｸﾘﾕ-,ﾏｼﾝ |
08363-6302G |
US $2.36 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
440
|
Front brake
440
|
||||
|
440
|
Front brake
440
|
||||
|
440
|
Front brake
440
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
46020M
|
46020M
46020-W1610 Cap Assy-Oil Reservoir Tank8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46020-W1610 |
US $14.69 |
||
|
46201M
|
46201M
4621030R00 Hose Assy-Brake, Front8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
4621030R00 |
US $42.19 |
||
|
46201M
|
46201M
46210-30R10 Hose Assy-Brake, Front8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-30R10 |
from US $42.19 |
||
|
46201M
|
46201M
4621030R00 Hose Assy-Brake, Front8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
4621030R00 |
US $42.19 |
||
|
46201M
|
46201M
46210-30R10 Hose Assy-Brake, Front8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-30R10 |
from US $42.19 |
||
|
46210
|
46210
46210-40R00 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-40R00 |
US $20.88 |
||
|
46210
|
46210
46210-40R10 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-40R10 |
US $20.88 |
||
|
46210
|
46210
46210-42R00 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R00 |
US $20.88 |
||
|
46210
|
46210
46210-42R10 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R10 |
US $20.88 |
||
|
46210
|
46210
46210-42R01 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R01 |
US $20.88 |
||
|
46210
|
46210
46210-42R11 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R11 |
US $20.88 |
||
|
46210
|
46210
46210-40R00 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-40R00 |
US $20.88 |
||
|
46210
|
46210
46210-40R10 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-40R10 |
US $20.88 |
||
|
46210
|
46210
46210-42R00 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R00 |
US $20.88 |
||
|
46210
|
46210
46210-42R10 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R10 |
US $20.88 |
||
|
46210
|
46210
46210-42R01 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R01 |
US $20.88 |
||
|
46210
|
46210
46210-42R11 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R11 |
US $20.88 |
||
|
46210
|
46210
46210-40R00 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-40R00 |
US $20.88 |
||
|
46210
|
46210
46210-40R10 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-40R10 |
US $20.88 |
||
|
46210
|
46210
46210-42R00 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R00 |
US $20.88 |
||
|
46210
|
46210
46210-42R10 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R10 |
US $20.88 |
||
|
46210
|
46210
46210-42R01 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R01 |
US $20.88 |
||
|
46210
|
46210
46210-42R11 Hose Assy-Brake, Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｾﾝﾀｸ ｼﾖｳ ﾆﾁﾘﾝ ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46210-42R11 |
US $20.88 |
||
|
46240Q
|
46240Q
46240-35R10 Tube Assy-Brake, M/cylinder To Front Rh8809--01 ~ 9009--01; S |
46240-35R10 |
US $21.89 |
||
|
46242U
|
46242U
46242-35R10 Tube Assy-Brake, M/cylinder To Front Lh8809--01 ~ 9009--01; S |
46242-35R10 |
US $21.89 |
||
|
46255
|
46255
0246364000 CONNECTOR-BRAKE TUBE8809--01 ~ 9009--01; S |
0246364000 |
from US $8.87 |
||
|
46255
|
46255
0246364000 CONNECTOR-BRAKE TUBE8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
0246364000 |
from US $8.87 |
||
|
46257
|
46257
46257-N4200 Spacer-Brake Tube Connector8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46257-N4200 |
US $4.03 |
||
|
46282Q
|
46282Q
46282-35R10 Tube Assy-Brake, Master Cylinder To Rear8809--01 ~ 9009--01; S |
46282-35R10 |
US $19.01 |
||
|
46283Q
|
46283Q
46283-35R10 Tube Assy-Brake, Master Cylinder To Rear8809--01 ~ 9009--01; S |
46283-35R10 |
US $10.80 |
||
|
46286
|
46286
46286-40R00 Tube-Brake Connector To Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46286-40R00 |
US $34.13 |
||
|
46286
|
46286
46286-40R00 Tube-Brake Connector To Rear8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46286-40R00 |
US $34.13 |
||
|
46287M
|
46287M
46287-40R00 Tube Assy-Brake, Rear8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
46287-40R00 |
US $14.26 |
||
|
46290
|
46290
46290-40R00 Tube Assy-Rear Brake, Rh8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P); ﾐｷﾞｶﾞﾜ |
46290-40R00 |
US $14.26 |
||
|
46313
|
46313
4631301E02 CONNECTOR-BRAKE TUBE8809--01 ~ 9009--01; S |
4631301E02 |
US $17.19 |
||
|
46315
|
46315
46315-42R00 Tube Assy-Brake Rear, Rh8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
46315-42R00 |
US $14.26 |
||
|
46315
|
46315
46315-42R10 Tube Assy-Brake Rear, Rh8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46315-42R10 |
US $14.26 |
||
|
46315
|
46315
46315-42R00 Tube Assy-Brake Rear, Rh8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
46315-42R00 |
US $14.26 |
||
|
46315
|
46315
46315-42R10 Tube Assy-Brake Rear, Rh8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46315-42R10 |
US $14.26 |
||
|
46316
|
46316
46316-42R00 Tube Assy-Brake Rear, Lh8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
46316-42R00 |
US $14.26 |
||
|
46316
|
46316
46316-42R10 Tube Assy-Brake Rear, Lh8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46316-42R10 |
US $14.26 |
||
|
46316
|
46316
46316-42R00 Tube Assy-Brake Rear, Lh8809--01 ~ 9009--01; S.(4WD.5P+4WD.6P+4WD.7P) |
46316-42R00 |
US $14.26 |
||
|
46316
|
46316
46316-42R10 Tube Assy-Brake Rear, Lh8809--01 ~ 9009--01; *S.(4WD.5P+4WD.6P+4WD.7P); ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
46316-42R10 |
US $14.26 |
||
