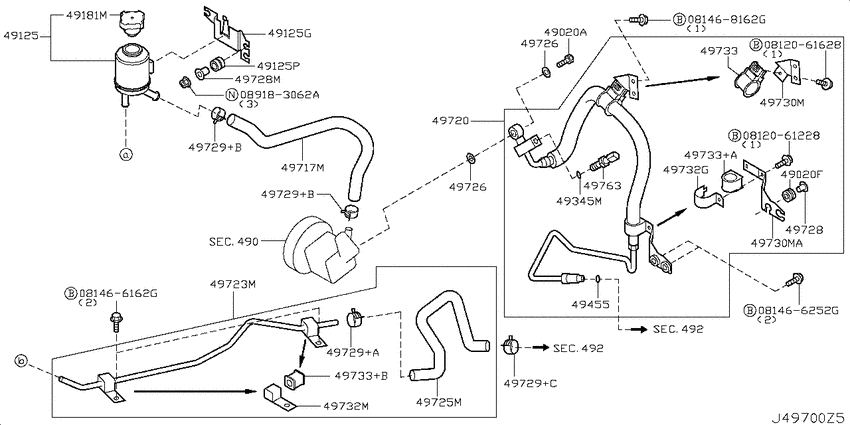

Power steering piping (2003-06-01 ~ ; PART-1; 2WD.QR25DE) Diagram Nissan PRESAGE
- Year
- 2003 - 2004
- Sales region
- Japan
- Engine
- QR25DE
- drive
- 2WD
- transmission
- AT
- grade
- V
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $0.65 |
||
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081468162G
|
081468162G
081468162G Bolt-hexagon |
081468162G |
US $0.85 |
||
|
089183062A
|
089183062A
089183062A NUTFLANGEHEX |
089183062A |
US $1.18 |
||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
49020A
|
49020A
49738-4W000 Bolt0306--01 ~ 0702--01; 2WD.QR25DE |
49738-4W000 |
US $2.45 |
||
|
49020A
|
49020A
497384W00A Bolt0702--01 ~ ; 2WD.QR25DE |
497384W00A |
from US $1.31 |
||
|
49020F
|
49020F
18316S3260 Bush0306--01 ~ ; 2WD.QR25DE |
18316S3260 |
from US $3.42 |
||
|
49020F
|
49020F
46271-66C00 Insulator0306--01 ~ ; 2WD.QR25DE |
46271-66C00 |
US $2.45 |
||
|
49125
|
49125
49180-4M403 Tank Assy-Reservoir0306--01 ~ ; 2WD.QR25DE |
49180-4M403 |
US $168.95 |
||
|
49125
|
49125
491909Y000 Bracket-Reservoir Tank0306--01 ~ ; 2WD.QR25DE |
491909Y000 |
US $16.56 |
||
|
49125
|
49125
49195-6P000 Insulator0306--01 ~ ; 2WD.QR25DE |
49195-6P000 |
US $5.59 |
||
|
49125G
|
49125G
491909Y000 Bracket-Reservoir Tank0306--01 ~ ; 2WD.QR25DE |
491909Y000 |
US $16.56 |
||
|
49125P
|
49125P
49195-6P000 Insulator0306--01 ~ ; 2WD.QR25DE |
49195-6P000 |
US $5.59 |
||
|
49181M
|
49181M
49181AA000 Cap Assy-Reservoir0306--01 ~ ; 2WD.QR25DE |
49181AA000 |
from US $18.99 |
||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
49345M
|
49345M
493456N200 Seal-O Ring0306--01 ~ ; 2WD.QR25DE |
493456N200 |
from US $3.72 |
||
|
49455
|
49455
4974501E00 SEAL-O RING0306--01 ~ ; 2WD.QR25DE |
4974501E00 |
US $2.78 |
||
|
49717M
|
49717M
497179Y600 Hose Assy-Suction, Power Steering0306--01 ~ ; 2WD.QR25DE |
497179Y600 |
US $54.89 |
||
|
49720
|
49720
49720CN000 Hose Assy-Pressure, Power Steering0306--01 ~ ; 2WD.QR25DE |
49720CN000 |
US $329.93 |
||
|
49723M
|
49723M
49721-9Y000 Hose & Tube Assy-Power Steering0306--01 ~ 0702--01; 2WD.QR25DE |
49721-9Y000 |
US $86.40 |
||
|
49723M
|
49723M
497219Y00A Hose & Tube Assy-Power Steering0702--01 ~ ; 2WD.QR25DE |
497219Y00A |
US $72 |
||
|
49723M
|
49723M
49721-CA001 Hose & Tube Assy-Power Steering0306--01 ~ ; 2WD.QR25DE |
49721-CA001 |
US $80.21 |
||
|
49725M
|
49725M
497259Y000 Hose-Return, Power Steering0306--01 ~ ; 2WD.QR25DE |
497259Y000 |
from US $26.36 |
||
|
49725M
|
49725M
49725-CA001 Hose-Return, Power Steering0306--01 ~ ; 2WD.QR25DE |
49725-CA001 |
US $24.34 |
||
|
49725M
|
49725M
49725-CA002 Hose-Return, Power Steering0306--01 ~ ; 2WD.QR25DE |
49725-CA002 |
US $24.34 |
||
|
49726
|
49726
49726Y0100 Washer-Copper0306--01 ~ ; 2WD.QR25DE |
49726Y0100 |
from US $1.74 |
||
|
49726
|
49726
49726Y0100 Washer-Copper0306--01 ~ ; 2WD.QR25DE |
49726Y0100 |
from US $1.74 |
||
|
49728
|
49728
49728-55S00
Collar
0306--01 ~ ; 2WD.QR25DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728
|
49728
49728-55S0A Collar-Insulator0306--01 ~ ; 2WD.QR25DE |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-6P000
Collar-Insulator
0306--01 ~ 0701--01; 2WD.QR25DE |
49728-6P000 |
— | ||
| replacement | |||||
|
49728
|
49728
497286P00A Collar-Insulator0306--01 ~ 0701--01; 2WD.QR25DE |
497286P00A |
US $2.59 |
||
|
49728
|
49728
497286P00A Collar-Insulator0701--01 ~ ; 2WD.QR25DE |
497286P00A |
US $2.59 |
||
|
49728
|
49728
49728-55S00
Collar
0306--01 ~ 0606--01; 2WD.QR25DE +2WD.VQ35DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728
|
49728
49728-55S0A Collar-Insulator0306--01 ~ 0606--01; 2WD.QR25DE +2WD.VQ35DE |
49728-55S0A |
US $2.64 |
||
|
49728M
|
49728M
49728-6P000
Collar-Insulator
0306--01 ~ 0701--01; 2WD.QR25DE |
49728-6P000 |
— | ||
| replacement | |||||
|
49728M
|
49728M
497286P00A Collar-Insulator0306--01 ~ 0701--01; 2WD.QR25DE |
497286P00A |
US $2.59 |
||
|
49728M
|
49728M
497286P00A Collar-Insulator0701--01 ~ ; 2WD.QR25DE |
497286P00A |
US $2.59 |
||
|
49729+A
|
49729+A
49729-2J001 Clamp0306--01 ~ ; 2WD.QR25DE |
49729-2J001 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J015 Clamp0306--01 ~ 0706--01; 2WD.QR25DE |
49729-2J015 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J01A Clamp0706--01 ~ ; 2WD.QR25DE |
49729-2J01A |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J015 Clamp0306--01 ~ 0706--01; 2WD.QR25DE |
49729-2J015 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J01A Clamp0706--01 ~ ; 2WD.QR25DE |
49729-2J01A |
US $2.45 |
||
|
49729+C
|
49729+C
49729-2J000 Clamp0306--01 ~ 0706--01; 2WD.QR25DE |
49729-2J000 |
US $2.45 |
||
|
49729+C
|
49729+C
497292J00B Clamp0706--01 ~ ; 2WD.QR25DE |
497292J00B |
from US $1.94 |
||
|
49730M
|
49730M
49730-9Y600 Bracket-Tube0306--01 ~ ; 2WD.QR25DE |
49730-9Y600 |
US $9.07 |
||
|
49730M
|
49730M
49730-CA100 Bracket-Tube0306--01 ~ ; 2WD.QR25DE |
49730-CA100 |
US $9.07 |
||
|
49730MA
|
49730MA
49730-CA100 Bracket-Tube0306--01 ~ ; 2WD.QR25DE |
49730-CA100 |
US $9.07 |
||
|
49732G
|
49732G
49732-8H305 Clamp0306--01 ~ ; 2WD.QR25DE |
49732-8H305 |
US $10.37 |
||
|
49732M
|
49732M
49732-58J00 Bracket-Power Steering Tube0306--01 ~ ; 2WD.QR25DE |
49732-58J00 |
US $10.51 |
||
|
49732M
|
49732M
49732-58J00 Bracket-Power Steering Tube0306--01 ~ ; 2WD.QR25DE |
49732-58J00 |
US $10.51 |
||
|
49733
|
49733
49733-CA000 Insulator0306--01 ~ ; 2WD.QR25DE |
49733-CA000 |
US $7.20 |
||
|
49733
|
49733
49733-5V000 Insulator0306--01 ~ ; 2WD.QR25DE |
49733-5V000 |
US $7.20 |
||
|
49733
|
49733
49733-55M00 Insulator0306--01 ~ ; 2WD.QR25DE |
49733-55M00 |
US $4.57 |
||
|
49733
|
49733
49733-55M00 Insulator0306--01 ~ ; 2WD.QR25DE |
49733-55M00 |
US $4.57 |
||
|
49733+A
|
49733+A
49733-5V000 Insulator0306--01 ~ ; 2WD.QR25DE |
49733-5V000 |
US $7.20 |
||
|
49733+B
|
49733+B
49733-55M00 Insulator0306--01 ~ ; 2WD.QR25DE |
49733-55M00 |
US $4.57 |
||
|
49763
|
49763
49763-6N200 Sensor Assy-Pressure, Power Steering0306--01 ~ ; 2WD.QR25DE |
49763-6N200 |
US $103.82 |
||
