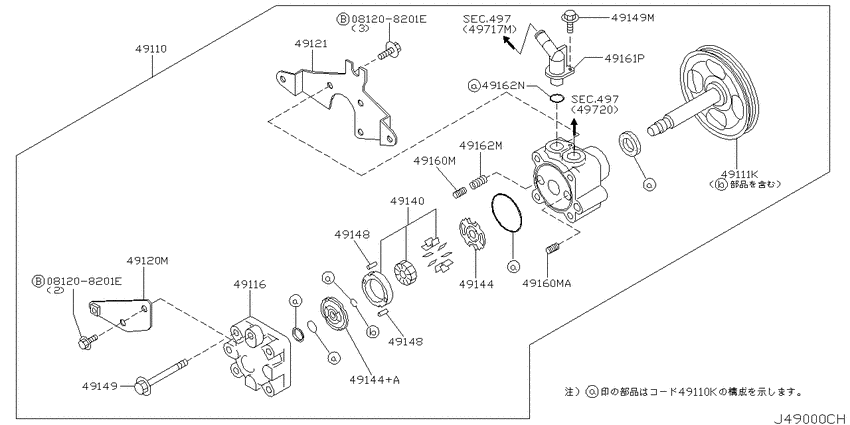

Power steering pump (2003-06-01 ~ ; QR25DE) Diagram Nissan PRESAGE
- Year
- 2003 - 2004
- Sales region
- Japan
- Engine
- QR25DE
- drive
- 2WD
- transmission
- AT
- grade
- V
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
49110
|
49110
49110-CN000 Pump Assy-Power Steering0306--01 ~ 0703--01; QR25DE |
49110-CN000 |
US $1,526 |
||
|
49110
|
49110
49110-CN00B Pump Assy-Power Steering0703--01 ~ 0712--01; QR25DE |
49110-CN00B |
US $1,285.73 |
||
|
49110
|
49110
49110CN00C Pump Assy-Power Steering0712--01 ~ ; QR25DE |
49110CN00C |
from US $739.13 |
||
|
49110
|
49110
49591-6C925 Seal Kit-Power Steering Pump0306--01 ~ ; QR25DE |
49591-6C925 |
from US $15.25 |
||
|
49110K
|
49110K
49591-6C925 Seal Kit-Power Steering Pump0306--01 ~ ; QR25DE |
49591-6C925 |
from US $15.25 |
||
|
49111K
|
49111K
49132-6N225 Pulley Kit-Power Steering Pump0306--01 ~ 0706--01; QR25DE |
49132-6N225 |
US $97.78 |
||
|
49111K
|
49111K
49132-EG025 Pulley Kit-Power Steering Pump0706--01 ~ ; QR25DE |
49132-EG025 |
US $97.78 |
||
|
49116
|
49116
49116-6M000 Cover-Rear, Power Steering Pump0306--01 ~ ; QR25DE |
49116-6M000 |
US $34.70 |
||
|
49120M
|
49120M
49122-6N200 Bracket Assy-Power Steering Pump0306--01 ~ 0712--01; QR25DE |
49122-6N200 |
US $47.38 |
||
|
49120M
|
49120M
49122-6N20A Bracket Assy-Power Steering Pump0712--01 ~ ; QR25DE |
49122-6N20A |
US $43.06 |
||
|
49121
|
49121
49121-6N200 Bracket Assy-Power Steering Pump0306--01 ~ 0706--01; QR25DE |
49121-6N200 |
US $87.98 |
||
|
49121
|
49121
49121-6N20A Bracket Assy-Power Steering Pump0706--01 ~ ; QR25DE |
49121-6N20A |
US $79.92 |
||
|
49140
|
49140
49140WF905 Rotor & Camring Set-Power Steering Pump0306--01 ~ ; QR25DE |
49140WF905 |
US $119.66 |
||
|
49144
|
49144
49144-WL000 Plate-Side, Power Steering Pump0306--01 ~ ; QR25DE |
49144-WL000 |
US $34.70 |
||
|
49144
|
49144
49144-WL001 Plate-Side, Power Steering Pump0706--01 ~ ; QR25DE |
49144-WL001 |
US $34.70 |
||
|
49144
|
49144
49144-WL100 Plate-Side, Power Steering Pump0306--01 ~ 0706--01; QR25DE |
49144-WL100 |
US $34.70 |
||
|
49144+A
|
49144+A
49144-WL001 Plate-Side, Power Steering Pump0706--01 ~ ; QR25DE |
49144-WL001 |
US $34.70 |
||
|
49144+A
|
49144+A
49144-WL100 Plate-Side, Power Steering Pump0306--01 ~ 0706--01; QR25DE |
49144-WL100 |
US $34.70 |
||
|
49148
|
49148
49148-6C900 Pin-Camring, Power Steering Pump0306--01 ~ ; QR25DE |
49148-6C900 |
US $2.74 |
||
|
49148
|
49148
49148-6C900 Pin-Camring, Power Steering Pump0306--01 ~ ; QR25DE |
49148-6C900 |
US $2.74 |
||
|
49149
|
49149
49149-1AA0A Bolt-Bracket, Power Steering Pump0703--01 ~ ; QR25DE |
49149-1AA0A |
US $3.60 |
||
|
49149
|
49149
49149-4M409 Bolt-Bracket, Power Steering Pump0306--01 ~ 0703--01; QR25DE |
49149-4M409 |
US $3.60 |
||
|
49149
|
49149
491641AA0A Bolt-Power Steering Pump0703--01 ~ ; QR25DE |
491641AA0A |
US $2.45 |
||
|
49149
|
49149
49164-6C900 Bolt-Power Steering Pump0306--01 ~ 0703--01; QR25DE |
49164-6C900 |
US $2.45 |
||
|
49149M
|
49149M
491641AA0A Bolt-Power Steering Pump0703--01 ~ ; QR25DE |
491641AA0A |
US $2.45 |
||
|
49149M
|
49149M
49164-6C900 Bolt-Power Steering Pump0306--01 ~ 0703--01; QR25DE |
49164-6C900 |
US $2.45 |
||
|
49160M
|
49160M
49165-6C900 Valve Assy-Flow Control0306--01 ~ ; QR25DE |
49165-6C900 |
US $57.60 |
||
|
49160M
|
49160M
49168-CN000 Valve Assy-Flow Control0306--01 ~ ; QR25DE |
49168-CN000 |
US $57.60 |
||
|
49160MA
|
49160MA
49168-CN000 Valve Assy-Flow Control0306--01 ~ ; QR25DE |
49168-CN000 |
US $57.60 |
||
|
49161P
|
49161P
491616N200 Connector Assy-Power Steering Pump0306--01 ~ ; QR25DE |
491616N200 |
US $26.93 |
||
|
49162M
|
49162M
49167-6C900 Spring-Flow Control Valve0306--01 ~ ; QR25DE |
49167-6C900 |
US $10.22 |
||
|
49162N
|
49162N
49162-6C900 Seal-Inlet Connector0306--01 ~ ; QR25DE |
49162-6C900 |
US $4.99 |
||
|
