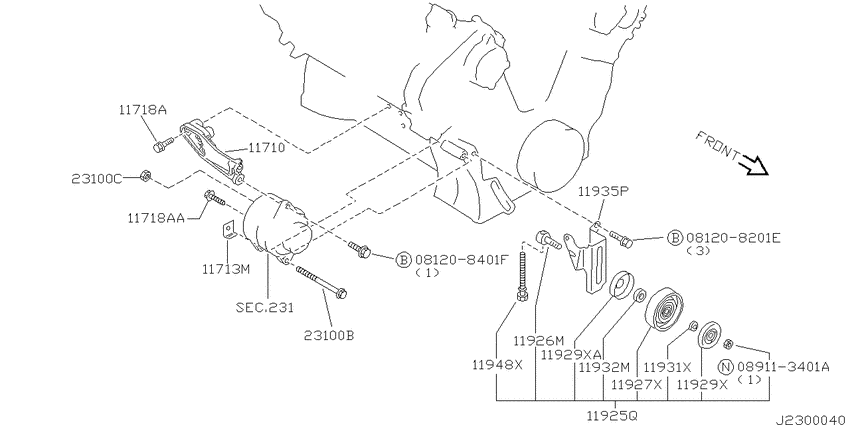

Alternator fitting (1999-09-01 ~ ; VH45D) Diagram Nissan PRESIDENT
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- TP/L
- body
- S
- Suspension
- IRS
- wheelbase
- SHORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208401F
|
081208401F
08120-8401F Bolt-hexagon |
08120-8401F |
US $0.63 |
||
|
089113401A
|
089113401A
089113401A NUTHEX |
089113401A |
US $0.63 |
||
|
11710
|
11710
11710-60U00 Bracket-Alternator9812--01 ~ ; VH45D |
11710-60U00 |
US $81.36 |
||
|
11713M
|
11713M
23188-16V00 Nut-Stopper, Alternator9812--01 ~ ; VH45D |
23188-16V00 |
US $5.18 |
||
|
11718A
|
11718A
01121-04651 BOLT9812--01 ~ ; VH45D |
01121-04651 |
US $3.46 |
||
|
11718A
|
11718A
01121-05851 BOLT9812--01 ~ ; VH45D |
01121-05851 |
US $3.75 |
||
|
11718AA
|
11718AA
01121-05851 BOLT9812--01 ~ ; VH45D |
01121-05851 |
US $3.75 |
||
|
11925Q
|
11925Q
11925-60U01 Pulley Assy-Idler9812--01 ~ 9909--01; VH45D |
11925-60U01 |
US $132.34 |
||
|
11925Q
|
11925Q
11925-60U02 Pulley Assy-Idler9909--01 ~ ; VH45D |
11925-60U02 |
US $172.80 |
||
|
11926M
|
11926M
11928-60U01 Shaft-Idler Pulley9812--01 ~ ; VH45D |
11928-60U01 |
US $18.72 |
||
|
11927X
|
11927X
11947-0W000 Pulley Assy9812--01 ~ ; VH45D |
11947-0W000 |
US $60.05 |
||
|
11929X
|
11929X
1192942L00 Cover-Idler Pulley9812--01 ~ ; VH45D |
1192942L00 |
US $9.22 |
||
|
11929X
|
11929X
11930-30R00 Cover-Idler Pulley9909--01 ~ ; VH45D |
11930-30R00 |
US $11.09 |
||
|
11929XA
|
11929XA
11930-30R00 Cover-Idler Pulley9909--01 ~ ; VH45D |
11930-30R00 |
US $11.09 |
||
|
11931X
|
11931X
1193142L00 Spacer-Idler Pulley9812--01 ~ ; VH45D |
1193142L00 |
US $5.04 |
||
|
11932M
|
11932M
11932-60U01 Collar-Idler Pulley9812--01 ~ 9909--01; VH45D |
11932-60U01 |
US $7.63 |
||
|
11932M
|
11932M
11932-60U03 Collar-Idler Pulley9909--01 ~ ; VH45D |
11932-60U03 |
US $9.65 |
||
|
11935P
|
11935P
11926-60U00 Bracket-Idler Pulley9812--01 ~ ; VH45D |
11926-60U00 |
US $30.24 |
||
|
11948X
|
11948X
11948-60U01 Bolt-Adjust, Idler Pulley9812--01 ~ ; VH45D |
11948-60U01 |
US $11.66 |
||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
23100B
|
23100B
11916-81U00 Bolt9812--01 ~ ; VH45D |
11916-81U00 |
US $6.19 |
||
|
23100C
|
23100C
0122100381 NUT9812--01 ~ ; VH45D |
0122100381 |
from US $5.85 |
||
