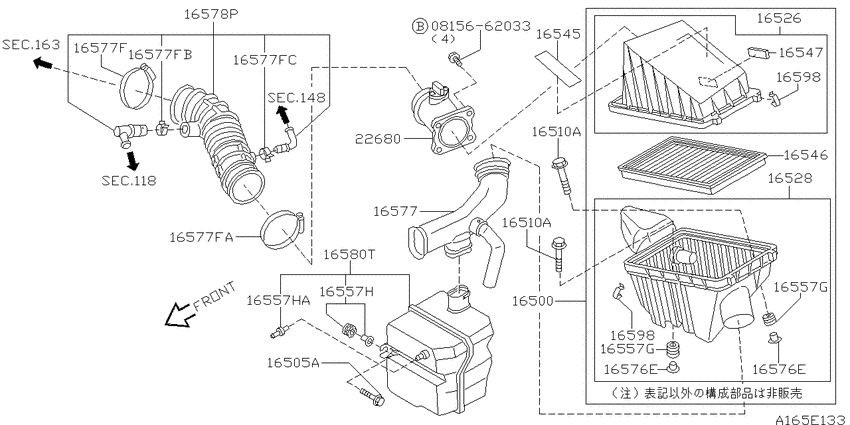

Air cleaner (1999-07-01 ~ 2001-02-01; エアクリーナー; QG18DE) Diagram Nissan PRIMERA
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- CI
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0815662033
|
0815662033
08156-62033 Bolt-hexagon |
08156-62033 |
from US $0.85 |
||
|
118
|
Crankcase ventilation
118
|
||||
|
148
|
Secondary air system
148
|
||||
|
163
|
Throttle chamber
163
|
||||
|
163
|
Throttle chamber
163
|
||||
|
16500
|
16500
16500-6J010 Air Cleaner9809--01 ~ ; QG18DE |
16500-6J010 |
US $349.75 |
||
|
16505A
|
16505A
01436-01681 BOLT9809--01 ~ ; QG18DE |
01436-01681 |
US $1.73 |
||
|
16510A
|
16510A
01436-01681 BOLT9809--01 ~ ; QG18DE |
01436-01681 |
US $1.73 |
||
|
16510A
|
16510A
01436-01681 BOLT9809--01 ~ ; QG18DE |
01436-01681 |
US $1.73 |
||
|
16526
|
16526
16526-6J010 Air Cleaner Cover9809--01 ~ ; QG18DE |
16526-6J010 |
US $155.52 |
||
|
16528
|
16528
16528-6J010 Body Assy-Air Cleaner9809--01 ~ ; QG18DE |
16528-6J010 |
US $210.24 |
||
|
16545
|
16545
16544-31U00 Air Cleaner Caution Label9809--01 ~ ; QG18DE |
16544-31U00 |
US $5.42 |
||
|
16546
|
16546
AY120NS001
Element Assy-Air
9809--01 ~ ; QG18DE |
AY120NS001 |
— | ||
| replacements | |||||
|
16546
|
16546
AY120NS00101 Element Assy-Air9809--01 ~ ; QG18DE |
AY120NS00101 |
US $29.76 |
||
|
16546
|
16546
AY120-NS063 Element Assy-Air9809--01 ~ ; QG18DE |
AY120-NS063 |
US $24.74 |
||
|
16547
|
16547
16547-7J400 Packing0102--01 ~ ; QG18DE |
16547-7J400 |
US $8.78 |
||
|
16557G
|
16557G
16559-31U00 Mounting-Rubber9809--01 ~ ; QG18DE |
16559-31U00 |
from US $4.42 |
||
|
16557G
|
16557G
16559-31U00 Mounting-Rubber9809--01 ~ ; QG18DE |
16559-31U00 |
from US $4.42 |
||
|
16557H
|
16557H
16557-77A10 Mounting Rubber9809--01 ~ ; QG18DE |
16557-77A10 |
US $4.18 |
||
|
16557H
|
16557H
16559-2J200 Mounting-Rubber9809--01 ~ ; QG18DE |
16559-2J200 |
US $6.91 |
||
|
16557HA
|
16557HA
16559-2J200 Mounting-Rubber9809--01 ~ ; QG18DE |
16559-2J200 |
US $6.91 |
||
|
16576E
|
16576E
16566-5L300 Retainer0102--01 ~ ; QG18DE |
16566-5L300 |
US $5.18 |
||
|
16576E
|
16576E
16566-60U00
Retainer
9809--01 ~ 0102--01; QG18DE |
16566-60U00 |
— | ||
| replacement | |||||
|
16576E
|
16576E
1656660U0A Retainer9809--01 ~ 0102--01; QG18DE |
1656660U0A |
US $7.03 |
||
|
16576E
|
16576E
16566-5L300 Retainer0102--01 ~ ; QG18DE |
16566-5L300 |
US $5.18 |
||
|
16576E
|
16576E
16566-60U00
Retainer
9809--01 ~ 0102--01; QG18DE |
16566-60U00 |
— | ||
| replacement | |||||
|
16576E
|
16576E
1656660U0A Retainer9809--01 ~ 0102--01; QG18DE |
1656660U0A |
US $7.03 |
||
|
16577
|
16577
16554-6J000 Duct Assy-Air9809--01 ~ ; QG18DE |
16554-6J000 |
US $82.66 |
||
|
16577
|
16577
14464-45V15
Clamp-Hose
9809--01 ~ ; QG18DE |
14464-45V15 |
— | ||
| replacement | |||||
|
16577
|
16577
14464-45V1B Clamp-Hose9809--01 ~ ; QG18DE |
14464-45V1B |
US $11.79 |
||
|
16577
|
16577
01555-00561 CLAMP-HOSE9809--01 ~ ; QG18DE |
01555-00561 |
US $7.34 |
||
| replacement | |||||
|
16577
|
16577
0155501011 CLAMP-HOSE9809--01 ~ ; QG18DE |
0155501011 |
US $4.18 |
||
|
16577
|
16577
16439-V5001
Clamp-Hose, A
9809--01 ~ ; QG18DE |
16439-V5001 |
— | ||
| replacement | |||||
|
16577
|
16577
16439V500C Clamp-Hose9809--01 ~ ; QG18DE |
16439V500C |
from US $2.76 |
||
|
16577
|
16577
16439-N2100
Clamp-Hose
9809--01 ~ ; QG18DE |
16439-N2100 |
— | ||
| replacement | |||||
|
16577
|
16577
16439N210A Clamp-Hose9809--01 ~ ; QG18DE |
16439N210A |
from US $1.33 |
||
|
16577F
|
16577F
14464-45V15
Clamp-Hose
9809--01 ~ ; QG18DE |
14464-45V15 |
— | ||
| replacement | |||||
|
16577F
|
16577F
14464-45V1B Clamp-Hose9809--01 ~ ; QG18DE |
14464-45V1B |
US $11.79 |
||
|
16577F
|
16577F
01555-00561 CLAMP-HOSE9809--01 ~ ; QG18DE |
01555-00561 |
US $7.34 |
||
| replacement | |||||
|
16577F
|
16577F
0155501011 CLAMP-HOSE9809--01 ~ ; QG18DE |
0155501011 |
US $4.18 |
||
|
16577F
|
16577F
16439-V5001
Clamp-Hose, A
9809--01 ~ ; QG18DE |
16439-V5001 |
— | ||
| replacement | |||||
|
16577F
|
16577F
16439V500C Clamp-Hose9809--01 ~ ; QG18DE |
16439V500C |
from US $2.76 |
||
|
16577F
|
16577F
16439-N2100
Clamp-Hose
9809--01 ~ ; QG18DE |
16439-N2100 |
— | ||
| replacement | |||||
|
16577F
|
16577F
16439N210A Clamp-Hose9809--01 ~ ; QG18DE |
16439N210A |
from US $1.33 |
||
|
16577FA
|
16577FA
01555-00561 CLAMP-HOSE9809--01 ~ ; QG18DE |
01555-00561 |
US $7.34 |
||
| replacement | |||||
|
16577FA
|
16577FA
0155501011 CLAMP-HOSE9809--01 ~ ; QG18DE |
0155501011 |
US $4.18 |
||
|
16577FB
|
16577FB
16439-V5001
Clamp-Hose, A
9809--01 ~ ; QG18DE |
16439-V5001 |
— | ||
| replacement | |||||
|
16577FB
|
16577FB
16439V500C Clamp-Hose9809--01 ~ ; QG18DE |
16439V500C |
from US $2.76 |
||
|
16577FC
|
16577FC
16439-N2100
Clamp-Hose
9809--01 ~ ; QG18DE |
16439-N2100 |
— | ||
| replacement | |||||
|
16577FC
|
16577FC
16439N210A Clamp-Hose9809--01 ~ ; QG18DE |
16439N210A |
from US $1.33 |
||
|
16578P
|
16578P
165786J000 Hose-Air9809--01 ~ ; QG18DE |
165786J000 |
US $109.87 |
||
|
16580T
|
16580T
16585-2J200 Resonator Assy9809--01 ~ ; QG18DE |
16585-2J200 |
US $91.01 |
||
|
16598
|
16598
16598-53J01 Clip9809--01 ~ 0102--01; QG18DE |
16598-53J01 |
US $4.32 |
||
| replacement | |||||
|
16598
|
16598
1659853J0A Clip9809--01 ~ 0102--01; QG18DE |
1659853J0A |
from US $3.05 |
||
|
16598
|
16598
16598-AD100 Clip0102--01 ~ ; QG18DE |
16598-AD100 |
US $4.32 |
||
| replacement | |||||
|
16598
|
16598
16598-AD10A Clip0102--01 ~ ; QG18DE |
16598-AD10A |
US $4.32 |
||
|
16598
|
16598
16598-53J01 Clip9809--01 ~ 0102--01; QG18DE |
16598-53J01 |
US $4.32 |
||
| replacement | |||||
|
16598
|
16598
1659853J0A Clip9809--01 ~ 0102--01; QG18DE |
1659853J0A |
from US $3.05 |
||
|
16598
|
16598
16598-AD100 Clip0102--01 ~ ; QG18DE |
16598-AD100 |
US $4.32 |
||
| replacement | |||||
|
16598
|
16598
16598-AD10A Clip0102--01 ~ ; QG18DE |
16598-AD10A |
US $4.32 |
||
|
22680
|
22680
22680-4M500 Mass Air Flow9809--01 ~ ; QG18DE |
22680-4M500 |
US $556.49 |
||
