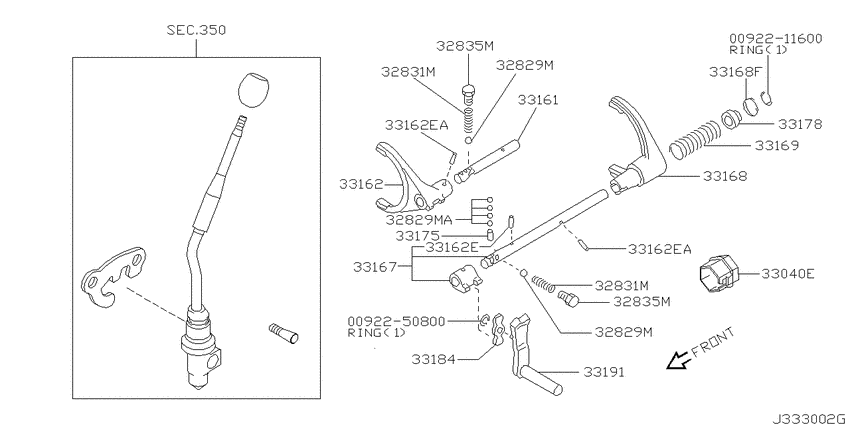

Transfer shift lever,fork & control (2002-11-01 ~ ; TB48DE) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092211600
|
0092211600
00922-11600
RINGSNAP
|
00922-11600 |
— | ||
|
0092250800
|
0092250800
00922-50800
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50800 |
— | ||
|
32829M
|
32829M
32829-26760 Ball-Check0211--01 ~ ; TB48DE |
32829-26760 |
from US $0.78 |
||
|
32829M
|
32829M
32829-26760 Ball-Check0211--01 ~ ; TB48DE |
32829-26760 |
from US $0.78 |
||
|
32829M
|
32829M
32829-26760 Ball-Check0211--01 ~ ; TB48DE |
32829-26760 |
from US $0.78 |
||
|
32829M
|
32829M
32829-26760 Ball-Check0211--01 ~ ; TB48DE |
32829-26760 |
from US $0.78 |
||
|
32829MA
|
32829MA
32829-26760 Ball-Check0211--01 ~ ; TB48DE |
32829-26760 |
from US $0.78 |
||
|
32831M
|
32831M
32830-01J00 Spring-Locking Ball0211--01 ~ ; TB48DE |
32830-01J00 |
US $0.86 |
||
|
32831M
|
32831M
32830-01J00 Spring-Locking Ball0211--01 ~ ; TB48DE |
32830-01J00 |
US $0.86 |
||
|
32835M
|
32835M
32834-33G00 Plug-Checking Ball0211--01 ~ ; TB48DE |
32834-33G00 |
US $2.45 |
||
|
32835M
|
32835M
32834-33G00 Plug-Checking Ball0211--01 ~ ; TB48DE |
32834-33G00 |
US $2.45 |
||
|
33040E
|
33040E
24220-VB001 Clip0211--01 ~ ; TB48DE |
24220-VB001 |
US $4.18 |
||
|
33161
|
33161
33161-VC210 Rod-Shift, Low & High0211--01 ~ ; TB48DE |
33161-VC210 |
US $21.31 |
||
|
33162
|
33162
33162-01J01 Fork-Shift, Low & High0211--01 ~ ; TB48DE |
33162-01J01 |
US $54.86 |
||
|
33162
|
33162
33165-33G00 Pin-Retaining0211--01 ~ ; TB48DE |
33165-33G00 |
from US $1.48 |
||
|
33162
|
33162
33165-33G00 Pin-Retaining0211--01 ~ ; TB48DE |
33165-33G00 |
from US $1.48 |
||
|
33162E
|
33162E
33165-33G00 Pin-Retaining0211--01 ~ ; TB48DE |
33165-33G00 |
from US $1.48 |
||
|
33162E
|
33162E
33165-33G00 Pin-Retaining0211--01 ~ ; TB48DE |
33165-33G00 |
from US $1.48 |
||
|
33162EA
|
33162EA
33165-33G00 Pin-Retaining0211--01 ~ ; TB48DE |
33165-33G00 |
from US $1.48 |
||
|
33162EA
|
33162EA
33165-33G00 Pin-Retaining0211--01 ~ ; TB48DE |
33165-33G00 |
from US $1.48 |
||
|
33167
|
33167
33166-01J00 Rod-Shift, Front Drive0211--01 ~ ; TB48DE |
33166-01J00 |
US $23.62 |
||
|
33168
|
33168
33168-VB005 Fork-Shift, Front Drive0211--01 ~ ; TB48DE |
33168-VB005 |
US $58.61 |
||
|
33168
|
33168
33176-33G00 Ring-Retainer, Shift Fork0211--01 ~ ; TB48DE |
33176-33G00 |
US $2.45 |
||
|
33168F
|
33168F
33176-33G00 Ring-Retainer, Shift Fork0211--01 ~ ; TB48DE |
33176-33G00 |
US $2.45 |
||
|
33169
|
33169
33169-31G00 Spring-Shift Fork0211--01 ~ ; TB48DE |
33169-31G00 |
US $4.18 |
||
|
33175
|
33175
33175-C6900 Plunger-Inter Lock0211--01 ~ ; TB48DE |
33175-C6900 |
US $4.18 |
||
|
33178
|
33178
33178-01J00 Collar-Fork Guide0211--01 ~ ; TB48DE |
33178-01J00 |
US $8.73 |
||
|
33184
|
33184
33184-C6900 Lever-Diff0211--01 ~ ; TB48DE |
33184-C6900 |
US $5.18 |
||
|
33191
|
33191
33190-VB000 Shaft-Cross Shift0211--01 ~ ; TB48DE |
33190-VB000 |
US $87.84 |
||
|
350
|
Transfer control parts
350
|
||||
|
350
|
Transfer control parts
350
|
||||
