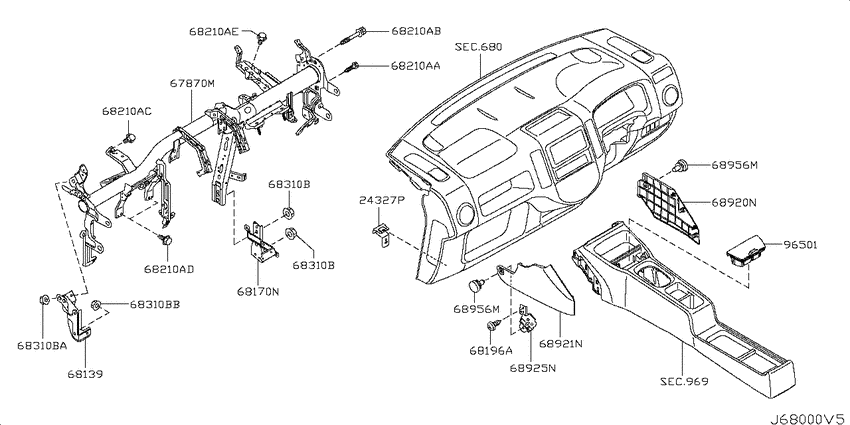

Instrument panel, pad & cluster lid (2006-12-01 ~ ; インスト フィッティング; V) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2006 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- GX
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24327P
|
24327P
68191-51E00
NUT
0612--01 ~ ; V |
68191-51E00 |
— | ||
| replacement | |||||
|
24327P
|
24327P
6819151E0A Nut0612--01 ~ ; V |
6819151E0A |
US $1.39 |
||
|
67870M
|
67870M
67870-JJ00A Member Assy-Steering0612--01 ~ ; V |
67870-JJ00A |
US $192.96 |
||
|
680
|
Instrument panel, pad & cluster lid
680
|
||||
|
680
|
Instrument panel, pad & cluster lid
680
|
||||
|
68139
|
68139
68139-CV000 Bracket-Instrument Member, Lh0612--01 ~ ; V |
68139-CV000 |
US $8.78 |
||
|
68170N
|
68170N
68170-ED000 Stay Assy-Instrument, Driver0612--01 ~ ; V |
68170-ED000 |
US $51.55 |
||
|
68196A
|
68196A
0145100581 SCREW0612--01 ~ ; V |
0145100581 |
from US $0.80 |
||
|
68196A
|
68196A
0145100581 SCREW0612--01 ~ ; V |
0145100581 |
from US $0.80 |
||
|
68210AA
|
68210AA
01121-07321 BOLT0612--01 ~ ; V |
01121-07321 |
US $1.73 |
||
|
68210AB
|
68210AB
01121-07291 BOLT0612--01 ~ ; V |
01121-07291 |
US $2.45 |
||
|
68210AC
|
68210AC
01125-03421 BOLT0612--01 ~ ; V |
01125-03421 |
US $1.93 |
||
|
68210AD
|
68210AD
01121-07281 BOLT0612--01 ~ ; V |
01121-07281 |
US $1.73 |
||
|
68210AE
|
68210AE
01121-01053 BOLT0612--01 ~ ; V |
01121-01053 |
US $2.45 |
||
|
68310B
|
68310B
0122500371 NUT0612--01 ~ ; V |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500701 NUT0612--01 ~ ; V |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
0122500701 NUT0612--01 ~ ; V |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
0122500371 NUT0612--01 ~ ; V |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500701 NUT0612--01 ~ ; V |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
0122500701 NUT0612--01 ~ ; V |
0122500701 |
from US $0.81 |
||
|
68310BA
|
68310BA
0122500701 NUT0612--01 ~ ; V |
0122500701 |
from US $0.81 |
||
|
68310BB
|
68310BB
0122500701 NUT0612--01 ~ ; V |
0122500701 |
from US $0.81 |
||
|
68920N
|
68920N
68920-JJ00A ｶﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｲﾝｽﾄﾙﾒﾝﾄ ﾛｱ rh0612--01 ~ ; V |
68920-JJ00A |
US $43.49 |
||
|
68921N
|
68921N
68921-JJ00A ｶﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｲﾝｽﾄﾙﾒﾝﾄ ﾛｱ lh0612--01 ~ ; V |
68921-JJ00A |
US $33.98 |
||
|
68925N
|
68925N
68925-AX000 Bracket-Instrument Lower Cover0612--01 ~ ; V |
68925-AX000 |
US $5.33 |
||
|
68956M
|
68956M
689563U000 Clip-Lower Cover0612--01 ~ ; V |
689563U000 |
US $1.73 |
||
|
68956M
|
68956M
689563U000 Clip-Lower Cover0612--01 ~ ; V |
689563U000 |
US $1.73 |
||
|
96501
|
96501
68800JJ00A ｲﾝｽﾄﾙﾒﾝﾄ ｱｼﾕﾄﾚ-0612--01 ~ ; V |
68800JJ00A |
US $44.35 |
||
|
969
|
Console box
969
|
||||
