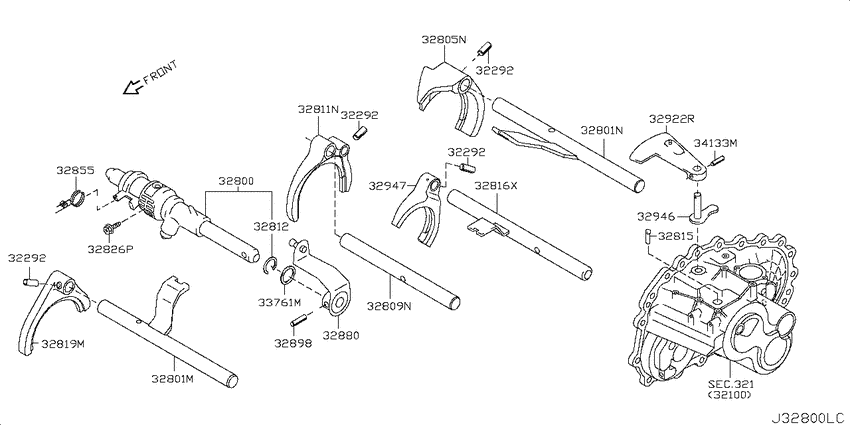

Transmission shift control (2007-08-01 ~ ; 6MT) Diagram Nissan X-TRAIL
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 4WD
- transmission
- 6MT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
32292
|
32292
322926J000 Pin-Retaining0708--01 ~ ; 6MT |
322926J000 |
US $1.73 |
||
|
32292
|
32292
322926J000 Pin-Retaining0708--01 ~ ; 6MT |
322926J000 |
US $1.73 |
||
|
32292
|
32292
322926J000 Pin-Retaining0708--01 ~ ; 6MT |
322926J000 |
US $1.73 |
||
|
32292
|
32292
322926J000 Pin-Retaining0708--01 ~ ; 6MT |
322926J000 |
US $1.73 |
||
|
32800
|
32800
32800-JA60C Control Assy-Shift0708--01 ~ ; 6MT |
32800-JA60C |
US $344.09 |
||
|
32801M
|
32801M
32800-JA60B Rod-Fork, 1St & Reverse0708--01 ~ ; 6MT |
32800-JA60B |
US $19.44 |
||
|
32801N
|
32801N
32800-JA60A Rod-Fork, 1St & 2Nd0708--01 ~ ; 6MT |
32800-JA60A |
US $26.93 |
||
|
32805N
|
32805N
32805-JA60A Fork-Shift, 1St & 2Nd0708--01 ~ ; 6MT |
32805-JA60A |
US $53.86 |
||
|
32809N
|
32809N
32809-JA60A Rod-Fork, 3Rd & 4Th0708--01 ~ ; 6MT |
32809-JA60A |
US $44.35 |
||
|
32811N
|
32811N
32811-JA60A Fork-Shift, 3Rd & 4Th0708--01 ~ ; 6MT |
32811-JA60A |
US $56.30 |
||
|
32812
|
32812
32812-6J000 Ring-Stopper0708--01 ~ ; 6MT |
32812-6J000 |
US $4.18 |
||
|
32815
|
32815
32815-JA60A Plunger-Inter Lock0708--01 ~ ; 6MT |
32815-JA60A |
US $2.45 |
||
|
32816X
|
32816X
32808-JA60A Rod Assy-Fork, 5Th&6Th0708--01 ~ ; 6MT |
32808-JA60A |
US $42.05 |
||
|
32819M
|
32819M
32819-JA60A Fork-Shift, Reverse0708--01 ~ ; 6MT |
32819-JA60A |
US $43.78 |
||
|
32826P
|
32826P
32826-JA60A Pin-Inter Lock0708--01 ~ ; 6MT |
32826-JA60A |
US $8.21 |
||
|
32855
|
32855
32855-JA60A Spring-Return0708--01 ~ ; 6MT |
32855-JA60A |
US $2.45 |
||
|
32880
|
32880
32880-JA60B Lever Assy-Select0708--01 ~ ; 6MT |
32880-JA60B |
US $26.06 |
||
|
32898
|
32898
34133M8000 Pin-Retaining0708--01 ~ ; 6MT |
34133M8000 |
from US $4.03 |
||
|
32922R
|
32922R
32922-JA60B Lever Shift Outer0708--01 ~ ; 6MT |
32922-JA60B |
US $51.98 |
||
|
32946
|
32946
32946-JA60A Lever-Shift, Sub0708--01 ~ ; 6MT |
32946-JA60A |
US $52.85 |
||
|
32947
|
32947
32947-JA60A Fork-Shift, 6Th0708--01 ~ ; 6MT |
32947-JA60A |
US $32.26 |
||
|
33761M
|
33761M
33761-JA60A Shim0708--01 ~ ; 6MT; T=1.12 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33761-JA60A |
US $4.61 |
||
|
33761M
|
33761M
33761-JA61A Shim0708--01 ~ ; 6MT; T=1.20 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33761-JA61A |
US $4.61 |
||
|
33761M
|
33761M
33761-JA62A Shim0708--01 ~ ; 6MT; T=1.28 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33761-JA62A |
US $4.61 |
||
|
33761M
|
33761M
33761-JA63A Shim0708--01 ~ ; 6MT; T=1.36 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33761-JA63A |
US $4.61 |
||
|
33761M
|
33761M
33761-JA64A Shim0708--01 ~ ; 6MT; T=1.44 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33761-JA64A |
US $4.61 |
||
|
33761M
|
33761M
33761-JA65A Shim0708--01 ~ ; 6MT; T=1.52 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33761-JA65A |
US $4.61 |
||
|
33761M
|
33761M
33761-JA66A Shim0708--01 ~ ; 6MT; T=1.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33761-JA66A |
US $4.61 |
||
|
33761M
|
33761M
33761-JA67A Shim0708--01 ~ ; 6MT; T=1.66 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33761-JA67A |
US $4.61 |
||
|
33761M
|
33761M
33761-JA68A Shim0708--01 ~ ; 6MT; ｾﾝﾀｸ T=1.72 |
33761-JA68A |
US $4.61 |
||
|
33761M
|
33761M
33761-JA69A Shim0708--01 ~ ; 6MT; SELECT T=1.84 |
33761-JA69A |
US $4.61 |
||
|
34133M
|
34133M
34133-JA60A Tube-Guide, Cont Rod0708--01 ~ ; 6MT |
34133-JA60A |
US $7.06 |
||
