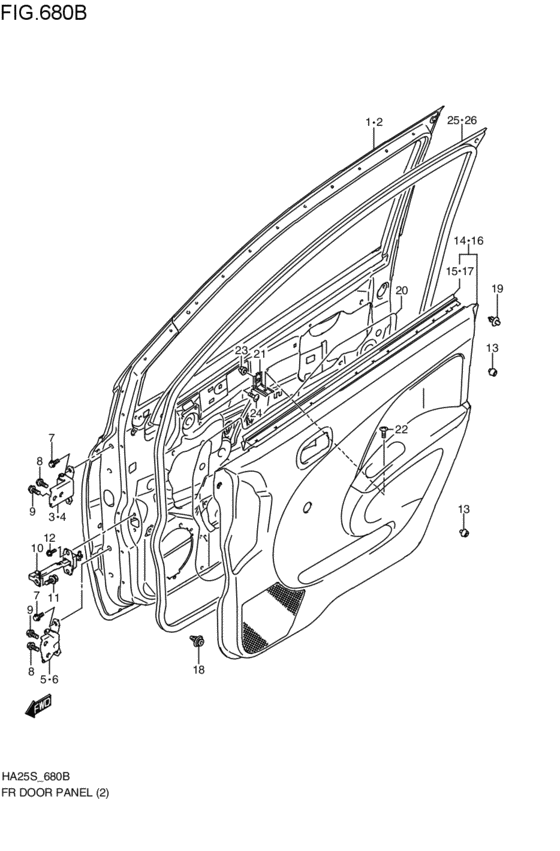

front door panel (SE; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- SE
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-64L00-000
パネルアッシ,フロントドア,ライト
SE; 2009-09-01~ |
68001-64L00-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-62P00-000
New Genuine Part
SE; 2009-09-01~ |
68001-62P00-000 |
— | ||
|
2
|
2
68002-64L00-000
パネルアッシ,フロントドア,レフト
SE; 2009-09-01~ |
68002-64L00-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-62P00-000 PANEL ASSY,FRONT DOOR,LSE; 2009-09-01~ |
68002-62P00-000 |
US $587.84 |
||
|
3
|
3
69310-72J00-000 HINGE,FR DOOR UPR,RSE; 2009-09-01~ |
69310-72J00-000 |
US $38.64 |
||
|
4
|
4
69320-72J00-000 HINGE,FR DOOR UPR,LSE; 2009-09-01~ |
69320-72J00-000 |
US $38.64 |
||
|
5
|
5
69330-81J00-000 HINGE,FR DOOR LWR,RSE; 2009-09-01~ |
69330-81J00-000 |
US $37.17 |
||
|
6
|
6
69340-81J00-000 HINGE,FR DOOR LWR,LSE; 2009-09-01~ |
69340-81J00-000 |
US $37.17 |
||
|
7
|
7
09103-08389-000 BOLT(8X24)SE; 2009-09-01~ |
09103-08389-000 |
US $17.30 |
||
|
8
|
8
09113-08001-000 BOLT(8X20)SE; 2009-09-01~ |
09113-08001-000 |
US $14.40 |
||
|
9
|
9
01551-0820A-000 BOLTSE; 2009-09-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
10
|
10
81810-82K00-000
Stop,front door open
SE; 2009-09-01~ |
81810-82K00-000 |
— | ||
| replacement | |||||
|
10
|
10
81810-82K01-000 STOP,FRONT DOOR OPENSE; 2009-09-01~ |
81810-82K01-000 |
US $16.08 |
||
|
11
|
11
09112-08015-000 BOLT(8X25)SE; 2009-09-01~ |
09112-08015-000 |
US $19.50 |
||
|
12
|
12
09122-86004-000 SCREW(6X20)SE; 2009-09-01~ |
09122-86004-000 |
US $11.80 |
||
|
13
|
13
82711-68H00-000 STOPPER,DOORSE; 2009-09-01~ |
82711-68H00-000 |
US $2.40 |
||
|
14
|
14
83710-64L00-V6N
トリム,フロントドア,ライト(ベージュ)
SE; 2009-09-01~ |
83710-64L00-V6N |
— | ||
| replacement | |||||
|
14
|
14
83710-64L01-V6N
New Genuine Part
SE; 2009-09-01~ |
83710-64L01-V6N |
— | ||
|
15
|
15
83719-64L00-000
ウェザストリップ,フロントドアインナ,ライト
SE; 2009-09-01~ |
83719-64L00-000 |
— | ||
|
16
|
16
83720-64L00-V6N
トリム,フロントドア,レフト(ベージュ)
SE; 2009-09-01~ |
83720-64L00-V6N |
— | ||
| replacement | |||||
|
16
|
16
83720-64L01-V6N
New Genuine Part
SE; 2009-09-01~ |
83720-64L01-V6N |
— | ||
|
17
|
17
83729-64L00-000
ウェザストリップ,フロントドアインナ,レフト
SE; 2009-09-01~ |
83729-64L00-000 |
— | ||
|
18
|
18
09409-10312-000 CLIPSE; 2009-09-01~ |
09409-10312-000 |
from US $1.08 |
||
|
19
|
19
09409-06314-P4Z CLIP(GRAY)SE; 2009-09-01~ |
09409-06314-P4Z |
US $1.60 |
||
|
20
|
20
83911-64L00-000
カバー,フロントドアシーリング
SE; 2009-09-01~ |
83911-64L00-000 |
— | ||
|
21
|
21
83751-73H0V-000 BRACKET,SIDE DR TRIMSE; 2009-09-01~ |
83751-73H0V-000 |
US $4.38 |
||
|
22
|
22
09132-05058-000 SCREW(5X12)SE; 2009-09-01~ |
09132-05058-000 |
US $12.50 |
||
|
23
|
23
09148-06007-000 NUTSE; 2009-09-01~ |
09148-06007-000 |
from US $0.88 |
||
|
24
|
24
03241-0612A-000 SCREWSE; 2009-09-01~ |
03241-0612A-000 |
US $0.80 |
||
|
25
|
25
84641-64L00-000
ウェザストリップ,フロントドアオープニング,ライト
SE; 2009-09-01~ |
84641-64L00-000 |
— | ||
| replacement | |||||
|
25
|
25
84641-62P00-000
New Genuine Part
SE; 2009-09-01~ |
84641-62P00-000 |
— | ||
|
26
|
26
84651-64L00-000
ウェザストリップ,フロントドアオープニング,レフト
SE; 2009-09-01~ |
84651-64L00-000 |
— | ||
| replacement | |||||
|
26
|
26
84651-62P00-000
New Genuine Part
SE; 2009-09-01~ |
84651-62P00-000 |
— | ||
