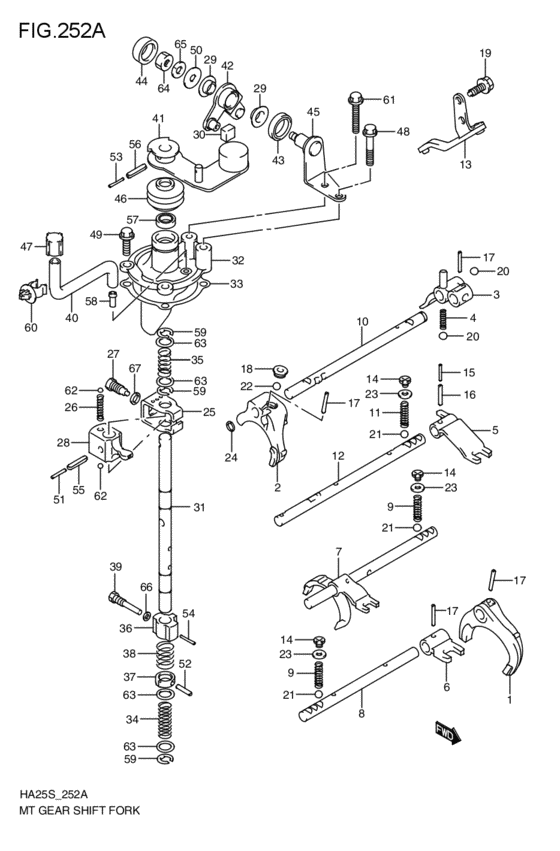

mt - gearlever fork (MT; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- SE
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-63D00-000
Fork,low speed gear shift
MT; 2009-09-01~ |
25211-63D00-000 |
— | ||
| replacement | |||||
|
1
|
1
25211-63D20-000 FORK,LOW SPEED GEAR SHIFTMT; 2009-09-01~ |
25211-63D20-000 |
US $61.46 |
||
|
2
|
2
25231-70B52-000 FORK,5TH GEAR SHIFTMT; 2009-09-01~ |
25231-70B52-000 |
US $58.51 |
||
|
3
|
3
25251-78G00-000 ARM,REVERSE GEAR SHIFTMT; 2009-09-01~ |
25251-78G00-000 |
US $64.03 |
||
|
4
|
4
25255-60B01-000 SPRING,REVERSE GEAR SHF ARMMT; 2009-09-01~ |
25255-60B01-000 |
US $1.60 |
||
|
5
|
5
25261-78G00-000 YOKE,5TH&REVERSE GEAR SHIFTMT; 2009-09-01~ |
25261-78G00-000 |
US $55.94 |
||
|
6
|
6
25271-78G00-000 YOKE,LOW SPEED GEAR SHIFTMT; 2009-09-01~ |
25271-78G00-000 |
US $47.84 |
||
|
7
|
7
25280-72J00-000 SHAFT,HIGH SPEED GEAR SHFMT; 2009-09-01~ |
25280-72J00-000 |
US $87.22 |
||
|
8
|
8
25411-72J20-000 SHAFT,LOW SPEED GEAR SHIFTMT; 2009-09-01~ |
25411-72J20-000 |
US $21.71 |
||
|
9
|
9
25425-60B01-000 SPRING,HIGH SPEED LOCATINGMT; 2009-09-01~ |
25425-60B01-000 |
US $2.58 |
||
|
10
|
10
25431-73B52-000 SHAFT,5TH&REV GEAR SHF GUIDEMT; 2009-09-01~ |
25431-73B52-000 |
US $26.13 |
||
|
11
|
11
25435-70B00-000 SPRING,LOCATINGMT; 2009-09-01~ |
25435-70B00-000 |
US $2.87 |
||
|
12
|
12
25451-72J20-000 SHAFT,5TH&REV GEAR SHIFTMT; 2009-09-01~ |
25451-72J20-000 |
US $26.50 |
||
|
13
|
13
25460-78G00-000 LEVER,REV GEAR SHFMT; 2009-09-01~ |
25460-78G00-000 |
US $21.71 |
||
|
14
|
14
09128-10002-000 BOLT(10X9)MT; 2009-09-01~ |
09128-10002-000 |
from US $1.28 |
||
|
15
|
15
09205-02016-000 PIN,SPRING(2.7X20)MT; 2009-09-01~ |
09205-02016-000 |
US $10.30 |
||
|
16
|
16
09205-04015-000 PIN,SPRING(4.5X20)MT; 2009-09-01~ |
09205-04015-000 |
US $35.30 |
||
|
17
|
17
09205-04015-000 PIN,SPRING(4.5X20)MT; 2009-09-01~ |
09205-04015-000 |
US $35.30 |
||
|
18
|
18
09248-10006-000 PLUGMT; 2009-09-01~ |
09248-10006-000 |
from US $6.38 |
||
|
19
|
19
01570-0820A-000 BOLTMT; 2009-09-01~ |
01570-0820A-000 |
from US $0.96 |
||
|
20
|
20
06111-10003-000 BALLMT; 2009-09-01~ |
06111-10003-000 |
from US $0.80 |
||
|
21
|
21
06111-10003-000 BALLMT; 2009-09-01~ |
06111-10003-000 |
from US $0.80 |
||
|
22
|
22
06111-10003-000 BALLMT; 2009-09-01~ |
06111-10003-000 |
from US $0.80 |
||
|
23
|
23
08322-0110A-000 WASHERWasher, knuckle end MT; 2009-09-01~ |
08322-0110A-000 |
from US $0.80 |
||
|
24
|
24
08331-3112A-000 CIRCLIPMT; 2009-09-01~ |
08331-3112A-000 |
from US $0.91 |
||
|
25
|
25
25311-59J20-000
Plate,gear shift interlock
MT; 2009-09-01~ |
25311-59J20-000 |
— | ||
| replacement | |||||
|
25
|
25
25311-59J21-000 PLATE,GEAR SHF INTERLOCKMT; 2009-09-01~ |
25311-59J21-000 |
US $9.57 |
||
|
26
|
26
25312-70C00-000 SPRING,GEAR SHIFT INTERLOCKMT; 2009-09-01~ |
25312-70C00-000 |
US $2.36 |
||
|
27
|
27
25321-86G00-000
BOLT,GEAR SHF INTERLOCK
MT; 2009-09-01~ |
25321-86G00-000 |
— | ||
| replacement | |||||
|
27
|
27
25321-74PE0-000 BOLT,GEAR SHF INTERLOCKMT; 2009-09-01~ |
25321-74PE0-000 |
US $3.31 |
||
|
28
|
28
25541-51K20-000 LEVER,GEAR SHF&SLTMT; 2009-09-01~ |
25541-51K20-000 |
US $40.11 |
||
|
29
|
29
25558-74B01-000 BUSH,SEL LEVER BOSSMT; 2009-09-01~ |
25558-74B01-000 |
US $1.60 |
||
|
30
|
30
25559-50F00-000 BUSH,SELECT LEVER SHAFTMT; 2009-09-01~ |
25559-50F00-000 |
US $5.76 |
||
|
31
|
31
25571-78G01-000 SHAFT,GEAR SHIFT&SELECTMT; 2009-09-01~ |
25571-78G01-000 |
US $26.50 |
||
|
32
|
32
25573-78G00-000 CASE,GEAR SHF GUIDEMT; 2009-09-01~ |
25573-78G00-000 |
US $48.21 |
||
|
33
|
33
25574-74B00-000 GASKET,GEAR SHF GUIDE CASEMT; 2009-09-01~ |
25574-74B00-000 |
US $4.42 |
||
|
34
|
34
25576-75H00-000 SPRING,SELECTMT; 2009-09-01~ |
25576-75H00-000 |
US $3.72 |
||
|
35
|
35
25576-83E00-000 SPRING,LOW SPEED SELECTMT; 2009-09-01~ |
25576-83E00-000 |
US $3.28 |
||
|
36
|
36
25581-51K01-000 CAM,5TH&REV GRAR SHIFTMT; 2009-09-01~ |
25581-51K01-000 |
US $16.80 |
||
|
37
|
37
25582-60B51-000 GUIDE,5TH&REV GR SHFMT; 2009-09-01~ |
25582-60B51-000 |
US $6.72 |
||
|
38
|
38
25583-60B50-000 SPRING,CAM GUIDE RETURNMT; 2009-09-01~ |
25583-60B50-000 |
US $2.08 |
||
|
39
|
39
25584-51K00-000 BOLT,5TH TO REV INTLK GUIDEMT; 2009-09-01~ |
25584-51K00-000 |
US $3.46 |
||
|
40
|
40
25585-78G00-000 HOSE,T/M BREATHERMT; 2009-09-01~ |
25585-78G00-000 |
US $10.89 |
||
|
41
|
41
25610-78G20-000 LEVER,SHIFT CABLEMT; 2009-09-01~ |
25610-78G20-000 |
US $49.68 |
||
|
42
|
42
25620-70K00-000
レバー,セレクトケーブル
MT; 2009-09-01~ |
25620-70K00-000 |
— | ||
|
43
|
43
25624-74B00-000 BOOT,SEL LEVER INSIDEMT; 2009-09-01~ |
25624-74B00-000 |
US $5.28 |
||
|
44
|
44
25625-74B00-000 BOOT,SEL LEVER OUTSIDEMT; 2009-09-01~ |
25625-74B00-000 |
US $5.28 |
||
|
45
|
45
25630-74B01-000 BRACKET,SELECT LEVERMT; 2009-09-01~ |
25630-74B01-000 |
US $32.38 |
||
|
46
|
46
25651-74B00-000 BOOT,SHIFT&SELECT SFT OILMT; 2009-09-01~ |
25651-74B00-000 |
from US $3.62 |
||
|
47
|
47
27991-65D01-000 PLUG,BREATHERMT; 2009-09-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
48
|
48
09103-08366-000 BOLT(8X45)MT; 2009-09-01~ |
09103-08366-000 |
US $1.68 |
||
|
49
|
49
09103-08419-000 BOLT(8X25)MT; 2009-09-01~ |
09103-08419-000 |
from US $2.08 |
||
|
50
|
50
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT; 2009-09-01~ |
09160-08151-000 |
from US $0.91 |
||
|
51
|
51
09205-03016-000 PIN,SPRING(3.5X28)MT; 2009-09-01~ |
09205-03016-000 |
US $11 |
||
|
52
|
52
09205-03035-000 PIN,SPRING(3X22)MT; 2009-09-01~ |
09205-03035-000 |
US $9.20 |
||
|
53
|
53
09205-03037-000 PIN,SPRING(3X25)MT; 2009-09-01~ |
09205-03037-000 |
from US $0.77 |
||
|
54
|
54
09205-04015-000 PIN,SPRING(4.5X20)MT; 2009-09-01~ |
09205-04015-000 |
US $35.30 |
||
|
55
|
55
09205-06004-000 PIN,SPRING(6X28)MT; 2009-09-01~ |
09205-06004-000 |
US $11.40 |
||
|
56
|
56
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) MT; 2009-09-01~ |
09205-06007-000 |
from US $1.60 |
||
|
57
|
57
09283-14006-000 SEAL,OIL(14X22X6)MT; 2009-09-01~ |
09283-14006-000 |
from US $3.62 |
||
|
58
|
58
09364-06007-000 UNIONMT; 2009-09-01~ |
09364-06007-000 |
US $17.70 |
||
|
59
|
59
08332-1112A-000 E RINGMT; 2009-09-01~ |
08332-1112A-000 |
from US $0.96 |
||
|
60
|
60
09403-11311-000 CLAMPMT; 2009-09-01~ |
09403-11311-000 |
US $1.38 |
||
|
61
|
61
01550-0820A-000 BOLTBolt, funnel bracket MT; 2009-09-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
62
|
62
06111-07004-000 BALLMT; 2009-09-01~ |
06111-07004-000 |
from US $0.76 |
||
|
63
|
63
08212-14301-000 WASHERMT; 2009-09-01~ |
08212-14301-000 |
from US $0.77 |
||
|
64
|
64
08310-0008A-000 NUTNut, bead stopper MT; 2009-09-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
65
|
65
08321-0108A-000 WASHER,LOCKMT; 2009-09-01~ |
08321-0108A-000 |
from US $0.80 |
||
|
66
|
66
08322-0108A-000 WASHERMT; 2009-09-01~ |
08322-0108A-000 |
from US $0.80 |
||
|
67
|
67
08322-0110A-000 WASHERWasher, knuckle end MT; 2009-09-01~ |
08322-0110A-000 |
from US $0.80 |
||
