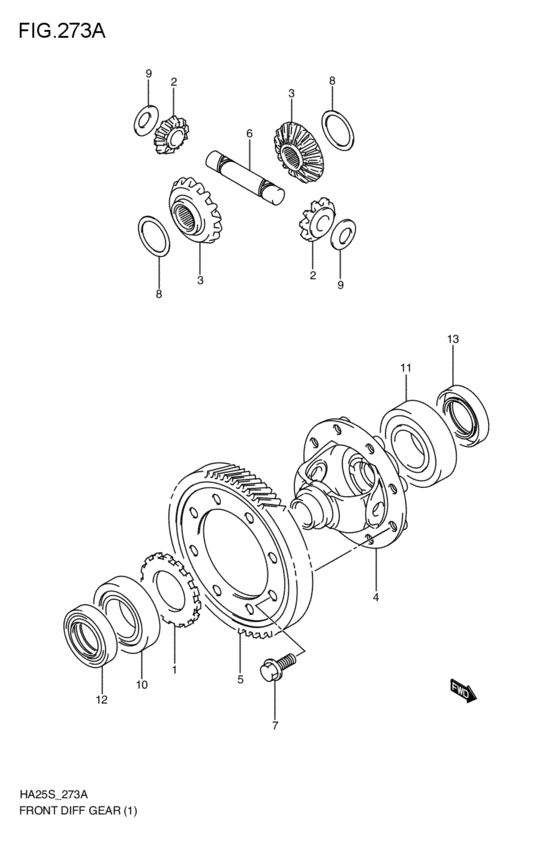

フロントデファレンシャルギヤ (MT:2WD; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- SE
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26121-80G10-000 RING,EXCITERMT:2WD; 2009-09-01~ |
26121-80G10-000 |
US $18.95 |
||
|
2
|
2
27331-83020-000 PINION,DIFFERENTIALMT:2WD; 2009-09-01~ |
27331-83020-000 |
from US $31.39 |
||
| replacements | |||||
|
2
|
2
27331-76A20-000
PINION,DIFFERENTIAL
MT:2WD; 2009-09-01~ |
27331-76A20-000 |
— | ||
|
2
|
2
27331-76A21-000 Pinion,differentialMT:2WD; 2009-09-01~ |
27331-76A21-000 |
from US $43.75 |
||
|
3
|
3
27341-51K40-000
Gear,differential
MT:2WD; 2009-09-01~ |
27341-51K40-000 |
— | ||
| replacement | |||||
|
3
|
3
27341-51K80-000 GEAR,DIFFMT:2WD; 2009-09-01~ |
27341-51K80-000 |
US $55.94 |
||
|
4
|
4
27411-78G01-000 CASE,FR DIFFMT:2WD; 2009-09-01~ |
27411-78G01-000 |
US $119.97 |
||
|
5
|
5
27511-70K00-000
ギヤ,ファイナル
MT:2WD; 2009-09-01~ |
27511-70K00-000 |
— | ||
| replacement | |||||
|
5
|
5
27511-70K01-000
New Genuine Part
MT:2WD; 2009-09-01~ |
27511-70K01-000 |
— | ||
|
6
|
6
27555-53F00-000 SHAFT,DIFF SIDE PINIONMT:2WD; 2009-09-01~ |
27555-53F00-000 |
US $26.31 |
||
|
7
|
7
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch MT:2WD; 2009-09-01~ |
09103-10189-000 |
from US $2.40 |
||
|
8
|
8
09160-35002-000 WASHER(35X46X1)MT:2WD; 2009-09-01~ |
09160-35002-000 |
from US $1.40 |
||
|
8
|
8
09160-35003-000 WASHER(35X46X1.1)MT:2WD; 2009-09-01~ |
09160-35003-000 |
from US $1.89 |
||
|
8
|
8
09160-35006-000 WASHER(35X46X0.9)MT:2WD; 2009-09-01~ |
09160-35006-000 |
from US $1.60 |
||
|
9
|
9
09164-15006-000 WASHERMT:2WD; 2009-09-01~ |
09164-15006-000 |
from US $1.60 |
||
|
10
|
10
09262-35070-000 BEARING(35X62X14)MT:2WD; 2009-09-01~ |
09262-35070-000 |
from US $23.20 |
||
|
11
|
11
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) MT:2WD; 2009-09-01~ |
09262-35038-000 |
from US $22.04 |
||
|
12
|
12
09283-40028-000 SEAL,OIL(40X58X9.6)MT:2WD; 2009-09-01~ |
09283-40028-000 |
from US $10.08 |
||
|
13
|
13
09283-40029-000 SEAL,OIL(40X62X8)MT:2WD; 2009-09-01~ |
09283-40029-000 |
from US $12.89 |
||
