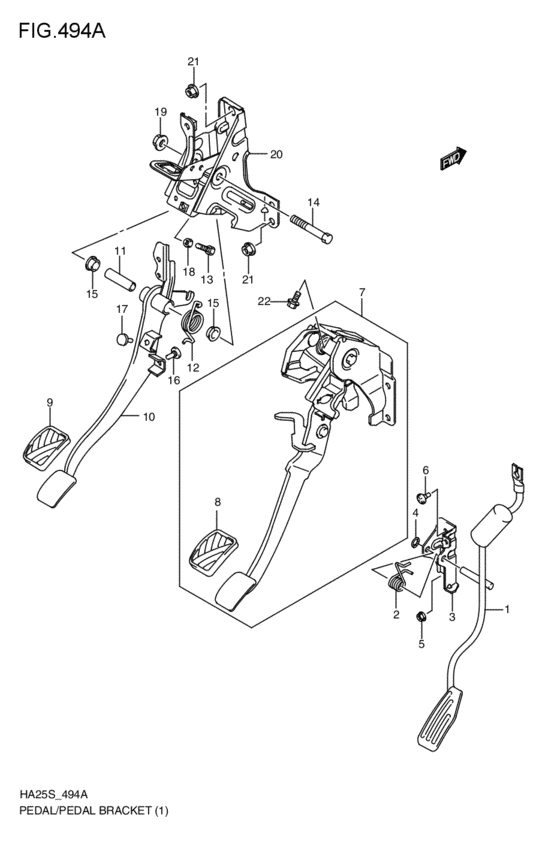

pedal / pedal bracket (MT; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- SE
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-64L00-000
ペダル,アクセレレータ
MT; 2009-09-01~ |
49410-64L00-000 |
— | ||
|
2
|
2
49491-58J00-000 SPRING,ACCELERATOR PEDALMT; 2009-09-01~ |
49491-58J00-000 |
US $5.63 |
||
|
3
|
3
49511-58J00-000
ブラケット,アクセレレータペダル
MT; 2009-09-01~ |
49511-58J00-000 |
— | ||
|
4
|
4
09148-09001-000 NUTMT; 2009-09-01~ |
09148-09001-000 |
from US $2.02 |
||
|
5
|
5
09159-06076-000 NUTMT; 2009-09-01~ |
09159-06076-000 |
from US $1.28 |
||
|
6
|
6
09321-06026-000 CUSHIONMT; 2009-09-01~ |
09321-06026-000 |
from US $1.60 |
||
|
7
|
7
49600-64L00-000
ペダルアッシ,ブレーキ
MT; 2009-09-01~ |
49600-64L00-000 |
— | ||
|
8
|
8
49751-58J00-000 PAD,PEDALMT; 2009-09-01~ |
49751-58J00-000 |
from US $2.59 |
||
| replacement | |||||
|
8
|
8
49751-58J20-000 PAD,PEDALMT; 2009-09-01~ |
49751-58J20-000 |
from US $4.10 |
||
|
9
|
9
49751-58J00-000 PAD,PEDALMT; 2009-09-01~ |
49751-58J00-000 |
from US $2.59 |
||
| replacement | |||||
|
9
|
9
49751-58J20-000 PAD,PEDALMT; 2009-09-01~ |
49751-58J20-000 |
from US $4.10 |
||
|
10
|
10
49810-70K20-000
ペダル,クラッチ
MT; 2009-09-01~ |
49810-70K20-000 |
— | ||
|
11
|
11
49871-80F00-000 SPACER,PEDAL SHAFTMT; 2009-09-01~ |
49871-80F00-000 |
US $4.20 |
||
|
12
|
12
49891-50E00-000 SPRING,CLUTCH PEDALMT; 2009-09-01~ |
49891-50E00-000 |
US $5.30 |
||
|
13
|
13
09100-06150-000 BOLT(6X31)Bolt, adjuster MT; 2009-09-01~ |
09100-06150-000 |
from US $3.15 |
||
|
14
|
14
09100-10304-000 BOLT(10X65)MT; 2009-09-01~ |
09100-10304-000 |
US $35.30 |
||
|
15
|
15
09307-13005-000 BUSHBushing MT; 2009-09-01~ |
09307-13005-000 |
from US $2.72 |
||
|
16
|
16
09321-06026-000 CUSHIONMT; 2009-09-01~ |
09321-06026-000 |
from US $1.60 |
||
|
17
|
17
09321-06033-000 CUSHIONMT; 2009-09-01~ |
09321-06033-000 |
from US $1.68 |
||
|
18
|
18
08310-0006A-000 NUTMT; 2009-09-01~ |
08310-0006A-000 |
from US $0.76 |
||
|
19
|
19
08316-1010A-000 NUTNut, kick starter MT; 2009-09-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
20
|
20
49720-70K20-000
ブラケット,クラッチペダル
MT; 2009-09-01~ |
49720-70K20-000 |
— | ||
| replacement | |||||
|
20
|
20
49720-64L00-000
New Genuine Part
MT; 2009-09-01~ |
49720-64L00-000 |
— | ||
|
21
|
21
09159-08127-000 NUTMT; 2009-09-01~ |
09159-08127-000 |
US $9.90 |
||
|
22
|
22
01551-0816C-000 BoltMT; 2009-09-01~ |
01551-0816C-000 |
from US $0.96 |
||
