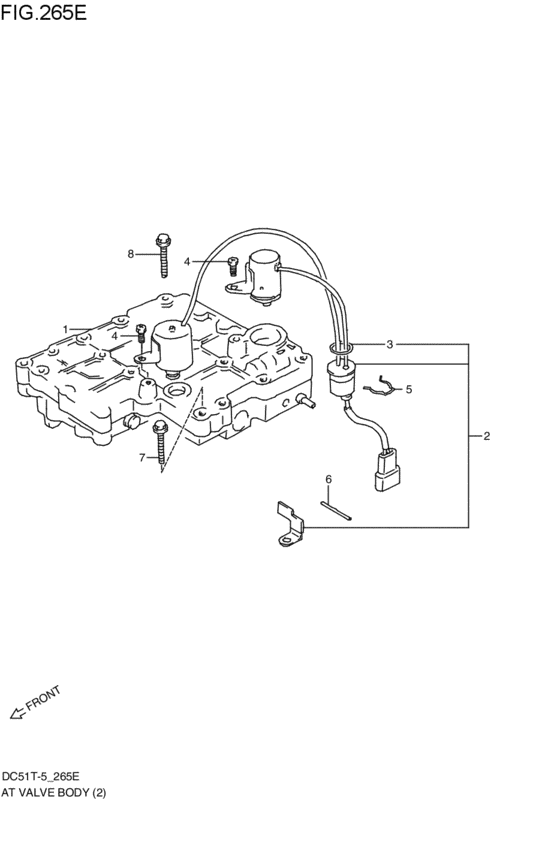

at - valve (V:AT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- 2WD
- transmission
- AT
- grade
- PG
- number of the gears
- 3AT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26500-51F82-000
バルブアッシ,トランスミッションコントロール
V:AT:TURBO; 1997-04-01~1998-11-01 |
26500-51F82-000 |
— | ||
|
2
|
2
26580-51F02-000
ソレノイドアッシ,コントロール
V:AT; 1997-04-01~1998-11-01 |
26580-51F02-000 |
— | ||
|
3
|
3
26584-71B70-000
Oリング
V:AT; 1997-04-01~1998-11-01 |
26584-71B70-000 |
— | ||
| replacement | |||||
|
3
|
3
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe V:AT; 1997-04-01~1998-11-01 |
09280-16005-000 |
from US $2.43 |
||
|
4
|
4
09136-05001-000
SCREW(5X12)
V:AT; 1997-04-01~1998-11-01 |
09136-05001-000 |
— | ||
|
5
|
5
26568-71B70-000 RING,SOLENOID HARNESS SNAPV:AT; 1997-04-01~1998-11-01 |
26568-71B70-000 |
US $2.36 |
||
|
6
|
6
26567-71B70-290
ROD THROTTLE VALVE
V:AT; 1997-04-01~1998-11-01 |
26567-71B70-290 |
— | ||
|
6
|
6
26567-71B70-295
ロッド,スロットルバルブ
V:AT; 1997-04-01~1998-11-01 |
26567-71B70-295 |
— | ||
|
6
|
6
26567-71B70-300
ROD,THROTTLE VALVE
V:AT; 1997-04-01~1998-11-01 |
26567-71B70-300 |
— | ||
|
6
|
6
26567-71B70-305
ロッド,スロットルバルブ
V:AT; 1997-04-01~1998-11-01 |
26567-71B70-305 |
— | ||
|
6
|
6
26567-71B70-310
ロッド,スロットルバルブ
V:AT; 1997-04-01~1998-11-01 |
26567-71B70-310 |
— | ||
|
6
|
6
26567-71B70-315
ロッド,スロットルバルブ
V:AT; 1997-04-01~1998-11-01 |
26567-71B70-315 |
— | ||
|
7
|
7
01550-06303-000
Bolt (6x30)
V:AT; 1997-04-01~1998-11-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0630A-000 BOLTV:AT; 1997-04-01~1998-11-01 |
01550-0630A-000 |
from US $0.96 |
||
|
8
|
8
01550-06353-000
Bolt
V:AT; 1997-04-01~1998-11-01 |
01550-06353-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0635B-000 BoltV:AT; 1997-04-01~1998-11-01 |
01550-0635B-000 |
from US $0.91 |
||
|
8
|
8
01550-0635A-000 BoltV:AT; 1997-04-01~1998-11-01 |
01550-0635A-000 |
from US $0.96 |
||
