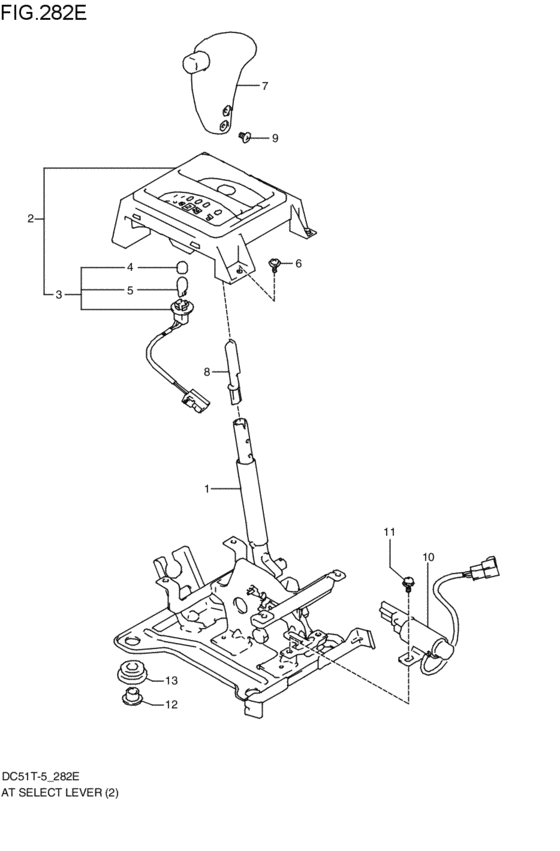

select lever (V:AT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- 2WD
- transmission
- AT
- grade
- PG
- number of the gears
- 3AT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-51F41-000
レバーアッシ,セレクト
V:AT; 1997-04-01~1998-11-01 |
28110-51F41-000 |
— | ||
|
2
|
2
28150-51F20-000
インジケータアッシ,セレクト
V:AT; 1997-04-01~1998-11-01 |
28150-51F20-000 |
— | ||
|
3
|
3
28180-51F00-000
LAMP ASSY
V:AT; 1997-04-01~1998-11-01 |
28180-51F00-000 |
— | ||
|
4
|
4
28182-51F00-000
Filter
V:AT; 1997-04-01~1998-11-01 |
28182-51F00-000 |
— | ||
| replacement | |||||
|
4
|
4
28180-51F00-000
LAMP ASSY
V:AT; 1997-04-01~1998-11-01 |
28180-51F00-000 |
— | ||
|
5
|
5
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; V:AT; 1997-04-01~1998-11-01 |
09471-12077-000 |
from US $1.52 |
||
|
6
|
6
02142-05103-000
Screw 5x10
V:AT; 1997-04-01~1998-11-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0510B-000 SCREWBolt V:AT; 1997-04-01~1998-11-01 |
02142-0510B-000 |
from US $0.76 |
||
|
7
|
7
28160-62B10-5PK
ノブアッシ,セレクタレバー(ブラック)
ブラック; V:AT; 1997-04-01~1998-11-01 |
28160-62B10-5PK |
— | ||
| replacements | |||||
|
7
|
7
28160-62B10-000
KNOB ASSY,SEL LEVER
ブラック; V:AT; 1997-04-01~1998-11-01 |
28160-62B10-000 |
— | ||
|
7
|
7
28160-62B11-000 KNOB ASSY,SEL LEVERブラック; V:AT; 1997-04-01~1998-11-01 |
28160-62B11-000 |
US $30.91 |
||
|
8
|
8
28164-62B10-000 GUIDE,RELEASE RODV:AT; 1997-04-01~1998-11-01 |
28164-62B10-000 |
US $5.81 |
||
|
9
|
9
09125-05117-000 SCREW(5X6)Screw (5x6) V:AT; 1997-04-01~1998-11-01 |
09125-05117-000 |
from US $0.96 |
||
|
10
|
10
28610-51F00-000
ソレノイド,シフトロック
V:AT; 1997-04-01~1998-11-01 |
28610-51F00-000 |
— | ||
|
11
|
11
09138-05005-000 SCREW(5X10)V:AT; 1997-04-01~1998-11-01 |
09138-05005-000 |
US $12.90 |
||
|
12
|
12
28367-51F00-000
SPACER,CUSHION
V:AT; 1997-04-01~1998-11-01 |
28367-51F00-000 |
— | ||
|
13
|
13
28368-51F00-000
CUSHION,GUIDE
V:AT; 1997-04-01~1998-11-01 |
28368-51F00-000 |
— | ||
