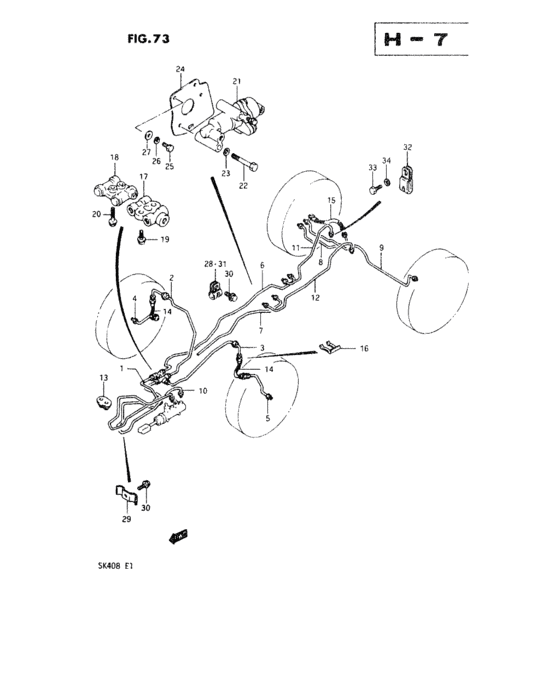

Brake piping (,Finland,Norway,Switzerland,Belgium,5,Israel) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-85200-000
Pipe, brake no.1
LHD |
51410-85200-000 |
— | ||
|
1
|
1
51410-85001-000
Pipe, brake no.1
RHD |
51410-85001-000 |
— | ||
|
1
|
1
51410-85250-000
Pipe, brake no.1
Switzerland |
51410-85250-000 |
— | ||
|
2
|
2
51420-85400-000 PIPE,BRAKE NO.2 |
51420-85400-000 |
US $13.92 |
||
|
2
|
2
51420-85700-000
Pipe, brake no.2
Switzerland |
51420-85700-000 |
— | ||
|
3
|
3
51430-85400-000 PIPE,BRAKE NO.3 |
51430-85400-000 |
US $15.20 |
||
|
3
|
3
51430-85700-000
Pipe, brake no.3
Switzerland |
51430-85700-000 |
— | ||
|
4
|
4
51440-85200-000
Pipe, brake no.4
|
51440-85200-000 |
— | ||
|
5
|
5
51450-85200-000
Pipe, brake no.5
|
51450-85200-000 |
— | ||
|
6
|
6
51460-85210-000
Pipe, brake no.6
|
51460-85210-000 |
— | ||
|
6
|
6
51460-85750-000
Pipe, brake no.6
Switzerland |
51460-85750-000 |
— | ||
|
7
|
7
51460-85710-000
Pipe, brake no.6
|
51460-85710-000 |
— | ||
|
7
|
7
51460-85770-000
Pipe, brake no.6
FLAT FLOOR:Switzerland |
51460-85770-000 |
— | ||
|
7
|
7
51460-85760-000
Pipe, brake no.6
LOW FLOOR:Switzerland |
51460-85760-000 |
— | ||
|
8
|
8
51470-85200-000
PIPE,BRAKE NO.7
|
51470-85200-000 |
— | ||
|
9
|
9
51480-85200-000
PIPE,BRAKE NO.8
|
51480-85200-000 |
— | ||
|
10
|
10
51510-85200-000
Pipe, brake no.12
LHD |
51510-85200-000 |
— | ||
|
10
|
10
51510-85001-000
Pipe, brake no.12
RHD |
51510-85001-000 |
— | ||
|
10
|
10
51510-85250-000
Pipe, brake no.12
Switzerland |
51510-85250-000 |
— | ||
|
11
|
11
51350-85210-000
Rod assy, booster piston
,Finland,Norway,Belgium,5,Israel |
51350-85210-000 |
— | ||
|
12
|
12
51350-85721-000
Pipe, brake no.15
FLAT FLOOR:,,Norway,Belgium,Israel |
51350-85721-000 |
— | ||
|
12
|
12
51350-85711-000
Pipe, brake no.15
TYPE 1 LOW FLOOR:,,Finland,Belgium,5,Israel |
51350-85711-000 |
— | ||
|
12
|
12
51350-85760-000
Pipe, brake no.15
TYPE 2 LOW FLOOR:Belgium,Holland |
51350-85760-000 |
— | ||
|
13
|
13
51751-85000-000 GROMMET,BRAKE PIPE |
51751-85000-000 |
US $2.24 |
||
|
14
|
14
51540-85050-000
ホース,リヤブレーキフレキシブル
|
51540-85050-000 |
— | ||
| replacement | |||||
|
14
|
14
51560-70F00-000 HOSE,RR BRAKE FLEXIBLE |
51560-70F00-000 |
US $29.99 |
||
|
15
|
15
51540-85050-000
ホース,リヤブレーキフレキシブル
|
51540-85050-000 |
— | ||
| replacement | |||||
|
15
|
15
51560-70F00-000 HOSE,RR BRAKE FLEXIBLE |
51560-70F00-000 |
US $29.99 |
||
|
16
|
16
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
16
|
16
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
17
|
17
51640-85030-000 JOINT,5WAY BRAKE,,Finland,Norway,Belgium,5,Israel |
51640-85030-000 |
US $45.60 |
||
|
18
|
18
51910-85220-000
Valve assy, proportioning
Switzerland |
51910-85220-000 |
— | ||
|
19
|
19
01517-06206-000
Bolt 6x20
|
01517-06206-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
19
|
19
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
20
|
20
01517-06353-000
ボルト
Switzerland |
01517-06353-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0635B-000 BoltSwitzerland |
01550-0635B-000 |
from US $0.91 |
||
|
20
|
20
01550-0635A-000 BoltSwitzerland |
01550-0635A-000 |
from US $0.96 |
||
|
21
|
21
51950-85020-000
Valve assy, d.s.p
,,Finland,Norway,Belgium,5,Israel |
51950-85020-000 |
— | ||
|
22
|
22
01107-08703-000 Bolt,,Finland,Norway,Belgium,5,Israel |
01107-08703-000 |
US $1.79 |
||
| replacement | |||||
|
22
|
22
01500-0870B-000 BOLT,,Finland,Norway,Belgium,5,Israel |
01500-0870B-000 |
from US $3.35 |
||
|
23
|
23
08321-31083-000
New Genuine Part
,,Finland,Norway,Belgium,5,Israel |
08321-31083-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0108A-000 WASHER,LOCK,,Finland,Norway,Belgium,5,Israel |
08321-0108A-000 |
from US $0.80 |
||
|
23
|
23
08321-0108B-000 WASHER,LOCK,,Finland,Norway,Belgium,5,Israel |
08321-0108B-000 |
from US $0.76 |
||
|
24
|
24
51951-85000-000
Plate, d.s.p valve
,,Norway,Belgium,5,Israel |
51951-85000-000 |
— | ||
|
24
|
24
51951-85700-000
Plate, d.s.p valve
,,Finland,Norway,Belgium,5,Israel |
51951-85700-000 |
— | ||
|
25
|
25
01107-06123-000
Bolt 6x1x16
,,Finland,Norway,Belgium,5,Israel |
01107-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01500-0612A-000 BOLT,,Finland,Norway,Belgium,5,Israel |
01500-0612A-000 |
from US $0.76 |
||
|
25
|
25
01500-06123-000
Bolt, front
,,Finland,Norway,Belgium,5,Israel |
01500-06123-000 |
— | ||
|
26
|
26
08321-21063-000 Lock washer,,Finland,Norway,Belgium,5,Israel |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
26
|
26
08321-0106A-000 WASHER,LOCK,,Finland,Norway,Belgium,5,Israel |
08321-0106A-000 |
from US $0.76 |
||
|
27
|
27
08322-21063-000
Washer
,,Finland,Norway,Belgium,5,Israel |
08322-21063-000 |
— | ||
| replacement | |||||
|
27
|
27
08322-0106B-000 WASHER,,Finland,Norway,Belgium,5,Israel |
08322-0106B-000 |
from US $0.76 |
||
|
28
|
28
09403-06401-000 CLAMP |
09403-06401-000 |
from US $2.08 |
||
|
29
|
29
09403-07312-000 CLAMP |
09403-07312-000 |
from US $0.92 |
||
|
30
|
30
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
31
|
31
09403-06407-000 CLAMPSwitzerland |
09403-06407-000 |
US $16.20 |
||
|
32
|
32
09403-06404-000 CLAMP |
09403-06404-000 |
US $2.72 |
||
|
33
|
33
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
33
|
33
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
34
|
34
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
34
|
34
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
