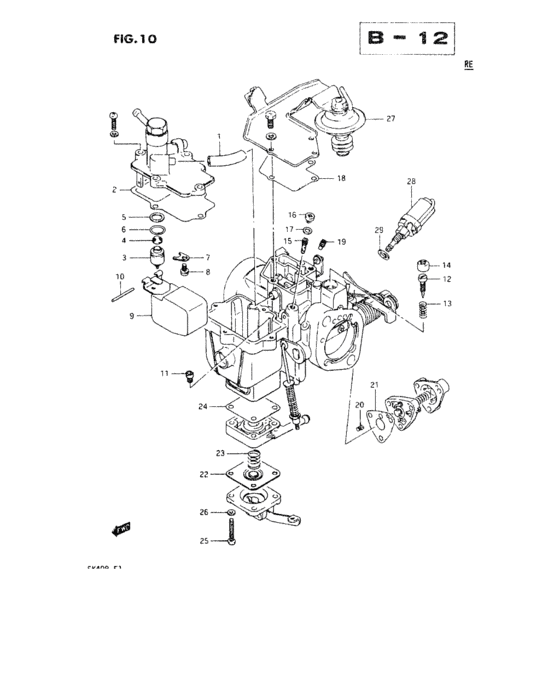

Carburetor (CARBURETOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-79270-000
Carburetor assy
|
13200-79270-000 |
— | ||
|
|
13200-79280-000
Carburetor assy
,,Finland,Norway,Switzerland,Belgium,5,Sinagpore,Hong Kong,Israel |
13200-79280-000 |
— | ||
|
|
13200-79710-000
Carburetor assy
Saudi Arabia |
13200-79710-000 |
— | ||
|
|
13200-79720-000
Carburetor assy
China |
13200-79720-000 |
— | ||
|
1
|
1
13683-73000-000
Hose
|
13683-73000-000 |
— | ||
| replacements | |||||
|
1
|
1
09352-60103-600
HOSE(6X10X600)
|
09352-60103-600 |
— | ||
|
1
|
1
09352-60103-300
Cover, oil hose
|
09352-60103-300 |
— | ||
|
1
|
1
09352-60104-600 Hose(6X10X600) |
09352-60104-600 |
from US $12.12 |
||
|
2
|
2
13251-73001-000
Gasket
|
13251-73001-000 |
— | ||
|
3
|
3
13332-79270-000
Valve assy, needle
|
13332-79270-000 |
— | ||
|
4
|
4
13376-84110-000
13376-19f00
<-13376-65010 |
13376-84110-000 |
— | ||
| replacement | |||||
|
4
|
4
13376-19F00-000 FILTER<-13376-65010 |
13376-19F00-000 |
from US $5.47 |
||
|
5
|
5
13378-73000-000
ワッシャ
|
13378-73000-000 |
— | ||
|
6
|
6
13294-78310-000
Oリング
|
13294-78310-000 |
— | ||
| replacement | |||||
|
6
|
6
13374-32G00-000 O RING |
13374-32G00-000 |
from US $4.49 |
||
|
7
|
7
13373-39110-000 PLATE |
13373-39110-000 |
from US $3.97 |
||
|
8
|
8
13371-79270-000
Screw
|
13371-79270-000 |
— | ||
| replacements | |||||
|
8
|
8
02112-3406A-000 SCREW |
02112-3406A-000 |
from US $0.76 |
||
|
8
|
8
02112-34063-000
Screw
|
02112-34063-000 |
— | ||
|
9
|
9
13250-73000-000
Float
|
13250-73000-000 |
— | ||
| replacement | |||||
|
9
|
9
13250-730T0-000
Float set
|
13250-730T0-000 |
— | ||
|
10
|
10
13254-73000-000
Pin, float
|
13254-73000-000 |
— | ||
|
11
|
11
09491-20019-000 JET,MAIN(100)Jet, main (#100) |
09491-20019-000 |
from US $9.92 |
||
|
11
|
11
09491-20016-000
Jet,main(#101.3)
,,Finland,Norway,Switzerland,Belgium,5,Sinagpore,Hong Kong,Israel |
09491-20016-000 |
— | ||
|
12
|
12
13269-61010-000
Screw, pilot air
|
13269-61010-000 |
— | ||
| replacement | |||||
|
12
|
12
13270-610T0-000
New Genuine Part
|
13270-610T0-000 |
— | ||
|
13
|
13
13271-96110-000 SPRINGSpring, air screw |
13271-96110-000 |
from US $2.65 |
||
|
14
|
14
13699-77000-000
キャップ,アイドルリミッタ
|
13699-77000-000 |
— | ||
|
15
|
15
09492-52005-000
Jet,pilot
|
09492-52005-000 |
— | ||
|
15
|
15
09492-55011-000
Jet, pilot
,,Finland,Norway,Switzerland,Belgium,5,Sinagpore,Hong Kong,Israel |
09492-55011-000 |
— | ||
|
16
|
16
13605-73000-000 SCREW |
13605-73000-000 |
from US $7.69 |
||
|
17
|
17
13291-41640-000
Washer
|
13291-41640-000 |
— | ||
| replacement | |||||
|
17
|
17
13606-18E00-000 WASHERLock washer |
13606-18E00-000 |
from US $2.39 |
||
|
18
|
18
13212-73000-000
Gasket
|
13212-73000-000 |
— | ||
|
19
|
19
09493-32004-000
Jet, air
|
09493-32004-000 |
— | ||
| replacement | |||||
|
19
|
19
09493-32005-000
New Genuine Part
|
09493-32005-000 |
— | ||
|
20
|
20
09492-60012-000
JET,AIR(60)
|
09492-60012-000 |
— | ||
|
20
|
20
09492-50017-000
Jet, enrichment
,,Finland,Norway,Switzerland,Belgium,5,Sinagpore,Hong Kong,Israel |
09492-50017-000 |
— | ||
|
21
|
21
13467-37010-000
Gasket,enrichment
|
13467-37010-000 |
— | ||
|
22
|
22
13491-37010-000
DIAPHRAGM
|
13491-37010-000 |
— | ||
|
23
|
23
13494-37010-000 SPRING,ACCEL PUMP |
13494-37010-000 |
US $1.47 |
||
|
24
|
24
13495-77000-000
Gasket
|
13495-77000-000 |
— | ||
|
25
|
25
02112-04256-000
スクリュ
|
02112-04256-000 |
— | ||
| replacement | |||||
|
25
|
25
02112-0425B-000 SCREW |
02112-0425B-000 |
from US $0.80 |
||
|
26
|
26
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
27
|
27
13500-79280-000
Depression assy
,,Finland,Norway,Switzerland,Belgium,5,Sinagpore,Hong Kong,Israel |
13500-79280-000 |
— | ||
|
28
|
28
13260-79721-000
Valve, solenoid
China |
13260-79721-000 |
— | ||
| replacement | |||||
|
28
|
28
13260-797T0-000 SOLENOID SETChina |
13260-797T0-000 |
US $97.28 |
||
|
29
|
29
13249-31210-000
WASHER
China |
13249-31210-000 |
— | ||
| replacement | |||||
|
29
|
29
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) China |
09168-08016-000 |
from US $1.22 |
||
|
30
|
30
13200-79810-000
Gasket set, carburetor
INC.REF.NO.2,6,18,21,22 AND 24,NOT,SHOWN |
13200-79810-000 |
— | ||
| replacement | |||||
|
30
|
30
13380-792T1-000
GASKET SET
INC.REF.NO.2,6,18,21,22 AND 24,NOT,SHOWN |
13380-792T1-000 |
— | ||
|
30
|
30
13200-79820-000
Gasket set
INC.REF.NO.2,6,18,21,22,24 AND 29,China,NOT SHOWN |
13200-79820-000 |
— | ||
| replacement | |||||
|
30
|
30
13380-792T1-000
GASKET SET
INC.REF.NO.2,6,18,21,22,24 AND 29,China,NOT SHOWN |
13380-792T1-000 |
— | ||
