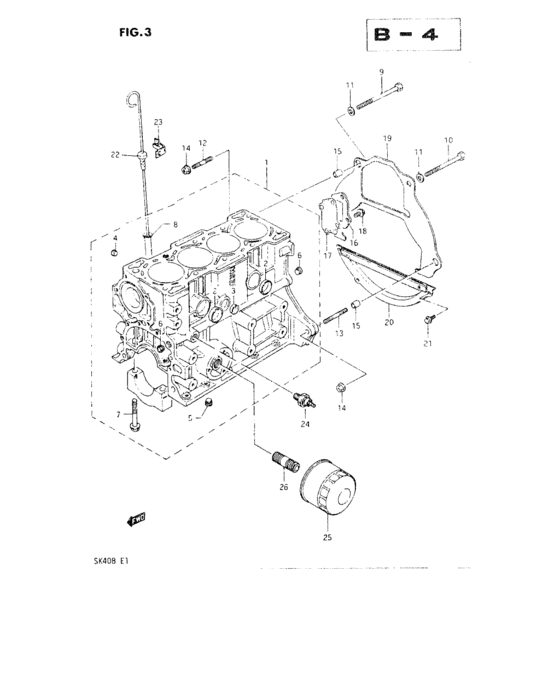

Cylinder (CYLINDER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-73005-000
CYLINDER ASSY
|
11200-73005-000 |
— | ||
|
1
|
1
11200-85600-000
Cylinder assy
DA11T-100171~ DA11V-100176~,JSAEDA11T00100005~,JSAEDA11V00100016~ |
11200-85600-000 |
— | ||
|
2
|
2
09241-30002-000
プラグ,OD:30
|
09241-30002-000 |
— | ||
| replacement | |||||
|
2
|
2
09241-30010-000 PLUG |
09241-30010-000 |
US $2.40 |
||
|
3
|
3
09241-20002-000
プラグ
|
09241-20002-000 |
— | ||
| replacement | |||||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
4
|
4
09246-05003-000
プラグ,1/8PT,H:5.5
|
09246-05003-000 |
— | ||
| replacement | |||||
|
4
|
4
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.42 |
||
|
5
|
5
09246-06001-000 PLUG(1/4PT,H:7.5) |
09246-06001-000 |
US $12.50 |
||
|
6
|
6
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
6
|
6
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
7
|
7
01537-10603-000
New Genuine Part
|
01537-10603-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
8
|
8
11219-85200-000
GUIDE,OIL LEVEL GAUGE
DA11T-100171~ DA11V-100176~,JSAEDA11T00100005~,JSAEDA11V00100016~ |
11219-85200-000 |
— | ||
|
9
|
9
09100-10238-000
ボルト,10X120
|
09100-10238-000 |
— | ||
|
10
|
10
09100-10239-000
Bolt 10x115
|
09100-10239-000 |
— | ||
|
11
|
11
08322-11103-000 ワッシャ |
08322-11103-000 |
US $1.07 |
||
| replacements | |||||
|
11
|
11
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
11
|
11
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
12
|
12
01421-10403-000
New Genuine Part
|
01421-10403-000 |
— | ||
| replacement | |||||
|
12
|
12
01421-1040A-000 BOLT,STUD |
01421-1040A-000 |
from US $1.52 |
||
|
13
|
13
01421-10503-000
Stud bolt (l:50)
|
01421-10503-000 |
— | ||
| replacement | |||||
|
13
|
13
01421-1050A-000 BOLT,STUD |
01421-1050A-000 |
from US $1.67 |
||
|
14
|
14
08316-16103-000 Nut |
08316-16103-000 |
US $1.30 |
||
| replacement | |||||
|
14
|
14
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
15
|
15
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
15
|
15
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
16
|
16
11221-73000-000 PLATE,CYLINDER BLOCK |
11221-73000-000 |
US $2.72 |
||
|
17
|
17
11229-73000-000 GASKET,CYL BLOCK PLATE |
11229-73000-000 |
US $1.76 |
||
|
18
|
18
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
18
|
18
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
19
|
19
11311-79200-000 PLATE,CLUTCH HSG UPPER |
11311-79200-000 |
US $65.60 |
||
|
20
|
20
11320-77201-000 PLATE,CLUTCH HSG LOWER<-11320-77200 |
11320-77201-000 |
US $7.04 |
||
|
21
|
21
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
21
|
21
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
22
|
22
16910-79110-000 GAUGE,OIL LEVEL |
16910-79110-000 |
from US $9.43 |
||
|
22
|
22
16910-85550-000 GAUGE,OIL LEVELDA11T-100171~ DA11V-100176~,JSAEDA11T00100005~,JSAEDA11V00100016~ |
16910-85550-000 |
US $23.20 |
||
|
23
|
23
16915-73000-000
SUPPORTER,OIL LEVEL GAUGE
~DA11T-100170 ~DA11V-100175,~JSAEDA11T00100004,~JSAEDA11V00100015 |
16915-73000-000 |
— | ||
|
24
|
24
37820-82001-000
Switch assy, oil pressure
|
37820-82001-000 |
— | ||
| replacement | |||||
|
24
|
24
37820-820P0-000 SWITCH ASSY,OIL PRESSURE |
37820-820P0-000 |
from US $12.02 |
||
|
25
|
25
16510-73002-000
フィルタ,オイル(TOKYO ROKI)
<-16510-73001 |
16510-73002-000 |
— | ||
| replacements | |||||
|
25
|
25
16510-60B00-CDN
Oil filter
<-16510-73001 |
16510-60B00-CDN |
— | ||
|
25
|
25
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil <-16510-73001 |
16510-82703-000 |
from US $13.41 |
||
|
26
|
26
11241-73003-000 STAND,OIL FILTER |
11241-73003-000 |
US $6.40 |
||
