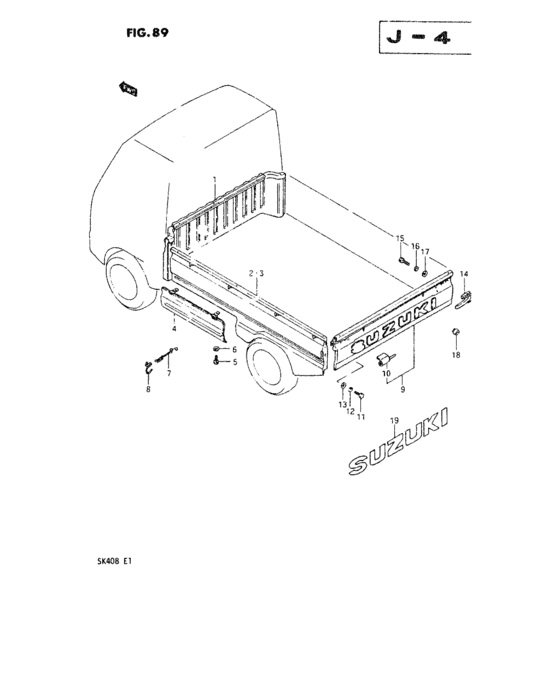

Deck gate (T) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66600-85080-000
Panel assy, deck front
<-66600-85000 |
66600-85080-000 |
— | ||
|
2
|
2
67100-85080-000
パネルアッシ,デッキサイド,ライト
<-67100-85000 |
67100-85080-000 |
— | ||
|
3
|
3
67400-85080-000
パネルアッシ,デッキサイド,レフト
<-67400-85000 |
67400-85080-000 |
— | ||
|
4
|
4
73830-79000-000
Panel, service lid
TYPE 1 |
73830-79000-000 |
— | ||
| replacement | |||||
|
4
|
4
67430-85080-000
PANEL,SIDE SERVICE LID
TYPE 1 |
67430-85080-000 |
— | ||
|
4
|
4
67430-85080-000
PANEL,SIDE SERVICE LID
TYPE 2 |
67430-85080-000 |
— | ||
|
5
|
5
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
6
|
6
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
7
|
7
73961-79000-000 SPRING,SIDE SERVICE |
73961-79000-000 |
US $6.33 |
||
|
8
|
8
73962-79000-000 HOOK,SIDE SERVICE LID |
73962-79000-000 |
US $3.28 |
||
|
9
|
9
67700-85200-000
Panel assy, rear gate
|
67700-85200-000 |
— | ||
| replacement | |||||
|
9
|
9
67700-85080-000
GATE ASSY,RR
|
67700-85080-000 |
— | ||
|
10
|
10
67170-85090-000 HINGE,SIDE GATE |
67170-85090-000 |
US $28.13 |
||
|
11
|
11
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
12
|
12
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
13
|
13
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
14
|
14
73910-52002-000 HANDLE,GATE LOCK |
73910-52002-000 |
US $56.80 |
||
|
15
|
15
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
16
|
16
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
17
|
17
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
18
|
18
73941-79000-000
ストッパ,ゲートオープン
|
73941-79000-000 |
— | ||
| replacement | |||||
|
18
|
18
73941-79010-000 STOPPER,GATE OPEN |
73941-79010-000 |
from US $5.25 |
||
|
19
|
19
77841-85200-019
EMBLEM,SUZUKI MARK SUPPLY
|
77841-85200-019 |
— | ||
