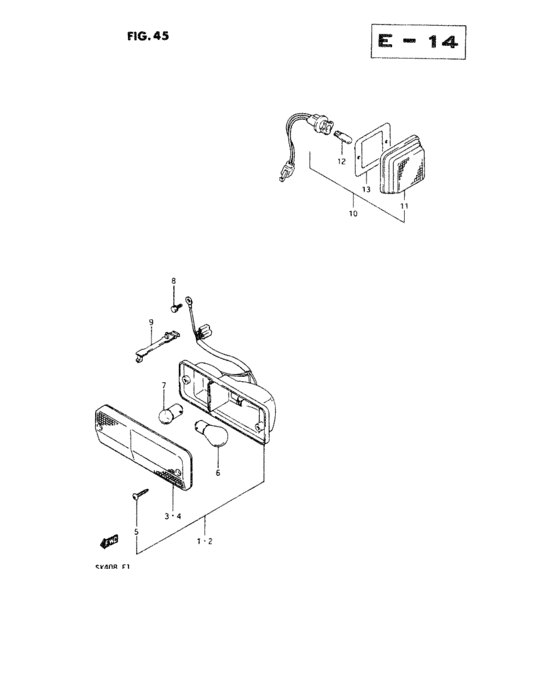

Front lamp (FRONT LAMP) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-85010-000
Lamp assy, combination rh
LENS:AMBER |
35601-85010-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-78000-000 LAMP ASSY,COMB,RLENS:AMBER |
35601-78000-000 |
US $76.91 |
||
|
1
|
1
35601-85020-000
Lamp assy, combination rh
LENS:CLEAR |
35601-85020-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-78011-000 LAMP ASSY,FR COMB,RLENS:CLEAR |
35601-78011-000 |
US $59.62 |
||
|
2
|
2
35602-85010-000
Lamp assy, combination lh
LENS:AMBER |
35602-85010-000 |
— | ||
| replacement | |||||
|
2
|
2
35602-78000-000 LAMP ASSY,COMB,LLENS:AMBER |
35602-78000-000 |
US $76.91 |
||
|
2
|
2
35602-85020-000
Lamp assy, combination lh
LENS:CLEAR |
35602-85020-000 |
— | ||
| replacement | |||||
|
2
|
2
35602-78011-000
Lamp assy,fr combi lh
LENS:CLEAR |
35602-78011-000 |
— | ||
|
3
|
3
35612-78000-000 LENS,R |
35612-78000-000 |
US $11.86 |
||
|
3
|
3
35612-79012-000
LENS,R
|
35612-79012-000 |
— | ||
|
4
|
4
35632-78000-000 LENS,L |
35632-78000-000 |
from US $10.46 |
||
|
4
|
4
35632-79012-000
LENS,L
|
35632-79012-000 |
— | ||
|
5
|
5
03112-04309-000 SCREW |
03112-04309-000 |
from US $0.76 |
||
|
6
|
6
09471-12056-000
Bulb (12v, 21w)
IN USE LENS:AMBER |
09471-12056-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12045-000 BULB(12V21W)IN USE LENS:AMBER |
09471-12045-000 |
from US $2.54 |
||
|
6
|
6
09471-12045-000 BULB(12V21W)IN USE LENS:CLEAR |
09471-12045-000 |
from US $2.54 |
||
|
7
|
7
09471-12058-000
Bulb 12v5w
IN USE LENS:AMBER |
09471-12058-000 |
— | ||
| replacement | |||||
|
7
|
7
09471-12140-000 BULB(12V5W)IN USE LENS:AMBER |
09471-12140-000 |
from US $2.03 |
||
|
7
|
7
09471-12059-000 Ampoule (12v,10w)IN USE LENS:CLEAR |
09471-12059-000 |
US $4.15 |
||
| replacement | |||||
|
7
|
7
09471-12140-000 BULB(12V5W)IN USE LENS:CLEAR |
09471-12140-000 |
from US $2.03 |
||
|
8
|
8
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
8
|
8
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
9
|
9
09407-07401-000
CLAMP(L:55)
|
09407-07401-000 |
— | ||
| replacement | |||||
|
9
|
9
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
10
|
10
36410-85000-000 LAMP ASSY,SIDE TURN SIG |
36410-85000-000 |
US $79.20 |
||
|
10
|
10
36410-85010-000
LAMP ASSY,SIDE TURN SIG
,,Finland,Norway,Switzerland,Belgium,5,Israel |
36410-85010-000 |
— | ||
|
11
|
11
36420-85000-000
Unit,side turn signal lamp
|
36420-85000-000 |
— | ||
|
11
|
11
36420-85010-000
Unit, turn signal lamp
,,Finland,Norway,Switzerland,Belgium,5,Israel |
36420-85010-000 |
— | ||
|
12
|
12
09471-12076-000
Bulb (12v,5w)
|
09471-12076-000 |
— | ||
| replacement | |||||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
12
|
12
09471-12081-000
Bulb (12v,5w)
,,Finland,Norway,Switzerland,Belgium,5,Israel |
09471-12081-000 |
— | ||
| replacement | |||||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) ,,Finland,Norway,Switzerland,Belgium,5,Israel |
09471-12216-000 |
from US $2.84 |
||
|
13
|
13
36413-85000-000
ガスケット,ベース
|
36413-85000-000 |
— | ||
