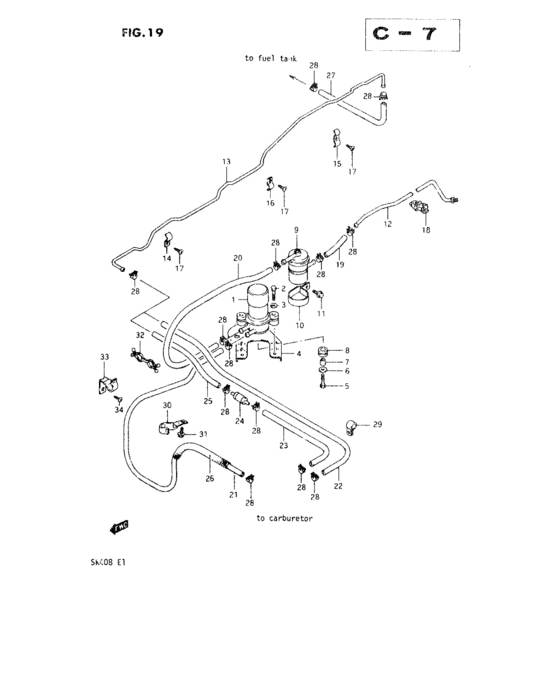

Fuel Pump (T/K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-85501-000 PUMP ASSY,FUEL |
15100-85501-000 |
US $347.98 |
||
|
2
|
2
01107-06303-000 ボルト |
01107-06303-000 |
US $1.23 |
||
| replacement | |||||
|
2
|
2
01500-0630A-000 Bolt |
01500-0630A-000 |
from US $0.80 |
||
|
3
|
3
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
4
|
4
15310-85510-000 BRACKET,FUEL PUMP |
15310-85510-000 |
US $10.40 |
||
|
5
|
5
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
6
|
6
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
7
|
7
09180-06032-000
Spacer (6.1x8x5.2)
|
09180-06032-000 |
— | ||
| replacement | |||||
|
7
|
7
09180-06246-000 SPACER(6.1X8X5.2) |
09180-06246-000 |
from US $1.60 |
||
|
8
|
8
09320-08038-000
グロメット
|
09320-08038-000 |
— | ||
| replacements | |||||
|
8
|
8
09320-08013-000
CUSHION
|
09320-08013-000 |
— | ||
|
8
|
8
09320-08509-000 Cushion(8X22X7) |
09320-08509-000 |
from US $1.98 |
||
|
9
|
9
15410-85500-000
フィルタ,フューエル
|
15410-85500-000 |
— | ||
| replacement | |||||
|
9
|
9
15410-85200-000 FILTER,FUEL |
15410-85200-000 |
US $14.72 |
||
|
10
|
10
09403-51407-000 CLAMP |
09403-51407-000 |
US $2.56 |
||
|
11
|
11
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
15810-85200-000 PIPE,FUEL |
15810-85200-000 |
US $28 |
||
|
12
|
12
15810-85210-000
Pipe, fuel
|
15810-85210-000 |
— | ||
|
13
|
13
15861-85610-000
Pipe, fuel return
|
15861-85610-000 |
— | ||
|
13
|
13
15861-85620-000
Pipe, fuel return
|
15861-85620-000 |
— | ||
|
14
|
14
09403-08309-000 CLAMP |
09403-08309-000 |
US $2.08 |
||
|
15
|
15
09403-08310-000 CLAMP |
09403-08310-000 |
US $1.12 |
||
|
16
|
16
09403-05302-000 CLAMPClamp |
09403-05302-000 |
US $1.28 |
||
|
17
|
17
03111-06123-000
スクリュ
|
03111-06123-000 |
— | ||
| replacement | |||||
|
17
|
17
03111-0612A-000 SCREW |
03111-0612A-000 |
US $0.80 |
||
|
18
|
18
09403-06312-000 CLAMP |
09403-06312-000 |
US $1.92 |
||
|
19
|
19
09343-07050-000
Hose, fuel (pump@rcarb.)
L:810->100 |
09343-07050-000 |
— | ||
| replacement | |||||
|
19
|
19
09355-70125-00B HOSE(7X12X2000)Hose, fuel (conn to filter) (7x12x2000) L:810->100 |
09355-70125-00B |
from US $43.33 |
||
|
20
|
20
09354-54116-42A
Hose, pipe to carburetor
L:1420->285 |
09354-54116-42A |
— | ||
| replacement | |||||
|
20
|
20
09355-54115-00B HOSE(5.4X11.4X2000)L:1420->285 |
09355-54115-00B |
US $37.17 |
||
|
21
|
21
09356-58123-820
Hose, pipe to carburetor
L:820->680 |
09356-58123-820 |
— | ||
| replacement | |||||
|
21
|
21
09356-58125-00A HOSE(5.8X12.2X1000)Hose, fuel (5.8x12.2x1000) L:820->680 |
09356-58125-00A |
US $43.30 |
||
|
22
|
22
09356-58123-820
Hose, pipe to carburetor
L:820->450 |
09356-58123-820 |
— | ||
| replacement | |||||
|
22
|
22
09356-58125-00A HOSE(5.8X12.2X1000)Hose, fuel (5.8x12.2x1000) L:820->450 |
09356-58125-00A |
US $43.30 |
||
|
23
|
23
09356-58123-820
Hose, pipe to carburetor
Saudi Arabia,L:820->330 |
09356-58123-820 |
— | ||
| replacement | |||||
|
23
|
23
09356-58125-00A HOSE(5.8X12.2X1000)Hose, fuel (5.8x12.2x1000) Saudi Arabia,L:820->330 |
09356-58125-00A |
US $43.30 |
||
|
24
|
24
15850-79200-000 CHECK VALVE,FUEL RETURNSaudi Arabia |
15850-79200-000 |
US $13.92 |
||
|
25
|
25
09356-58123-820
Hose, pipe to carburetor
Saudi Arabia,L:820->110 |
09356-58123-820 |
— | ||
| replacement | |||||
|
25
|
25
09356-58125-00A HOSE(5.8X12.2X1000)Hose, fuel (5.8x12.2x1000) Saudi Arabia,L:820->110 |
09356-58125-00A |
US $43.30 |
||
|
26
|
26
95767-78140-000
プロテクタ
|
95767-78140-000 |
— | ||
| replacement | |||||
|
26
|
26
95841-60D00-000 PROTECTOR,VACUUM HOSE |
95841-60D00-000 |
US $6.92 |
||
|
27
|
27
09356-58123-820
Hose, pipe to carburetor
L:820->180 |
09356-58123-820 |
— | ||
| replacement | |||||
|
27
|
27
09356-58125-00A HOSE(5.8X12.2X1000)Hose, fuel (5.8x12.2x1000) L:820->180 |
09356-58125-00A |
US $43.30 |
||
|
28
|
28
09401-11409-000
クリップ
|
09401-11409-000 |
— | ||
| replacements | |||||
|
28
|
28
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.96 |
||
|
28
|
28
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
29
|
29
15815-79110-000
クランプ,トランスミッションケース
|
15815-79110-000 |
— | ||
| replacements | |||||
|
29
|
29
09404-10417-000 CLAMP(L:97) |
09404-10417-000 |
from US $3.71 |
||
|
29
|
29
09404-10404-000
Clamp, trim relay
|
09404-10404-000 |
— | ||
|
30
|
30
09403-10315-000 CLAMP |
09403-10315-000 |
US $21.30 |
||
|
31
|
31
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
31
|
31
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
32
|
32
09408-00022-000 CLIP |
09408-00022-000 |
US $9.90 |
||
|
33
|
33
15881-85500-000
クランプ,フューエルホース
|
15881-85500-000 |
— | ||
| replacements | |||||
|
33
|
33
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
33
|
33
09404-08405-000
Clamp, drain tube
|
09404-08405-000 |
— | ||
|
34
|
34
03111-06123-000
スクリュ
|
03111-06123-000 |
— | ||
| replacement | |||||
|
34
|
34
03111-0612A-000 SCREW |
03111-0612A-000 |
US $0.80 |
||
