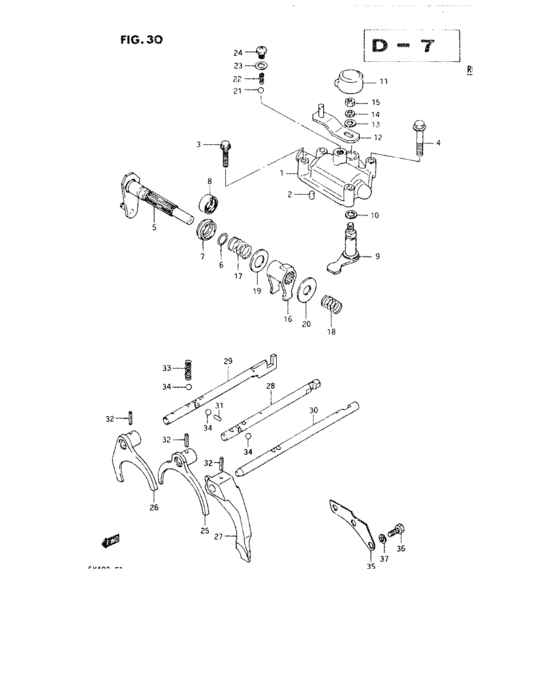

Gear shift fork (GEAR SHIFT FORK) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25121-85000-000
ケース,ギヤシフトレバー
->25121-85001 USED WITH,25520-85002 AND 09284-17004 |
25121-85000-000 |
— | ||
| replacements | |||||
|
1
|
1
09285-17004-000
SEAL,OIL(17X25X4)
->25121-85001 USED WITH,25520-85002 AND 09284-17004 |
09285-17004-000 |
— | ||
|
1
|
1
25121-85002-000
CASE,GEAR SHIFT LEVER
->25121-85001 USED WITH,25520-85002 AND 09284-17004 |
25121-85002-000 |
— | ||
|
1
|
1
25520-85002-000
SHAFT,GEAR SHIFT LEVER
->25121-85001 USED WITH,25520-85002 AND 09284-17004 |
25520-85002-000 |
— | ||
|
1
|
1
25121-85001-000
Case, gear shift lever
DA11T-100768~ DA11V-100864~,JSAEDA11T00100213~,JSAEDA11V00101801~ |
25121-85001-000 |
— | ||
| replacement | |||||
|
1
|
1
25121-85002-000
CASE,GEAR SHIFT LEVER
DA11T-100768~ DA11V-100864~,JSAEDA11T00100213~,JSAEDA11V00101801~ |
25121-85002-000 |
— | ||
|
2
|
2
04221-06129-000 PIN |
04221-06129-000 |
from US $0.96 |
||
|
3
|
3
01517-06353-000
ボルト
|
01517-06353-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
3
|
3
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
4
|
4
01517-08403-000
ボルト
|
01517-08403-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
5
|
5
25520-85001-000
シャフト,ギヤシフトレバー
|
25520-85001-000 |
— | ||
|
5
|
5
25520-85002-000
SHAFT,GEAR SHIFT LEVER
DA11T-100768~ DA11V-100864~,JSAEDA11T00100213~,JSAEDA11V00101801~ |
25520-85002-000 |
— | ||
|
6
|
6
09280-13008-000
O ring
~DA11T-100767 ~DA11V-100863,~JSAEDA11T00100212,~JSAEDA11V00101800 |
09280-13008-000 |
— | ||
| replacement | |||||
|
6
|
6
09280-12008-000 O RING(D:2.4,ID:12.3)O ring (d:2.4,id:12.3) ~DA11T-100767 ~DA11V-100863,~JSAEDA11T00100212,~JSAEDA11V00101800 |
09280-12008-000 |
from US $2.13 |
||
|
7
|
7
25525-79500-000 BOOT,SHIFT~DA11T-100767 ~DA11V-100863,~JSAEDA11T00100212,~JSAEDA11V00101800 |
25525-79500-000 |
US $1.73 |
||
|
8
|
8
09284-17004-000 SEAL,OIL(17X25X12)DA11T-100768~ DA11V-100864~,JSAEDA11T00100213~,JSAEDA11V00101801~ |
09284-17004-000 |
US $5.12 |
||
|
9
|
9
25530-79501-000 SHAFT,GEAR SELECT |
25530-79501-000 |
US $18.40 |
||
|
10
|
10
09286-09001-000 SEAL,OIL(9.2X14X2.8) |
09286-09001-000 |
from US $1.04 |
||
|
11
|
11
25536-84200-000 BOOT,LEVER |
25536-84200-000 |
US $2.08 |
||
|
12
|
12
25535-85001-000
ARM,GEAR SELECT
|
25535-85001-000 |
— | ||
|
13
|
13
08322-11083-000 WasherWasher |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
13
|
13
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
13
|
13
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
14
|
14
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
15
|
15
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
15
|
15
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
15
|
15
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
16
|
16
25541-85000-000
LEVER,GEAR SHF
|
25541-85000-000 |
— | ||
|
17
|
17
09440-20012-000
スプリング
|
09440-20012-000 |
— | ||
| replacement | |||||
|
17
|
17
25576-70D00-000 SPRING,LOW SPEED SELECT |
25576-70D00-000 |
US $2.24 |
||
|
18
|
18
09440-15011-000 SPRING |
09440-15011-000 |
US $8.50 |
||
|
19
|
19
09160-17035-000 WASHER(17X32X1.2) |
09160-17035-000 |
US $1.76 |
||
|
20
|
20
09160-12040-000
ワッシャ,12.5X32X1.2
|
09160-12040-000 |
— | ||
| replacement | |||||
|
20
|
20
09160-12093-000 WASHER(12.5X32X1.2) |
09160-12093-000 |
US $11.80 |
||
|
21
|
21
06112-10004-000 BALL |
06112-10004-000 |
from US $0.68 |
||
| replacement | |||||
|
21
|
21
06111-10003-000 BALL |
06111-10003-000 |
from US $0.80 |
||
|
22
|
22
09440-07054-000
スプリング
|
09440-07054-000 |
— | ||
| replacement | |||||
|
22
|
22
25547-70D00-000 SPRING,GEAR SHIFT REV CHECK |
25547-70D00-000 |
US $1.92 |
||
|
23
|
23
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl |
09168-10007-000 |
from US $1.60 |
||
|
24
|
24
09128-10002-000 BOLT(10X9) |
09128-10002-000 |
from US $1.28 |
||
|
25
|
25
25210-79500-000
FORK,LOW SPEED GEAR SHF
|
25210-79500-000 |
— | ||
|
26
|
26
25220-79500-000
FORK,HIGH SPEED GEAR SHF
|
25220-79500-000 |
— | ||
|
27
|
27
25251-85000-000
Fork,reverse gear shift
|
25251-85000-000 |
— | ||
|
28
|
28
25411-79502-000
Shaft, low speed fork
|
25411-79502-000 |
— | ||
|
29
|
29
25420-79502-000
シャフト,ハイスピードフォーク
|
25420-79502-000 |
— | ||
| replacement | |||||
|
29
|
29
25420-70D00-000
SHAFT,HIGH SPEED GEAR SHIFT
|
25420-70D00-000 |
— | ||
|
30
|
30
25451-85300-000 SHAFT,REVERSE GEAR SHIFT FORK<-25451-79502 |
25451-85300-000 |
US $29.81 |
||
|
31
|
31
09261-03002-000 PIN(3X9.8) |
09261-03002-000 |
US $0.96 |
||
|
32
|
32
09205-04003-000 PIN,SPRING(4.5X18) |
09205-04003-000 |
US $1.60 |
||
|
33
|
33
09440-07005-000 SPRING |
09440-07005-000 |
US $10.30 |
||
|
34
|
34
06112-10004-000 BALL |
06112-10004-000 |
from US $0.68 |
||
| replacement | |||||
|
34
|
34
06111-10003-000 BALL |
06111-10003-000 |
from US $0.80 |
||
|
35
|
35
25481-79400-000 PLATE,SHAFT STOP |
25481-79400-000 |
US $2.98 |
||
|
36
|
36
09100-08037-000 BOLT(8X18) |
09100-08037-000 |
US $10.30 |
||
|
37
|
37
08321-31087-000 Lock washer |
08321-31087-000 |
US $1.98 |
||
| replacement | |||||
|
37
|
37
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
