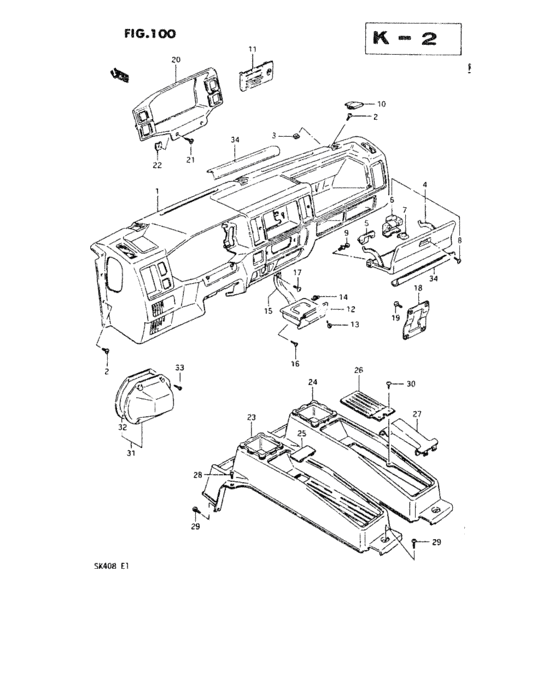

Instrument panel (INSTRUMENT PANEL) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-85201-4FU
Panel, instrument
GRAY:TYPE 1:LHD |
73111-85201-4FU |
— | ||
| replacement | |||||
|
1
|
1
73111-85201-5RT
PANEL,INSTRUMENT
GRAY:TYPE 1:LHD |
73111-85201-5RT |
— | ||
|
1
|
1
73111-85201-5CW
Panel, instrument
BROWN:TYPE 2:LHD |
73111-85201-5CW |
— | ||
| replacement | |||||
|
1
|
1
73111-85201-5ES
PANEL, INSTRUMENT (BLACK)
BROWN:TYPE 2:LHD |
73111-85201-5ES |
— | ||
|
1
|
1
73111-85001-4FU
パネル,インストゥルメント(グレー)
GRAY:TYPE 1:RHD |
73111-85001-4FU |
— | ||
| replacement | |||||
|
1
|
1
73111-85001-5ES
PANEL,INSTRUMENT
GRAY:TYPE 1:RHD |
73111-85001-5ES |
— | ||
|
1
|
1
73111-85001-5CW
パネル,インストゥルメント(ブラウン)
BROWN:TYPE 2:RHD |
73111-85001-5CW |
— | ||
| replacement | |||||
|
1
|
1
73111-85001-5ES
PANEL,INSTRUMENT
BROWN:TYPE 2:RHD |
73111-85001-5ES |
— | ||
|
1
|
1
73111-85211-4FU
Panel, instrument
GRAY,Israel |
73111-85211-4FU |
— | ||
|
2
|
2
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
2
|
2
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
3
|
3
62381-79000-000 NUT,INSTRUMENT PANEL SUPPORT |
62381-79000-000 |
US $1.10 |
||
|
4
|
4
73410-85001-4FU
リッド,グローブボックス(ベージュ)
GRAY |
73410-85001-4FU |
— | ||
| replacement | |||||
|
4
|
4
73410-85002-5ES LID,GLOVE BOXGRAY |
73410-85002-5ES |
US $40 |
||
|
4
|
4
73410-85002-000
Lid, glove box
DA11T-100307~ DA11V-100305~,JSAEDA11T00100056~,JSAEDA11V00100469~ |
73410-85002-000 |
— | ||
|
4
|
4
73410-85210-4FU
Lid, glove box
Israel |
73410-85210-4FU |
— | ||
|
4
|
4
73410-85211-4FU
Lid, glove box
Israel DA11T-100307~ DA11V-100305~,JSAEDA11T00100056->,JSAEDA11V00100469~ |
73410-85211-4FU |
— | ||
|
5
|
5
73415-85001-281
Lock, glove box lid
BLACK |
73415-85001-281 |
— | ||
| replacements | |||||
|
5
|
5
73415-85002-5PK
LOCK,GLOVE BOX LID
BLACK |
73415-85002-5PK |
— | ||
|
5
|
5
73416-85000-000 KNOB,GLOVE BOXBLACK |
73416-85000-000 |
US $2.98 |
||
|
5
|
5
73415-85002-000 ロック,グローブボックスリッドBLACK |
73415-85002-000 |
US $2.72 |
||
|
6
|
6
73415-85002-281
Lock, glove box lid
BLACK,DA11T-100307~ DA11V-100305~,JSAEDA11T00100056~,JSAEDA11V00100469~ |
73415-85002-281 |
— | ||
| replacements | |||||
|
6
|
6
73415-85002-5PK
LOCK,GLOVE BOX LID
BLACK,DA11T-100307~ DA11V-100305~,JSAEDA11T00100056~,JSAEDA11V00100469~ |
73415-85002-5PK |
— | ||
|
6
|
6
73415-85002-000 ロック,グローブボックスリッドBLACK,DA11T-100307~ DA11V-100305~,JSAEDA11T00100056~,JSAEDA11V00100469~ |
73415-85002-000 |
US $2.72 |
||
|
6
|
6
73415-85002-5CW
Lock, glove box lid
BROWN,TYPE 2 |
73415-85002-5CW |
— | ||
|
7
|
7
73416-85000-000 KNOB,GLOVE BOXDA11T-100307~ DA11V-100305~,JSAEDA11T00100056~,JSAEDA11V00100469~ |
73416-85000-000 |
US $2.98 |
||
|
8
|
8
03231-04125-000
スクリュ
|
03231-04125-000 |
— | ||
| replacement | |||||
|
8
|
8
03221-0412A-000 SCREW |
03221-0412A-000 |
US $10.30 |
||
|
9
|
9
73421-85001-000 PIN,GLOVE BOX LID HINGE |
73421-85001-000 |
US $2.13 |
||
|
10
|
10
73811-85000-4FU
キャップ,インストゥルメントパネル(グレー)
GRAY,TYPE 1 |
73811-85000-4FU |
— | ||
| replacement | |||||
|
10
|
10
73811-85000-5RT
CAP,INSTPNL
GRAY,TYPE 1 |
73811-85000-5RT |
— | ||
|
10
|
10
73811-85000-5CW
キャップ,パネル(ブラウン)
BROWN,TYPE 2 |
73811-85000-5CW |
— | ||
| replacement | |||||
|
10
|
10
73811-85000-5RT
CAP,INSTPNL
BROWN,TYPE 2 |
73811-85000-5RT |
— | ||
|
11
|
11
74451-85000-000 PANEL,HEATER CONTROLW/HEATER,W/AIR CON |
74451-85000-000 |
US $11.37 |
||
|
11
|
11
74451-85200-000 PANEL,HEATER CONTROLN/HEATER,N/AIR CON |
74451-85200-000 |
US $11.37 |
||
|
11
|
11
74451-85220-000 PANEL,HEATER CONTROLN/HEATER,W/AIR CON |
74451-85220-000 |
US $11.37 |
||
|
12
|
12
89810-85000-4FU
アッシュトレー,フロント(グレー)
GRAY,TYPE 1 |
89810-85000-4FU |
— | ||
| replacements | |||||
|
12
|
12
89810-85000-5RT
ASHTRAY,FR
GRAY,TYPE 1 |
89810-85000-5RT |
— | ||
|
12
|
12
89810-85000-5ES ASHTRAY,FRGRAY,TYPE 1 |
89810-85000-5ES |
US $47.12 |
||
|
12
|
12
89810-85000-5CW ASHTRAY,FRBROWN,TYPE 2 |
89810-85000-5CW |
US $32.75 |
||
|
13
|
13
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
14
|
14
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
15
|
15
89821-85200-000
STAY,ASHTRAY
N/HEATER |
89821-85200-000 |
— | ||
|
16
|
16
02142-05124-000
Screw
N/HEATER |
02142-05124-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0512A-000 SCREWScrew, lower N/HEATER |
02142-0512A-000 |
from US $0.80 |
||
|
17
|
17
02142-06125-000
Screw
N/HEATER |
02142-06125-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0612B-000 SCREWN/HEATER |
02142-0612B-000 |
from US $0.76 |
||
|
17
|
17
02142-0612A-000 SCREWN/HEATER |
02142-0612A-000 |
from US $0.80 |
||
|
18
|
18
65931-85200-000
Cover, htr control box hole
W/HEATER |
65931-85200-000 |
— | ||
|
18
|
18
65931-85210-000 COVER,HEATER CONTROL BOX HOLEN/HEATER |
65931-85210-000 |
US $7.88 |
||
|
19
|
19
02142-06108-000
6 x 10 screw
N/HEATER |
02142-06108-000 |
— | ||
| replacement | |||||
|
19
|
19
02142-06107-000 SCREWN/HEATER |
02142-06107-000 |
from US $0.80 |
||
|
20
|
20
73310-85000-281
Panel, meter cluster
|
73310-85000-281 |
— | ||
| replacement | |||||
|
20
|
20
73310-85000-5PK PANEL,METER CLUSTER |
73310-85000-5PK |
US $48.80 |
||
|
21
|
21
03232-05165-000
Screw 5x16
|
03232-05165-000 |
— | ||
| replacement | |||||
|
21
|
21
03222-0516B-000 Bolt |
03222-0516B-000 |
US $14.40 |
||
|
22
|
22
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
23
|
23
75811-85000-4FU
ボックス,センタコンソール(グレー)
GRAY,TYPE 1 |
75811-85000-4FU |
— | ||
| replacement | |||||
|
23
|
23
75811-85000-5RT
BOX,CENTER CONSOLE
GRAY,TYPE 1 |
75811-85000-5RT |
— | ||
|
23
|
23
75811-85000-5CW
ボックス,センタコンソール(ブラウン)
BROWN,TYPE 2 |
75811-85000-5CW |
— | ||
| replacement | |||||
|
23
|
23
75811-85000-5RT
BOX,CENTER CONSOLE
BROWN,TYPE 2 |
75811-85000-5RT |
— | ||
|
24
|
24
75811-85400-4FU
ボックス,センタコンソール
GRAY,TYPE 1:,,Finland,Norway,Switzerland,Belgium,5,Israel,Iceland |
75811-85400-4FU |
— | ||
| replacement | |||||
|
24
|
24
75811-85400-5RT
BOX,CENTER CONSOLE
GRAY,TYPE 1:,,Finland,Norway,Switzerland,Belgium,5,Israel,Iceland |
75811-85400-5RT |
— | ||
|
24
|
24
75811-85400-5CW
Box, center console
BROWN,TYPE 2:Finland,Belgium,Holland |
75811-85400-5CW |
— | ||
|
25
|
25
75812-85000-4FU
リッド,センタコンソールボックス(グレー)
GRAY,TYPE 1 |
75812-85000-4FU |
— | ||
| replacement | |||||
|
25
|
25
75812-85000-5RT
LID,CTR CONSOLE BOX
GRAY,TYPE 1 |
75812-85000-5RT |
— | ||
|
25
|
25
75812-85000-5CW
リッド,センタコンソールボックス(ブラウン)
BROWN,TYPE 2 |
75812-85000-5CW |
— | ||
| replacement | |||||
|
25
|
25
75812-85000-5RT
LID,CTR CONSOLE BOX
BROWN,TYPE 2 |
75812-85000-5RT |
— | ||
|
26
|
26
75812-85400-4FU
カバー,トランスファコントロールレバー,NO.1
GRAY,TYPE 1:,,Finland,Switzerland,Belgium,5,Israel,Iceland |
75812-85400-4FU |
— | ||
|
26
|
26
75812-85400-5CW
Lid, center console box
BROWN,TYPE 2:Finland,Belgium,Holland |
75812-85400-5CW |
— | ||
|
27
|
27
75812-85221-4FU
Cover, box
GRAY,TYPE 1:,,Finland,Norway,Switzerland,Belgium,5,Israel,Iceland |
75812-85221-4FU |
— | ||
|
27
|
27
75812-85521-5CW
Cover, box
BROWN,TYPE 2:,,Finland,Norway,Switzerland,Belgium,5,Israel,Iceland |
75812-85521-5CW |
— | ||
|
28
|
28
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
28
|
28
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
29
|
29
03141-06165-000
スクリュ
|
03141-06165-000 |
— | ||
| replacement | |||||
|
29
|
29
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
30
|
30
03541-06165-000
スクリュ
,,Finland,,Switzerland,Belgium,5,Israel,Iceland |
03541-06165-000 |
— | ||
| replacement | |||||
|
30
|
30
03541-0616A-000 SCREW,,Finland,,Switzerland,Belgium,5,Israel,Iceland |
03541-0616A-000 |
from US $0.64 |
||
|
31
|
31
73630-85000-281
Box,headlamp housing
W/HEATER |
73630-85000-281 |
— | ||
|
31
|
31
73630-85200-281
Box, headlamp housing
N/HEATER |
73630-85200-281 |
— | ||
| replacement | |||||
|
31
|
31
73630-85200-5PK BOX,HEADLAMP HOUSINGN/HEATER |
73630-85200-5PK |
US $34.96 |
||
|
32
|
32
73632-85000-000
PAD,HEADLAMP HOUSING BOX
|
73632-85000-000 |
— | ||
|
33
|
33
03241-04125-000
Screw
|
03241-04125-000 |
— | ||
| replacement | |||||
|
33
|
33
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
|
34
|
34
73510-85210-4FU
Pad, instrument
Israel |
73510-85210-4FU |
— | ||
