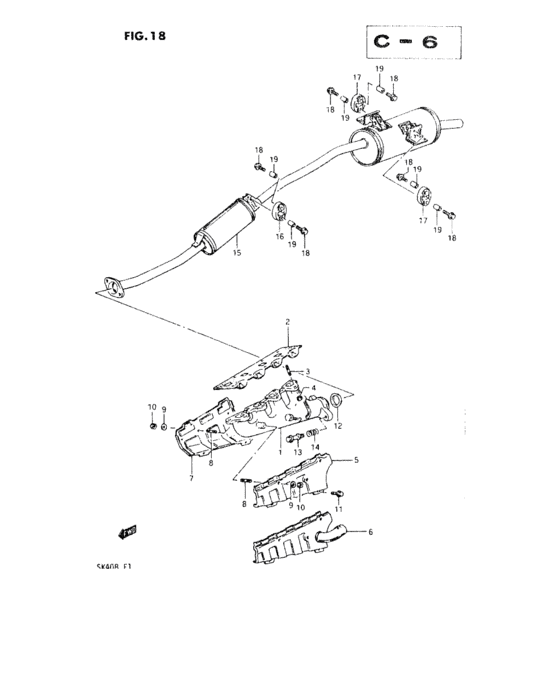

Muffler (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-85200-000
Manifold, exhaust
|
14111-85200-000 |
— | ||
|
2
|
2
14140-79200-000
Gasket
|
14140-79200-000 |
— | ||
| replacement | |||||
|
2
|
2
14140-85200-000 GASKET,EXH MANF |
14140-85200-000 |
US $20 |
||
|
3
|
3
01411-08253-000
New Genuine Part
|
01411-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0825A-000 BOLT,STUD |
01411-0825A-000 |
US $1.12 |
||
|
4
|
4
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
4
|
4
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
5
|
5
14121-85200-000
Cover, upper
N/WARM AIR |
14121-85200-000 |
— | ||
| replacement | |||||
|
5
|
5
14120-85220-000
COVER,EXH MANIFOLD
N/WARM AIR |
14120-85220-000 |
— | ||
|
6
|
6
14120-85210-000
Cover, upper
W/WARM AIR |
14120-85210-000 |
— | ||
| replacement | |||||
|
6
|
6
14120-85220-000
COVER,EXH MANIFOLD
W/WARM AIR |
14120-85220-000 |
— | ||
|
7
|
7
14125-85201-000
COVER,LOWER
<-14125-85200 |
14125-85201-000 |
— | ||
|
8
|
8
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
8
|
8
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
9
|
9
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
10
|
10
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
10
|
10
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
10
|
10
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
11
|
11
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
11
|
11
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
12
|
12
14183-82000-000
リング,シール
|
14183-82000-000 |
— | ||
| replacement | |||||
|
12
|
12
14183-820V0-000 RING,SEAL EXH PIPE |
14183-820V0-000 |
US $35.20 |
||
|
13
|
13
09119-10039-000
Bolt
|
09119-10039-000 |
— | ||
| replacement | |||||
|
13
|
13
14493-76G01-000 BOLT,EXH PIPE |
14493-76G01-000 |
from US $3.04 |
||
|
14
|
14
14492-82001-000 SPRING,EXH PIPE |
14492-82001-000 |
US $16.80 |
||
|
15
|
15
14300-85700-000
Muffler
|
14300-85700-000 |
— | ||
|
16
|
16
14282-78010-000
マウンチング,マフラ
|
14282-78010-000 |
— | ||
| replacement | |||||
|
16
|
16
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.78 |
||
|
17
|
17
14281-79010-000
Mounting, muffler
|
14281-79010-000 |
— | ||
| replacement | |||||
|
17
|
17
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.78 |
||
|
18
|
18
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
18
|
18
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
19
|
19
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
19
|
19
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
