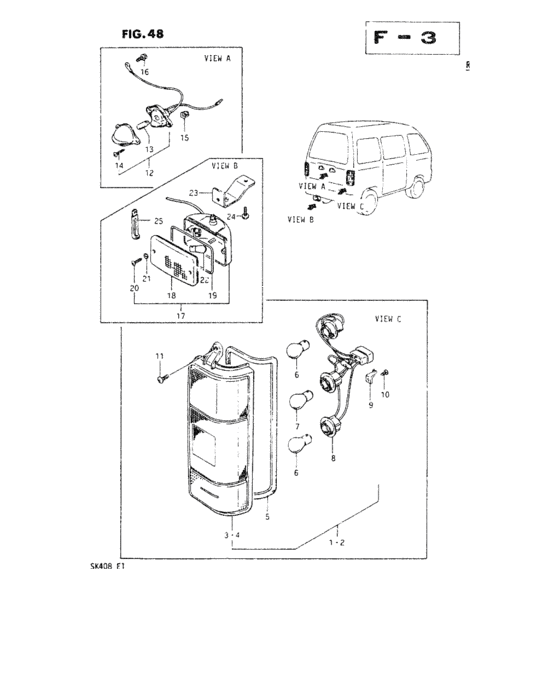

Rear lamp (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35603-85500-000
Lamp assy, combination rh
|
35603-85500-000 |
— | ||
|
1
|
1
35603-85510-000
Lamp assy, combination rh
,,Finland,Norway,Switzerland,Belgium,5,Israel |
35603-85510-000 |
— | ||
|
2
|
2
35604-85500-000
Lamp assy, combination lh
|
35604-85500-000 |
— | ||
|
2
|
2
35604-85510-000
Lamp assy, combination lh
,,Finland,Norway,Switzerland,Belgium,5,Israel |
35604-85510-000 |
— | ||
|
3
|
3
35650-85500-000
Unit, combination lamp rh
|
35650-85500-000 |
— | ||
| replacement | |||||
|
3
|
3
35650-85511-000 LAMP ASSY,RR COMB,R |
35650-85511-000 |
US $264 |
||
|
3
|
3
35650-85510-000
Unit, combination lamp rh
,,Finland,Norway,Switzerland,Belgium,5,Israel |
35650-85510-000 |
— | ||
| replacement | |||||
|
3
|
3
35650-85511-000 LAMP ASSY,RR COMB,R,,Finland,Norway,Switzerland,Belgium,5,Israel |
35650-85511-000 |
US $264 |
||
|
4
|
4
35670-85500-000
Unit, combination lamp lh
|
35670-85500-000 |
— | ||
| replacement | |||||
|
4
|
4
35670-85511-000 LAMP ASSY,RR COMB,L |
35670-85511-000 |
US $264 |
||
|
4
|
4
35670-85510-000
Unit, combination lamp lh
,,Finland,Norway,Switzerland,Belgium,5,Israel |
35670-85510-000 |
— | ||
| replacement | |||||
|
4
|
4
35670-85511-000 LAMP ASSY,RR COMB,L,,Finland,Norway,Switzerland,Belgium,5,Israel |
35670-85511-000 |
US $264 |
||
|
5
|
5
35653-85500-000 GASKET,BASE |
35653-85500-000 |
US $17.60 |
||
|
6
|
6
09471-12056-000
Bulb (12v, 21w)
|
09471-12056-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $2.54 |
||
|
6
|
6
09471-12045-000 BULB(12V21W),,Finland,Norway,Switzerland,Belgium,5,Israel |
09471-12045-000 |
from US $2.54 |
||
|
7
|
7
09471-12057-000
Bulb (12v, 21/5w)
|
09471-12057-000 |
— | ||
| replacements | |||||
|
7
|
7
09471-12128-000 BULB(12V21/5W,BF141-49642A) |
09471-12128-000 |
from US $7.20 |
||
|
7
|
7
09471-12083-000 BULB(12V21/5W) |
09471-12083-000 |
from US $4.75 |
||
|
7
|
7
09471-12046-000 BULB(12V21/5W),,Finland,Norway,Switzerland,Belgium,5,Israel |
09471-12046-000 |
from US $4.15 |
||
| replacement | |||||
|
7
|
7
09471-12128-000 BULB(12V21/5W,BF141-49642A),,Finland,Norway,Switzerland,Belgium,5,Israel |
09471-12128-000 |
from US $7.20 |
||
|
8
|
8
35658-85500-000 SOCKET |
35658-85500-000 |
US $76.54 |
||
|
8
|
8
35658-85510-000
Socket
,,Finland,Switzerland,Belgium,5,Israel |
35658-85510-000 |
— | ||
| replacement | |||||
|
8
|
8
35658-85512-000 SOCKET&CORD ASSY,,Finland,Switzerland,Belgium,5,Israel |
35658-85512-000 |
US $38.64 |
||
|
9
|
9
35659-85500-000
ステー
|
35659-85500-000 |
— | ||
|
10
|
10
03211-04106-000
スクリュ
|
03211-04106-000 |
— | ||
| replacements | |||||
|
10
|
10
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
10
|
10
03211-0410A-000 SCREW |
03211-0410A-000 |
from US $1.31 |
||
|
11
|
11
02142-05124-000
Screw
|
02142-05124-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
12
|
12
35910-80001-000
ランプアッシ,ライセンス(グレー)
|
35910-80001-000 |
— | ||
| replacement | |||||
|
12
|
12
35910-80011-000 Lamp assy,license |
35910-80011-000 |
US $29.60 |
||
|
12
|
12
35910-80011-000 Lamp assy,license,,Finland,Norway,Switzerland,Belgium,5,Israel |
35910-80011-000 |
US $29.60 |
||
|
13
|
13
09471-12076-000
Bulb (12v,5w)
|
09471-12076-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
13
|
13
09471-12081-000
Bulb (12v,5w)
,,Finland,Norway,Switzerland,Belgium,5,Israel |
09471-12081-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) ,,Finland,Norway,Switzerland,Belgium,5,Israel |
09471-12216-000 |
from US $2.84 |
||
|
14
|
14
03111-04165-000
Screw
|
03111-04165-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0416A-000 SCREW |
03111-0416A-000 |
US $0.80 |
||
|
15
|
15
09148-04021-000 NUT |
09148-04021-000 |
from US $0.96 |
||
|
16
|
16
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
17
|
17
36570-79000-000
LAMP ASSY,RR FOG
,Switzerland,Belgium,5,Israel |
36570-79000-000 |
— | ||
|
18
|
18
36572-79000-000
LENS
,Switzerland,Belgium,5,Israel |
36572-79000-000 |
— | ||
|
19
|
19
36573-79000-000 GASKET,Switzerland,Belgium,5,Israel |
36573-79000-000 |
US $2.17 |
||
|
20
|
20
03212-04169-000 SCREWScrew ,Switzerland,Belgium,5,Israel |
03212-04169-000 |
from US $2.13 |
||
|
21
|
21
35129-04030-000 WASHER,Switzerland,Belgium,5,Israel |
35129-04030-000 |
US $1.18 |
||
|
22
|
22
09471-12064-000
Bulb (12v,23/8w)
,Switzerland,Belgium,5,Israel |
09471-12064-000 |
— | ||
| replacement | |||||
|
22
|
22
09471-12045-000 BULB(12V21W),Switzerland,Belgium,5,Israel |
09471-12045-000 |
from US $2.54 |
||
|
23
|
23
36758-85000-000
BRACKET,RR FOG LAMP
LOW FLOOR ,Switzerland,Belgium,5,Israel |
36758-85000-000 |
— | ||
|
24
|
24
02142-06163-000
Screw
LOW FLOOR ,Switzerland,Belgium,5,Israel |
02142-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
02142-0616A-000 SCREWLOW FLOOR ,Switzerland,Belgium,5,Israel |
02142-0616A-000 |
from US $0.76 |
||
|
25
|
25
09404-06404-000
Clamp, fuel hose
LOW FLOOR ,Switzerland,Belgium,5,Israel |
09404-06404-000 |
— | ||
| replacements | |||||
|
25
|
25
09404-06434-000
CLAMP(L:80 T:1.0)
LOW FLOOR ,Switzerland,Belgium,5,Israel |
09404-06434-000 |
— | ||
|
25
|
25
09404-06433-000
CLAMP(L:80)
LOW FLOOR ,Switzerland,Belgium,5,Israel |
09404-06433-000 |
— | ||
|
25
|
25
09404-06436-000 Clamp(L:80)LOW FLOOR ,Switzerland,Belgium,5,Israel |
09404-06436-000 |
from US $2.13 |
||
|
25
|
25
09404-06036-000 Clamp(L:80)LOW FLOOR ,Switzerland,Belgium,5,Israel |
09404-06036-000 |
from US $1.82 |
||
